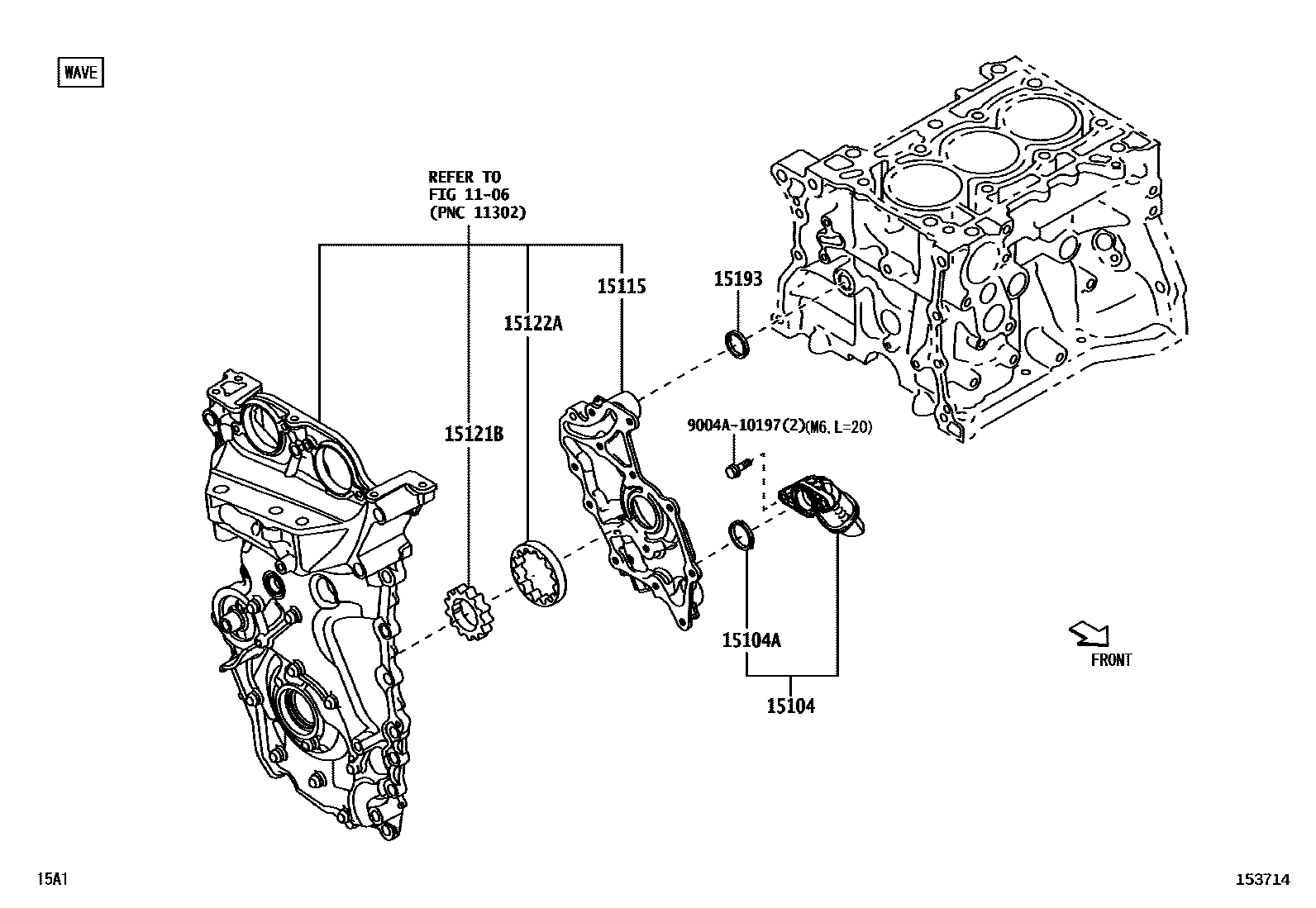

ENGINE OIL PUMP

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-BZ020i1KRVE..A350202306

main15104-BZ070iWAVE..A351202303

15104ARING, O(FOR OIL STRAINER)

main9004A-30056iWAVE..A351202303

15115COVER, OIL PUMP

main15120-BZ020iWAVE..A351202303

15121GEAR, OIL PUMP DRIVE

main15121-BZ030i1KRVE..A350202306

15121BROTOR, OIL PUMP DRIVE

main15121-BZ050iWAVE..A351202303

15122GEAR, OIL PUMP DRIVEN

main15122-BZ030i1KRVE..A350202306

15122AROTOR, OIL PUMP DRIVEN

main15122-BZ050iWAVE..A351202303

15193GASKET, OIL PUMP

main15119-BZ010iWAVE..A351202303

main15193-BZ011i1KRVE..A350202306

9004A10197

main9004A-10197

10 parts on this diagram · 2 diagrams in section
