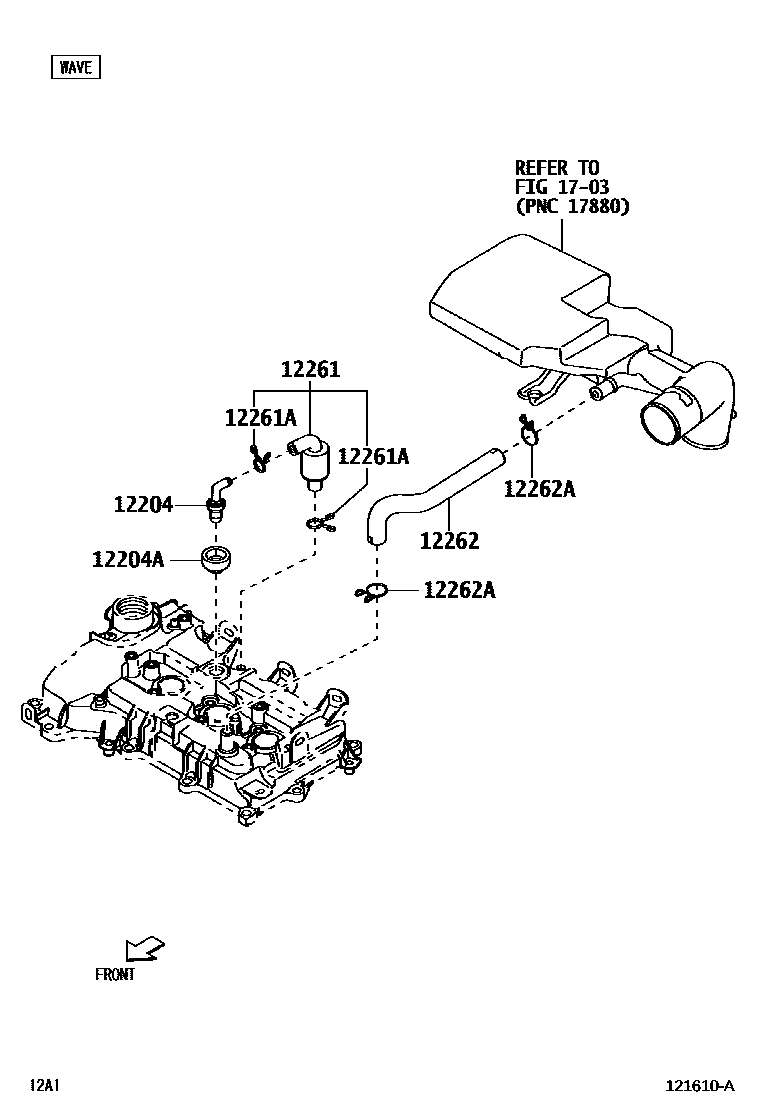

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-BZ020i1KRVE..A350202306

main12204-BZ060iWAVE..A351202303

12204AGROMMET(FOR VENTILATION SYSTEM)

main9004A-48055i1KRVE..A350202306

main90480-18016iWAVE..A351202303

12261HOSE, VENTILATION

main12261-40051iWAVE..A351..GEN202303

main12261-BZ170i1KRVE..A350202306

main12261-BZ300iWAVE..A351..IDN202303

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main9004A-46401×2iWAVE..A351..IDN202303

main90467-14001×2i1KRVE..A350202306

main90467-15120×2iWAVE..A351..GEN202303

12262HOSE, VENTILATION, NO.2

main12262-BZ100i1KRVE..A350202306

main12262-BZ200iWAVE..A351202303

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90044-67649×2iWAVE..A351202303

main90466-T0020×2i1KRVE..A350202306

1703AIR CLEANER

→ Go to FIG 17-03

7 parts on this diagram · 2 diagrams in section
