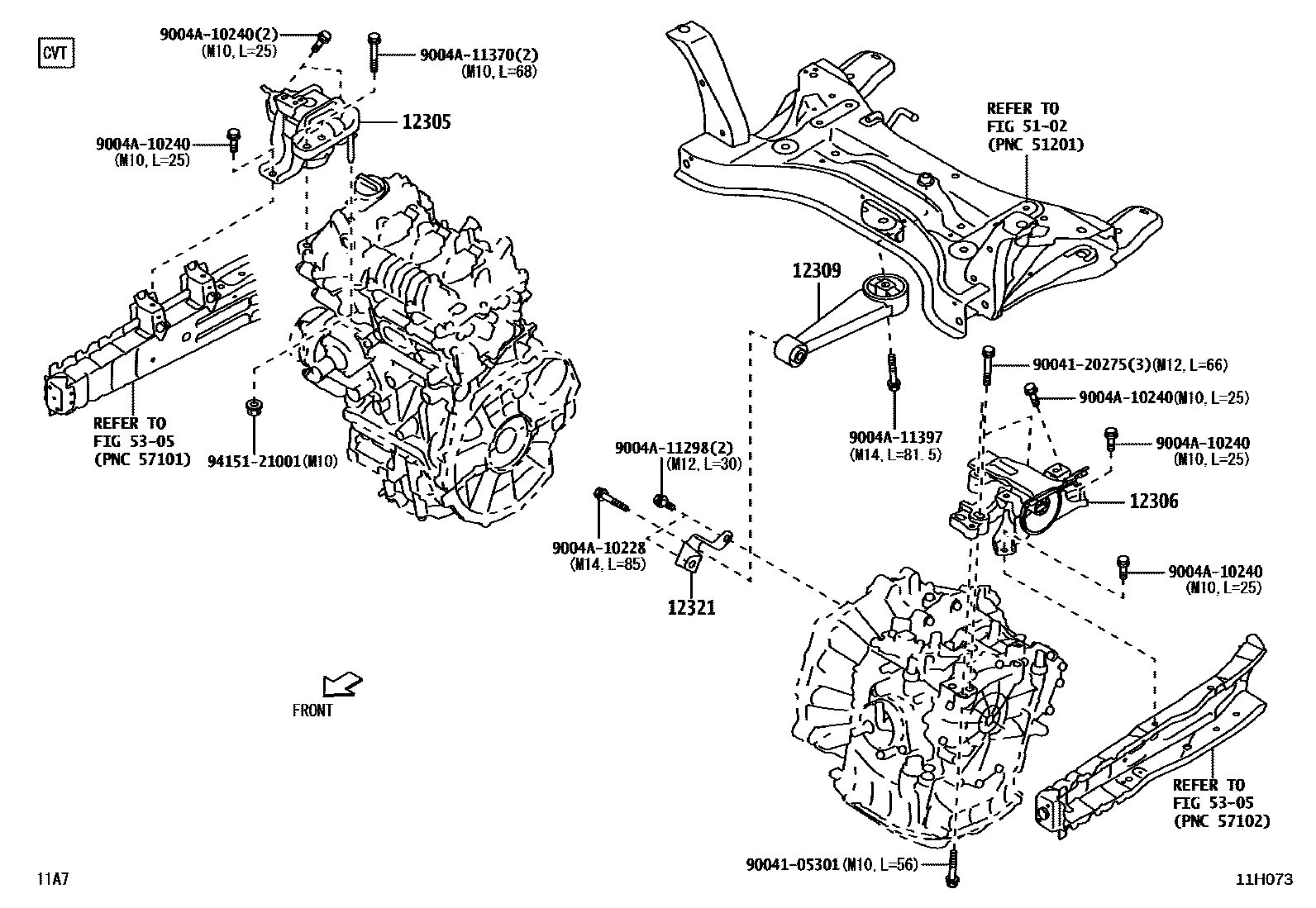

MOUNTING

0001 1 0003 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-BZ120iWAVE..A351..CVT202303

main12305-BZ320iWAVE..A351..5F202303

main12305-BZ430i1KRVE..A350..CVT202306

main12305-BZ440i1KRVE..A350..5F202306

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-BZ320i1KRVE..A350..CVT202306

main12306-BZ340iWAVE..A351..CVT202303

main12306-BZ350iWAVE..A351..5F202303

main12306-BZ460i1KRVE..A350..5F202306

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-BZ120iWAVE..A351..CVT202303

main12309-BZ270iWAVE..A351..5F202303

main12309-BZ350i1KRVE..A350..CVT202306

main12309-BZ360i1KRVE..A350..5F202306

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-BZ360iWAVE,1KRVE..A35#202303

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9004105301

main90041-05301

9004120275

main90041-20275

9004A10228

main9004A-10228

9004A10240

main9004A-10240

9004A11298

main9004A-11298

9004A11370

main9004A-11370

9004A11397

main9004A-11397

9415121001

main94151-21001

14 parts on this diagram · 2 diagrams in section
