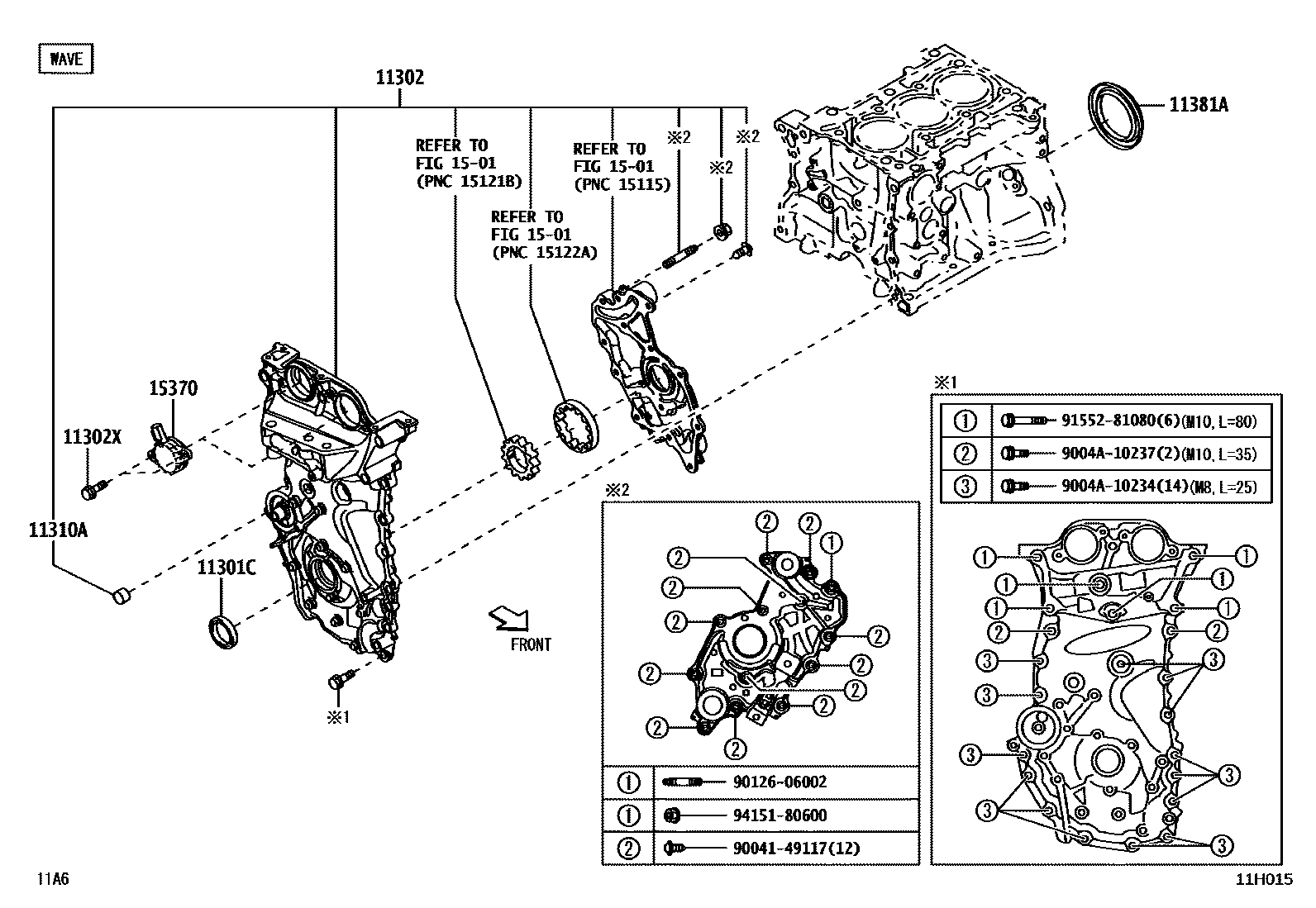

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main9004A-31066iWAVE..A351202303

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-BZ220iWAVE..A351202303

main11310-BZ230i1KRVE..A350202306

11302XBOLT, FLANGE

main9004A-10181×4iWAVE..A351202303

M6,L=16

11310APLUG, TAPER SCREW(FOR TIMING CHAIN COVER)

main90043-44022iWAVE..A351202303

11381RETAINER, ENGINE REAR OIL SEAL

main11381-BZ060i1KRVE..A350202306

11381ASEAL, ENGINE REAR OIL

main9004A-31064i1KRVE..A350202306

main9004A-31067iWAVE..A351202303

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-B1010×2iWAVE..A351202303

9004149117

main90041-49117

9004A10234

main9004A-10234

9004A10237

main9004A-10237

9012606002

main90126-06002

9155281080

main91552-81080

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
