Toyota ETIOS/LIVA/CROSS — WINDSHIELD WASHER

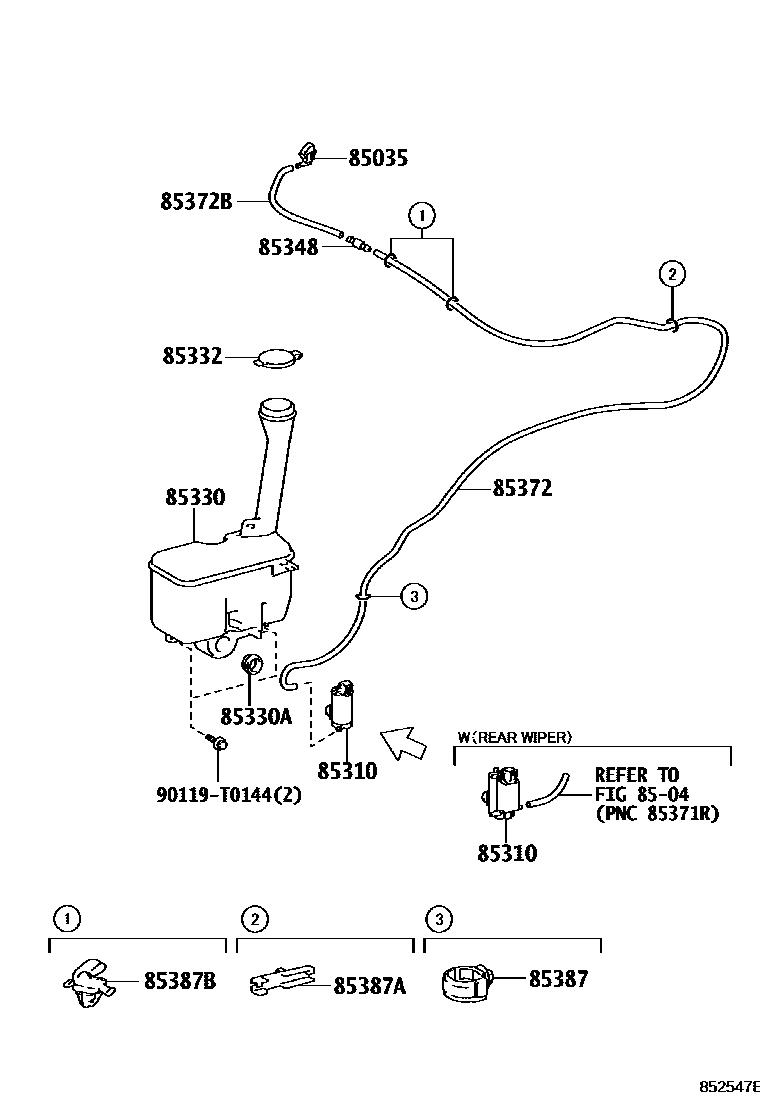

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

85330JAR ASSY, WINDSHIELD WASHER

85330ABUSH, WINDSHIELD WASHER JAR

85332CAP, WINDSHIELD WASHER JAR

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

85387ACLAMP, WASHER, NO.2

85387BCLAMP, WASHER, NO.3

90119T0144

13 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota ETIOS/LIVA/CROSS

This section contains 13 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota ETIOS/LIVA/CROSS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
