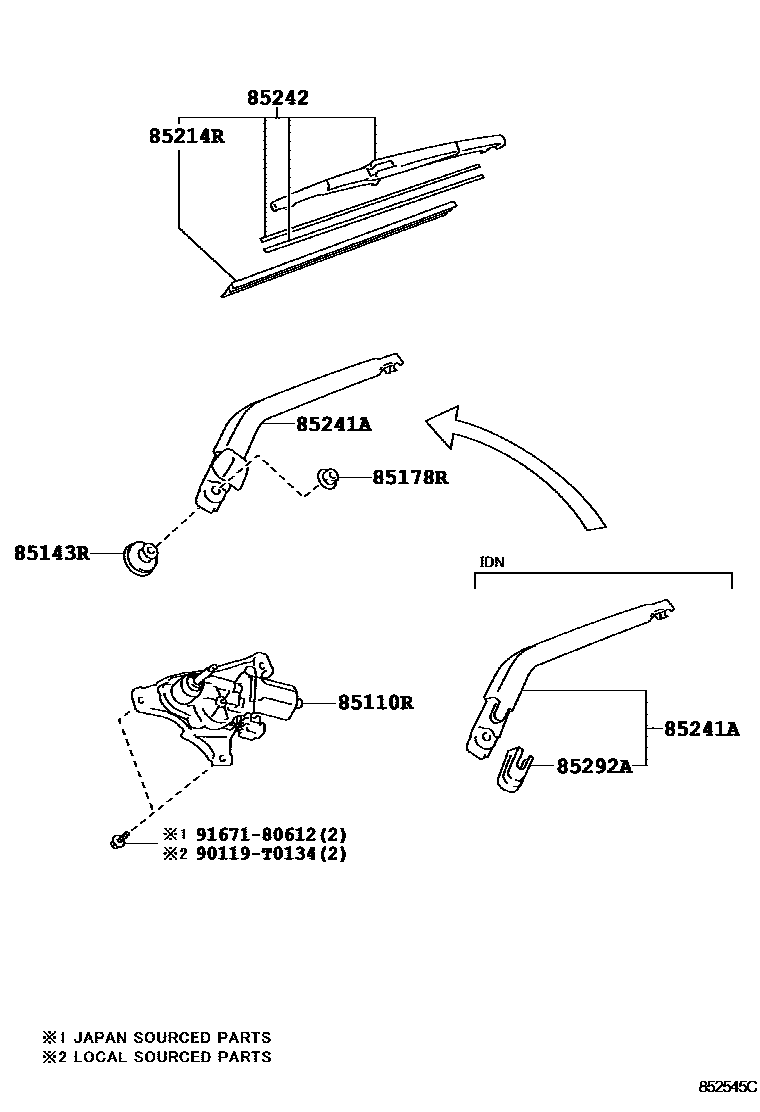

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0D060iNGK10..(G,V)..IDN201303

main85130-0D090iNGK10..V;NGK15..5D..G201012-201509

sub85130-0D091

main85130-0D091iNGK10,NUK10..G..IND201510

LUXURY PACKAGE(W(ABS & *ERCDM))

85143RGROMMET, REAR WIPER MOTOR

main85143-0D040iNGK10..V;NGK15..5D..G201012-201504

main85143-52070iNGK10..(G,V)..IDN201303

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iNGK10..V201012-201302

main90182-T0005iNGK12..STD;NGK12..G..IND201203-201504

85214RRUBBER, REAR WIPER

main85214-0D360iNGK10..(G,V)..IDN201401

main85214-0K010iNGK10..(G,V)..IDN201303-201401

main85214-42040iNGK12..G..SA;NGK10,12,NUK10..(SUVG,SUVV,V)..(IND,SA)201012-201504

85241AARM, REAR WIPER

main85241-0D090iNGK10..(G,V)..IDN201303

main85241-52160iNGK12..G..SA;NGK10,12,NUK10..(SUVG,SUVV,V)..(IND,SA)201012-201504

85242BLADE, RR WIPER

main85242-0D100iNGK10..(G,V)..IDN201401

main85242-0K010iNGK10..(G,V)..IDN201303-201401

main85242-42030iNGK12..G..SA;NGK10,12,NUK10..(SUVG,SUVV,V)..(IND,SA)201012-201504

85292ACAP, REAR WIPER ARM HEAD

main85292-02030iNGK10..(G,V)..IDN201303

90119T0134

main90119-T0134

9167180612

main91671-80612

9 parts on this diagram · 1 diagram in section
