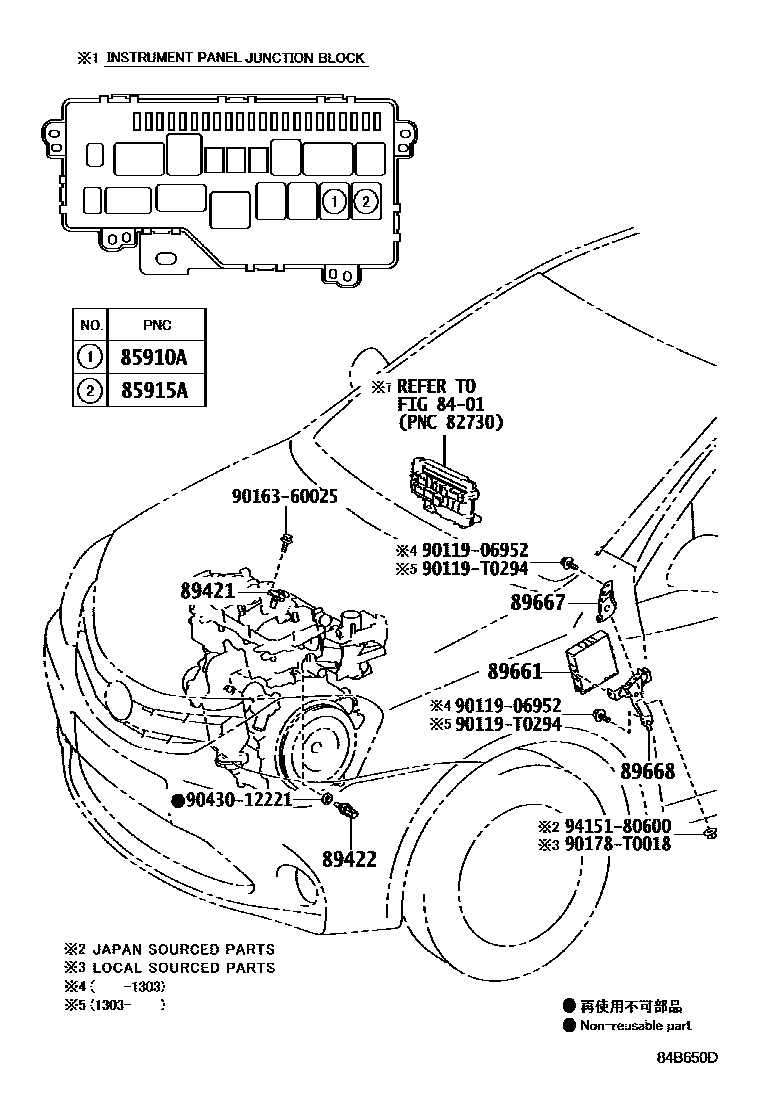

ELECTRONIC FUEL INJECTION SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iNGK10,15..G,STD,V201012-201712

(J)

main90987-T2001iNGK10,15..G,STD,V201012-201712

(L)

85915ARELAY, MAIN

main90987-02027iNGK10,15..G,STD,V201012-201712

(J)

main90987-T2001iNGK10,15..G,STD,V201012-201712

(L)

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-52010iNGK10,15..G,STD,V201012-201712

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNGK1#201012-201303

89661COMPUTER, ENGINE CONTROL

main89661-0DE20iNGK10201012-201212

main89661-0DE21iNGK10201301-201303

main89661-0DE30iNGK15..IND201012-201212

main89661-0DE31iNGK15..IND201301-201303

main89661-0DE40iNGK15..SA201203-201210

main89661-0DE41iNGK12,15..SA201303

main89661-0DJ30iNGK10..IDN201303-201401

main89661-0DM70iNGK10..IND201303-201509

main89661-0DM80iNGK12,15..IND201303-201509

main89661-0DS20iNGK10..IDN201401-201712

main89661-0DY40iNGK10..IND201510

main89661-0DY50iNGK12,15..IND201510

main89661-0DS60iNGK15..(G,STD)..IND201308-201504

INDONESIA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0D020iNGK1#201012-201303

main89667-0D210iNGK10..IDN201303

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0D030iNGK1#201012-201303

main89668-0D140iNGK10..IDN201303

9011906952

main90119-06952

90119T0294

main90119-T0294

9016360025

main90163-60025

90178T0018

main90178-T0018

9043012221

main90430-12221

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
