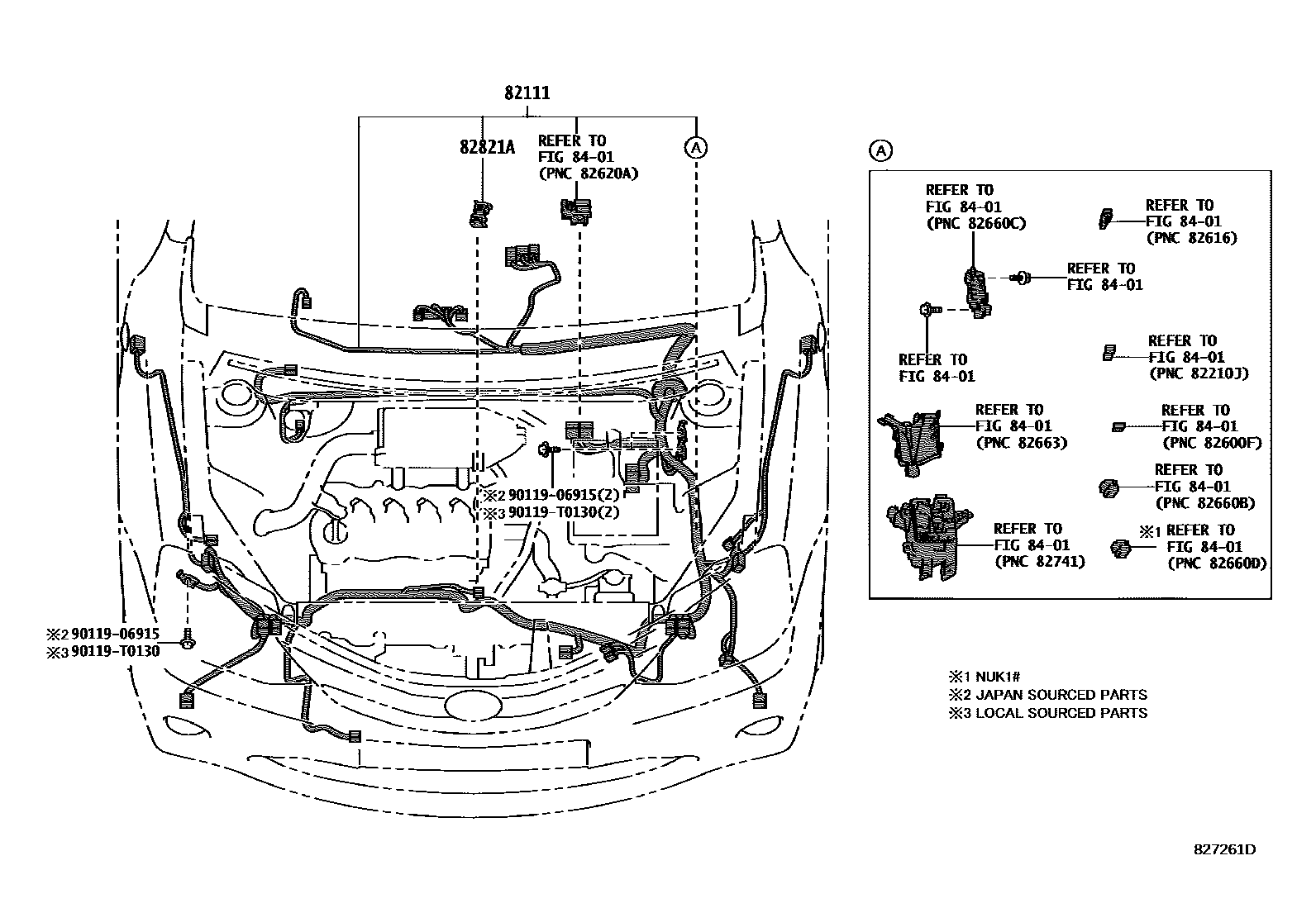

Toyota ETIOS/LIVA/CROSS — WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
82821ACOVER, CONNECTOR
8401SWITCH & RELAY & COMPUTER
9011906915
90119T0130
5 parts on this diagram · 9 diagrams in section
WIRING & CLAMP for Toyota ETIOS/LIVA/CROSS
This section contains 81 genuine Toyota parts for the WIRING & CLAMP system of the Toyota ETIOS/LIVA/CROSS. Key components include: CYLINDER HEAD, BATTERY & BATTERY CABLE, WIRE, ENGINE ROOM MAIN, WIRE, ENGINE, WIRE, INSTRUMENT PANEL.
