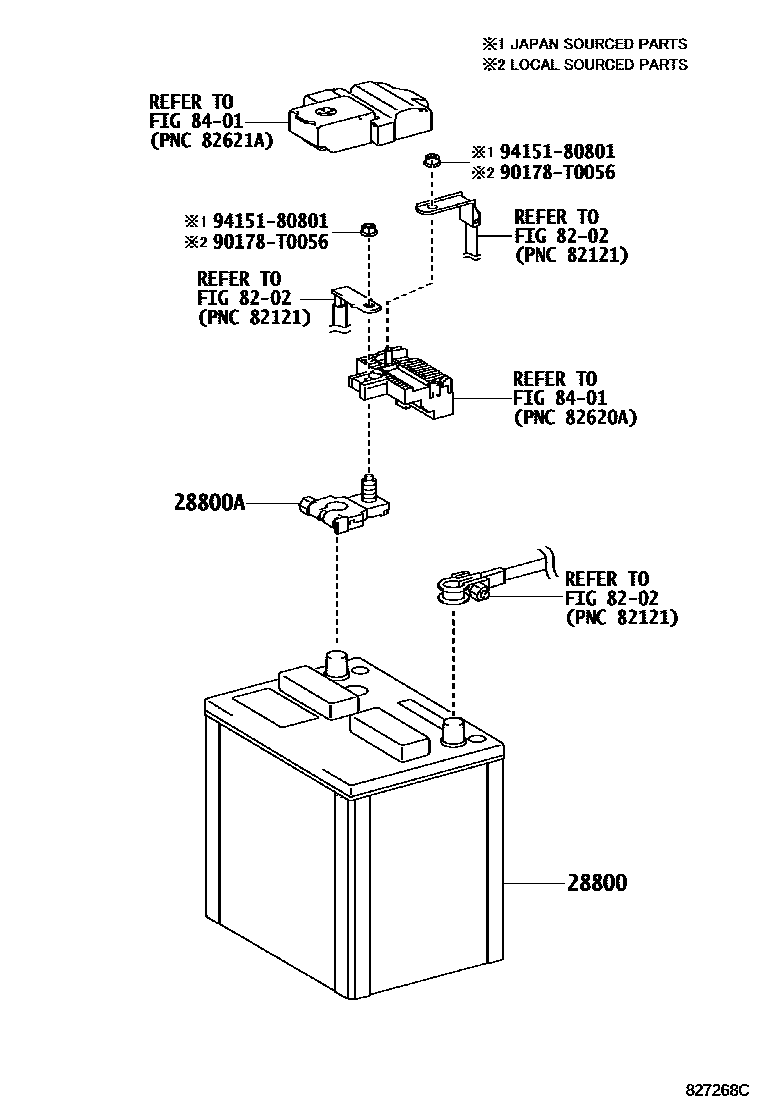

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0C060i3NRFE..NGK10..IDN201303-201712

34B19L(S)

28800ATERMINAL, BATTERY POSITIVE

main90982-05054supersedes 90982-05061i1NDTV..NUK10;1NDTV..NUK15..V; 1NDTV..NUK15..G201108-201202

SAFTY PACKAGE

main90982-05055i2NRFE..NGK15;3NRFE..NGK10..G,STD201012-201201

main90982-05061i2NRFE..NGK12,15..(G,STD)..SA201309

main90982-05063i3NRFE..NGK10..V201203-201303

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178T0056

main90178-T0056

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
