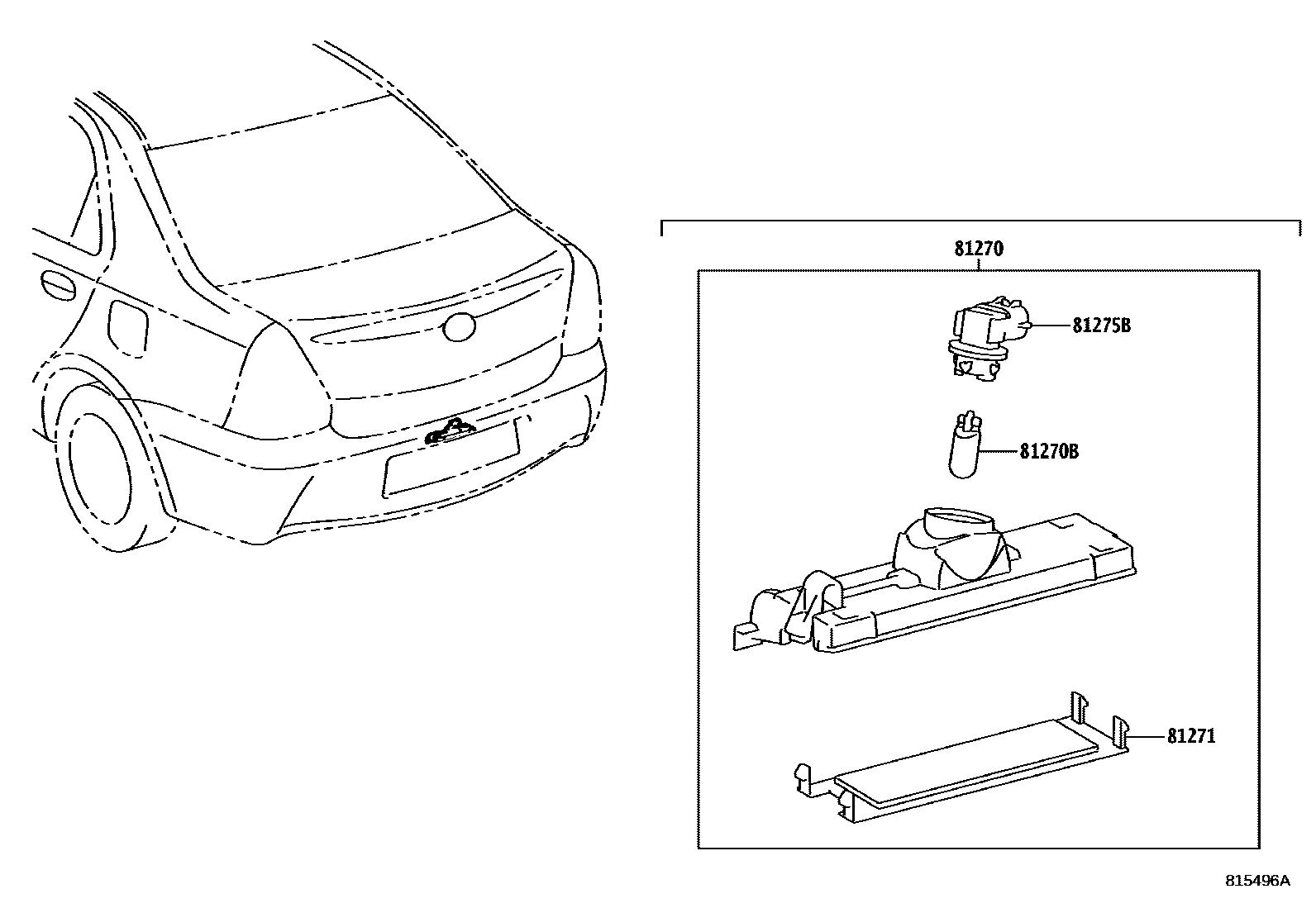

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-0D110iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201712

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iNGK1#,NUK1#201012-201303

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-0D110iNGK1#,NUK1#201012-201303

81275BSOCKET PLUG, LICENSE PLATE LAMP

main81278-0D110iNGK1#,NUK1#201012-201303

4 parts on this diagram · 1 diagram in section
