FRONT SEAT & SEAT TRACK

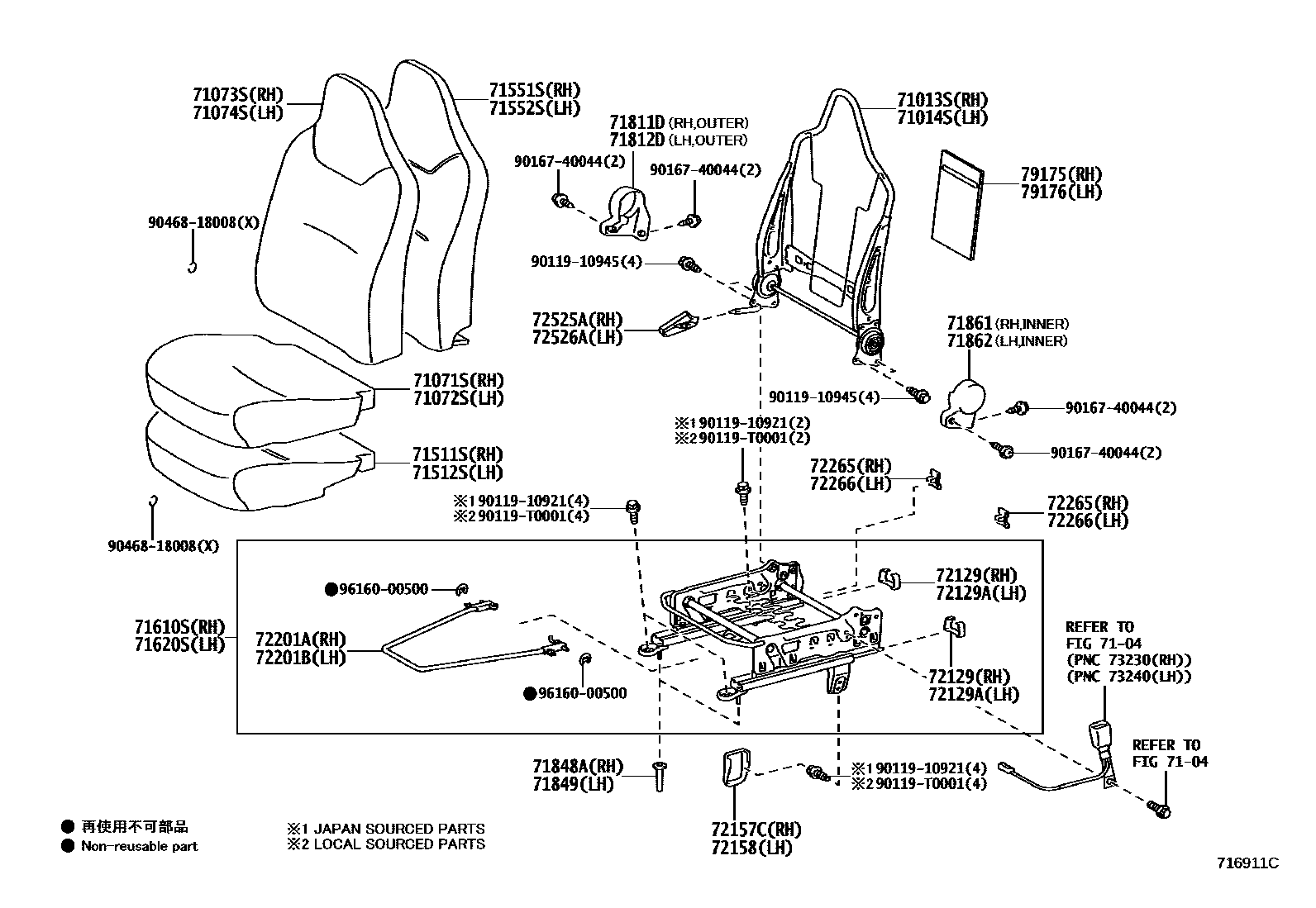

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-0D010i201012-201303
main71013-0D170i201303
main71013-0D190i201303
main71013-0D230i201501
main71013-0D340i201609
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-0D010i201303-201609
main71014-0D180i201303
main71014-0D200i201303
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-0D680-B1i201303-201609
GRAY,TRIM1#
main71071-0D690-B1i201012-201303
GRAY,TRIM1#
main71071-0DF20-A0i201503-201609
WHITE,TRIM1#
main71071-0DF20-A1i201609
WHITE,TRIM1#
main71071-0DG00-C0i201303-201501
BLACK,TRIM1#
main71071-0DG10-C0i201303-201501
BLACK,TRIM1#
main71071-0DG70-E1i201303-201401
GREGE,TRIM4#; SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#
main71071-0DG71-A0i201609
IVORY,TRIM0#
main71071-0DG71-E0i201401-201609
GREGE,TRIM4#
main71071-0DG71-E2i201609
GREGE,TRIM4#
main71071-0DG80-E0i201207-201303
GREGE,TRIM4#; SAFTY PACKAGE,GREGE,TRIM4#
main71071-0DK40-B0i201303-201609
GRAY,TRIM1#
main71071-0DK40-B1i201609
GRAY,TRIM1#
main71071-0DK70-C0i201404-201609
BLACK,TRIM2#
main71071-0DK70-C1i201609
BLACK,TRIM2#
main71071-0DL00-B0i201303-201609
GRAY,TRIM1#
main71071-0DS00-C0i201501-201712
BLACK,TRIM1#
main71071-0DS10-C0i201501-201712
BLACK,TRIM1#
main71071-0U250-B0i201609
GRAY,TRIM1#
main71071-0U260-B0i201609
GRAY,TRIM1#
main71071-0D780-B0i201112-201207
SEAT COVER MATERIAL-FABRIC(DECOCRE GRAY),GRAY,TRIM10; SEAT COVER MATERIAL-FABRIC(DECOCRE RED),GRAY,TRIM10
main71071-0D780-D0i201112-201207
SEAT COVER MATERIAL-FABRIC(DECOCRE GRAY),RED/GRAY,TRIM10; SEAT COVER MATERIAL-FABRIC(DECOCRE RED),RED/GRAY,TRIM10
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0D710-B1i201012-201303
GRAY,TRIM1#
main71072-0D730-B1i201012-201303
GRAY,TRIM1#
main71072-0DF60-A0i201503-201609
WHITE,TRIM1#
main71072-0DF60-A1i201609
WHITE,TRIM1#
main71072-0DG00-C0i201303-201712
BLACK,TRIM1#
main71072-0DG10-C0i201303-201712
BLACK,TRIM1#
main71072-0DG70-E0i201303-201401
GREGE,TRIM4#; SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#
main71072-0DG71-A0i201609
IVORY,TRIM0#
main71072-0DG71-E0i201401-201609
GREGE,TRIM4#
main71072-0DG71-E1i201609
GREGE,TRIM4#
main71072-0DG80-E0i201207-201303
GREGE,TRIM4#; SAFTY PACKAGE,GREGE,TRIM4#
main71072-0DK60-B0i201303-201401
GRAY,TRIM1#
main71072-0DK60-B1i201609
GRAY,TRIM1#
main71072-0DL10-C0i201404
BLACK,TRIM2#
main71072-0DL40-B0i201303-201609
GRAY,TRIM1#
main71072-0U200-B0i201609
GRAY,TRIM1#
main71072-0U210-B0i201609
GRAY,TRIM1#
main71072-0D820-B0i201112-201207
SEAT COVER MATERIAL-FABRIC(DECOCRE GRAY),GRAY,TRIM10; SEAT COVER MATERIAL-FABRIC(DECOCRE RED),GRAY,TRIM10
main71072-0D820-D0i201112-201207
SEAT COVER MATERIAL-FABRIC(DECOCRE GRAY),RED/GRAY,TRIM10; SEAT COVER MATERIAL-FABRIC(DECOCRE RED),RED/GRAY,TRIM10
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-0D540-B1i201012-201303
GRAY,TRIM1#
main71073-0D830-B1i201012-201303
GRAY,TRIM1#
main71073-0DG80-A0i201503-201609
WHITE,TRIM1#
main71073-0DG80-A1i201609
WHITE,TRIM1#
main71073-0DJ30-C1i201303-201501
BLACK,TRIM1#
main71073-0DJ40-C1i201303-201501
BLACK,TRIM1#
main71073-0DK00-E1i201303-201401
GREGE,TRIM4#; SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#
main71073-0DK01-E0i201401-201609
GREGE,TRIM4#
main71073-0DK10-E0i201207-201303
GREGE,TRIM4#; SAFTY PACKAGE,GREGE,TRIM4#
main71073-0DL80-B0i201303-201609
GRAY,TRIM1#
main71073-0DL90-C0i201404-201609
BLACK,TRIM2#
main71073-0DL90-C1i201609
BLACK,TRIM2#
main71073-0DM30-B0i201303-201609
GRAY,TRIM1#
main71073-0DU10-C0i201501-201712
BLACK,TRIM1#
main71073-0DU20-C0i201501-201712
BLACK,TRIM1#
main71073-0U340-B0i201609
GRAY,TRIM1#
main71073-0U350-B0i201609
GRAY,TRIM1#
main71073-0U360-B0i201609
GRAY,TRIM1#
main71073-0U370-A0i201609
IVORY,TRIM0#
main71073-0U370-E0i201609
GREGE,TRIM4#
main71073-0U380-C0i201609
BLACK,TRIM2#
main71073-0DA40-B0i201112-201207
SEAT COVER MATERIAL-FABRIC(DECOCRE GRAY),GRAY,TRIM10; SEAT COVER MATERIAL-FABRIC(DECOCRE RED),GRAY,TRIM10
main71073-0DA40-D0i201112-201207
SEAT COVER MATERIAL-FABRIC(DECOCRE GRAY),RED/GRAY,TRIM10; SEAT COVER MATERIAL-FABRIC(DECOCRE RED),RED/GRAY,TRIM10
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-0D540-B1i201303-201609
GRAY,TRIM1#
main71073-0D830-B1i201012-201303
GRAY,TRIM1#
main71073-0DJ30-C1i201303-201712
BLACK,TRIM1#
main71073-0DJ40-C1i201303-201712
BLACK,TRIM1#
main71073-0DK10-E0i201207-201303
GREGE,TRIM4#; SAFTY PACKAGE,GREGE,TRIM4#
main71073-0DM30-B0i201303-201609
GRAY,TRIM1#
main71074-0DD80-A0i201503-201609
WHITE,TRIM1#
main71074-0DD80-A1i201609
WHITE,TRIM1#
main71074-0DG30-E1i201303-201401
GREGE,TRIM4#; SAFETY PACKAGE(WITH ABS),GREGE,TRIM4#
main71074-0DG31-E0i201401-201609
GREGE,TRIM4#
main71074-0DG40-B0i201304-201609
GRAY,TRIM1#
main71074-0DG50-C0i201404-201609
BLACK,TRIM2#
main71074-0DG50-C1i201609
BLACK,TRIM2#
main71074-0DZ80-B0i201609
GRAY,TRIM1#
main71074-0DZ90-B0i201609
GRAY,TRIM1#
main71074-0U010-B0i201609
GRAY,TRIM1#
main71074-0U020-A0i201609
IVORY,TRIM0#
main71074-0U020-E0i201609
GREGE,TRIM4#
main71074-0U030-C0i201609
BLACK,TRIM2#
main71073-0DA40-B0i201112-201207
SEAT COVER MATERIAL-FABRIC(DECOCRE GRAY),GRAY,TRIM10; SEAT COVER MATERIAL-FABRIC(DECOCRE RED),GRAY,TRIM10
main71073-0DA40-D0i201112-201207
SEAT COVER MATERIAL-FABRIC(DECOCRE GRAY),RED/GRAY,TRIM10; SEAT COVER MATERIAL-FABRIC(DECOCRE RED),RED/GRAY,TRIM10
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-0D150i201012-201303
main71511-0D160i201012-201303
main71511-0D330i201303
main71511-0D410i201303
main71511-0D510i201501
main71511-0D830i201609
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71501-0D310i201906
main71512-0D130i201012-201303
main71512-0D150i201012-201303
main71512-0D320i201303
main71512-0D380i201609-201906
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-0D230i201303-201609
main71551-0D240i201012-201303
main71551-0D420i201303-201501
main71551-0D470i201303
main71551-0D520i201501
main71551-0D830i201609
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-0D230i201012-201303
main71551-0D240supersedes 71552-0D420i201012-201303
main71551-0D420i201303
main71552-0D420i201303-201503
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-0D130i201012-201102
main71610-0D131i201303-201609
main71610-0D140i201012-201102
SAFTY PACKAGE
main71610-0D141i201103-201303
SAFTY PACKAGE
main71610-0D320i201303
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-0D110i201012-201102
main71620-0D111i201103-201303
main71620-0D360i201906
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-0D170-C0i201012-201303
BLACK,TRIM1#
main71811-0D170-E0i201207-201303
GREGE,TRIM4#
main71811-0D390-A1i201609
IVORY,TRIM0#
main71811-0D390-C0i201303-201401
BLACK,TRIM1#,40; SAFETY PACKAGE(WITH ABS),BLACK,TRIM40
main71811-0D390-E0i201303-201401
GREGE,TRIM40
main71811-0D400-C0i201501-201712
BLACK,TRIM1#
main72553-0D030-C0i201303-201712
BLACK,TRIM1#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0D170-A1i201609
IVORY,TRIM0#
main71812-0D170-C0i201012-201303
BLACK,TRIM1#
main71812-0D170-E0i201303-201401
GREGE,TRIM40
main72554-0D030-C0i201501-201712
BLACK,TRIM1#
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-0D030×2i201303
71849CAP, SEAT ADJUSTER COVER, LH
main71848-0D030×2i201303
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-0D120-C0i201303
BLACK,TRIM1#
main71861-0D120-E0i201207-201303
GREGE,TRIM4#
main71861-0D280-A1i201609
IVORY,TRIM0#
main71861-0D280-C0i201303-201401
BLACK,TRIM1#,40; SAFETY PACKAGE(WITH ABS),BLACK,TRIM40
main71861-0D280-E0i201303
GREGE,TRIM4#
main71861-0D290-C0i201501-201712
BLACK,TRIM1#
main72553-0D040-C0i201303-201501
BLACK,TRIM1#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0D120-A1i201609
IVORY,TRIM0#
main71862-0D120-C0i201303-201401
BLACK,TRIM1#,40; SAFETY PACKAGE(WITH ABS),BLACK,TRIM40
main71862-0D120-E0i201303
GREGE,TRIM4#
main72554-0D040-C0i201303-201712
BLACK,TRIM1#
72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
main72129-0D010×2i201303
72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2
main72129-0D010×2i201012-201303
72157CCOVER, SEAT TRACK BRACKET, INNER RH
main72157-0D040-C0i201303
BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#
main72157-0D060-C0i201303-201712
BLACK,TRIM1#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-0D040-C0i201303
BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#
main72158-0D060-C0i201303-201712
BLACK,TRIM1#
72201AHANDLE SUB-ASSY, SEAT TRACK RH
main72201-0D010i201012-201303
main72211-0D210i201303
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72202-0D010i201012-201303
main72211-0D210i201303-201310
72265COVER, SEAT TRACK UPPER RAIL, RH
main72125-0D010×2i201012-201303
main72125-0D020×2i201303
72266COVER, SEAT TRACK UPPER RAIL, LH
main72125-0D010×2i201012-201303
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-0D150-C0i201012-201303
BLACK,TRIM1#
main72525-0D150-E0i201207-201303
GREGE,TRIM4#
main72525-0D280-C0i201303-201712
BLACK,TRIM1#
main72525-0D310-A1i201609
IVORY,TRIM0#
main72525-0D310-C0i201303-201401
BLACK,TRIM1#,40; SAFETY PACKAGE(WITH ABS),BLACK,TRIM40
main72525-0D310-E0i201303-201401
GREGE,TRIM40
main72525-0D330-C0i201501-201712
BLACK,TRIM1#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0D160-A1i201609
IVORY,TRIM0#
main72526-0D160-C0i201303-201401
BLACK,TRIM1#,40; SAFETY PACKAGE(WITH ABS),BLACK,TRIM40
main72526-0D160-E0i201401
GREGE,TRIM4#
main72526-0D280-C0i201303-201712
BLACK,TRIM1#
79175PAD, NO.1 SEATBACK
main79176-0D010i201303
79176PAD, NO.1 SEATBACK, NO.2
main79176-0D010i201012-201303
9011910921
main90119-10921
9011910945
main90119-10945
90119T0001
main90119-T0001
9016740044
main90167-40044
9046818008
main90468-18008
9616000500
main96160-00500

37 parts on this diagram · 6 diagrams in section
