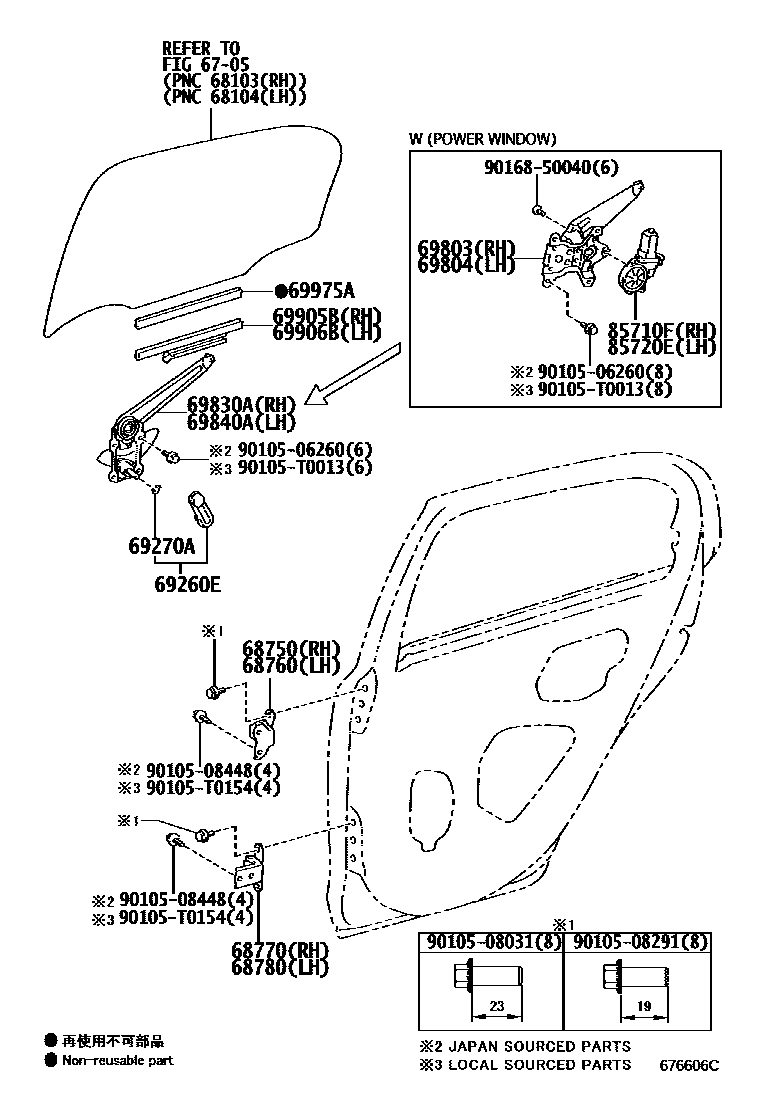

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D040iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201712

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D040iNGK10..IDN201012

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D040iNGK1#,NUK1#..IND,SA201303

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D040iNGK1#,NUK1#201012-201303

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-0D020-B0×2iNGK1#..STD201012-201112

GRAY,TRIM1#

main69260-0D020-B1×2iNGK1#..STD201112-201303

MD.GRAY,TRIM1#

main69260-0D050-B1×2iNGK10..STD..IDN201303-201501

DK.GRAY,TRIM1#; WITH(POWER STEERING & POWER WINDOW),DK.GRAY,TRIM1#

69270ASPRING(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90524-15006×2iNGK12,15..STD..SA201303-201802

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D120iNGK1#,NUK1#..G,V201012-201303

main69803-0D190iNGK10..(G,V)..IDN201303

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D120iNGK1#,NUK1#..G,V201012-201303

main69804-0D190iNGK10..(G,V)..IDN201303

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-0D180iNGK1#..STD201012-201303

main69830-0D250iNGK10..STD..IDN201303-201501

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-0D180iNGK12,15..STD..SA201303-201802

main69840-0D250iNGK10..STD..IDN201303-201501

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D050iNGK1#,NUK1#201012-201303

main69905-0D120iNGK10..IDN201303-201712

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0D050iNGK1#,NUK1#201012-201303

main69906-0D120iNGK10..IDN201303-201712

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D040×2iNGK1#,NUK1#..IND,SA201303

main69975-0D120×2iNGK10..IDN201303-201712

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0D130iNGK1#,NUK1#..(G,SUVG,SUVV,V)..(IND,SA)201303

main85720-0D310iNGK10..(G,V)..IDN201303

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0D170iNGK12,15..STD..SA201802

main85710-0D180iNGK10..(G,V)..IDN201303

9010506260

main90105-06260

9010508031

main90105-08031

9010508291

main90105-08291

9010508448

main90105-08448

90105T0013

main90105-T0013

90105T0154

main90105-T0154

9016850040

main90168-50040

23 parts on this diagram · 1 diagram in section
