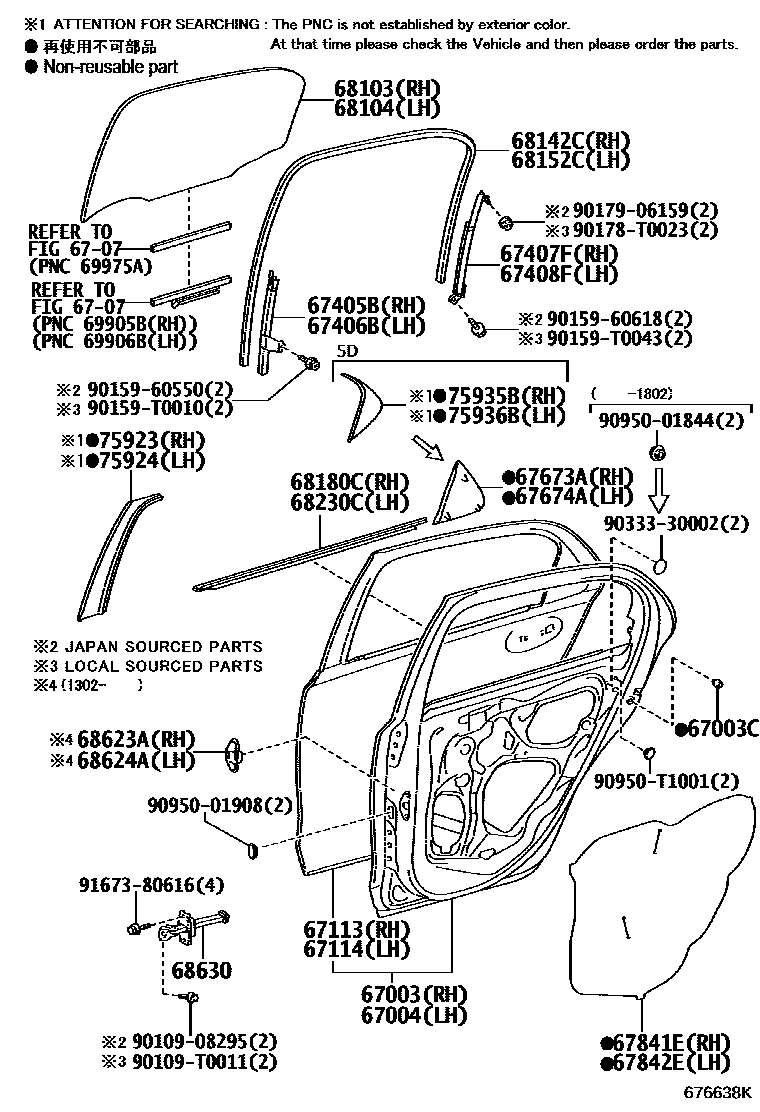

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM,POWER WINDOW 0003 1DOOR TRIM,MANUAL WINDOW

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D130iNGK10..IDN201012

main67003-0D220iNGK15,NUK15201303

main67003-0D260iNGK10,12,NUK10..SUVG,SUVV201404

67003CCUSHION, REAR DOOR PANEL

main90541-09124×2iNGK1#,NUK1#201012-201303

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D130iNGK1#,NUK10..5D201012-201303

main67004-0D200iNGK15,NUK15..4D201012-201303

main67004-0D260iNGK10,12,NUK10..SUVG,SUVV201404

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67113PANEL, REAR DOOR, OUTER RH

main67113-0D050iNGK10,12,NUK10..(G,STD,V)..(IND,SA)201303

main67113-0D060iNGK15,NUK15..4D201012-201303

main67113-0D090iNGK10,12,NUK10..SUVG,SUVV201404

67114PANEL, REAR DOOR, OUTER LH

main67114-0D050iNGK10,12,NUK10..(G,STD,V)..(IND,SA)201303

main67114-0D060iNGK15,NUK15201303

main67114-0D090iNGK10,12,NUK10..SUVG,SUVV201404

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-0D010iNGK1#,NUK1#201012-201303

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-0D010iNGK1#,NUK1#201012-201303

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-0D070iNGK1#,NUK1#201012-201303

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-0D070iNGK1#,NUK1#201012-201303

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0D010iNGK15,NUK15..4D201012-201303

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0D010iNGK15,NUK15..4D201012-201303

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0D100iNGK1#,NUK1#..IND,SA201303

main67841-0D140iNGK10..IDN201303

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-0D100iNGK1#,NUK1#201012-201303

main67841-0D140iNGK10..IDN201303

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0D140iNGK10,12,NUK10..IND,SA201303

main68113-0D150iNGK15,NUK15201303

main68113-0D290iNGK10..IDN201303-201712

main68113-0D320iNGK15..(G,STD)..IND201308-201409

INDONESIA SPEC

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0D140iNGK1#,NUK10..5D201012-201303

main68114-0D150iNGK15,NUK15..4D201012-201303

main68114-0D290iNGK10..IDN201303-201712

main68114-0D320iNGK15..(G,STD)..IND201308-201409

INDONESIA SPEC

68142CRUN, REAR DOOR GLASS, RH

main68142-0D100iNGK1#,NUK1#..IND,SA201303-201608

main68142-0D101iNGK1#,NUK1#..IND,SA201609

main68142-0D170iNGK10..IDN201303

68152CRUN, REAR DOOR GLASS, LH

main68142-0D100iNGK1#,NUK1#201012-201303

main68142-0D101iNGK1#,NUK1#..IND,SA201609

main68142-0D170iNGK10..IDN201303

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D110iNGK1#,NUK1#..IND,SA201303

main68180-0D150iNGK10..IDN201303

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D110iNGK1#,NUK1#..IND,SA201303

main68230-0D150iNGK10..IDN201303

68623ACOVER, REAR DOOR CHECK, RH

main68623-52010iNGK1#,NUK1#..IND,SA201303

68624ACOVER, REAR DOOR CHECK, LH

main68624-52010iNGK1#,NUK1#..IND,SA201303

68630CHECK ASSY, REAR DOOR

main68630-0D120×2iNGK1#,NUK1#201012-201303

main68630-0D150×2iNGK10..IDN201303

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D040iNGK12..G..IND;NGK10,NUK10..V..IND; NGK12..G..SA; NGK12;NGK10,NUK10..(SUVG,SUVV,V)..IND201307-202003

TWO TONE EXTERIOR COLOR

main75923-0D090iNGK10..(G,V)..IDN201303

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D040iNGK15..SA;NGK1#,NUK1#..(G,V)..IND201012-201303

main75924-0D090iNGK10..(G,V)..IDN201303

75935BTAPE, BLACK OUT, OUTER REAR RH

main75935-0D010iNGK1#,NUK10..5D201012-201303

main75935-0D030iNGK10..IDN201303

75936BTAPE, BLACK OUT, OUTER REAR LH

main75936-0D010iNGK1#,NUK10..5D201012-201303

main75936-0D030iNGK10..IDN201303

9010908295

main90109-08295

90109T0011

main90109-T0011

9015960550

main90159-60550

9015960618

main90159-60618

90159T0010

main90159-T0010

90159T0043

main90159-T0043

90178T0023

main90178-T0023

9017906159

main90179-06159

9033330002

main90333-30002

9095001844

main90950-01844

9095001908

main90950-01908

90950T1001

main90950-T1001

9167380616

main91673-80616

40 parts on this diagram · 3 diagrams in section
