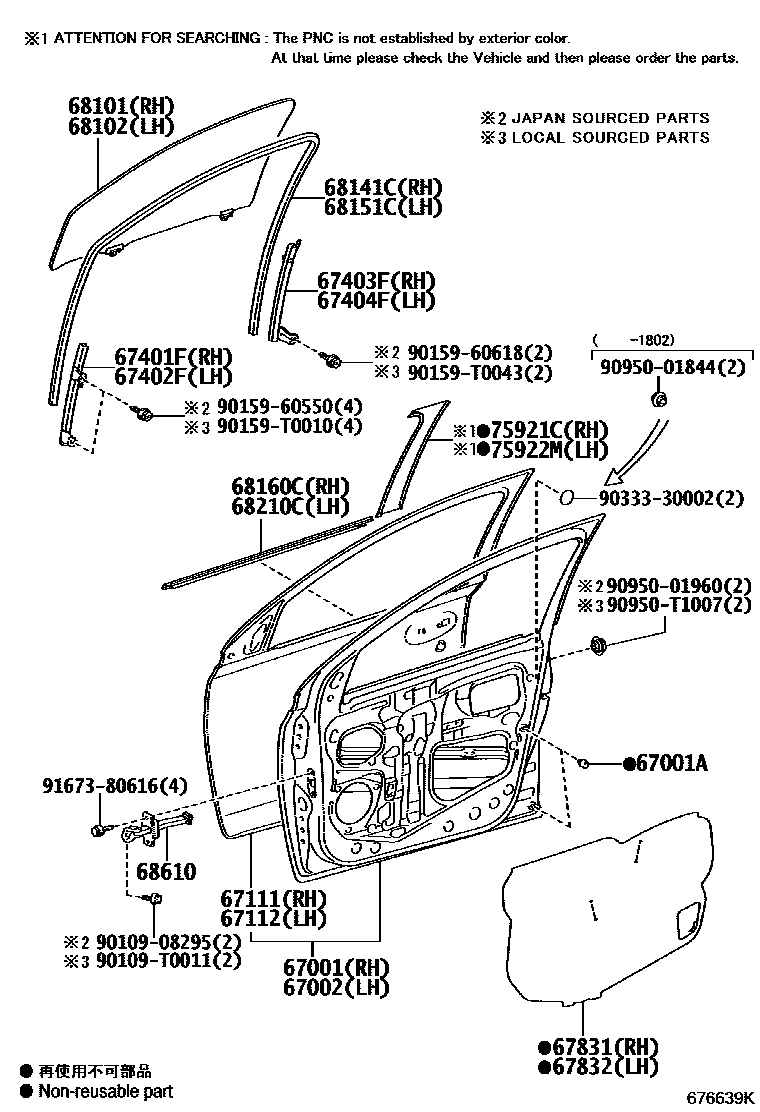

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM,POWER WINDOW 0003 1DOOR TRIM,MANUAL WINDOW

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D150iNGK1#,NUK1#..(G,STD,V)..(IND,SA); NGK10..IDN201303

main67001-0D220iNGK1#,NUK1#201012-201210

main67001-0D221iNGK1#,NUK1#201211-201303

main67001-0D280iNGK10,12,NUK10..SUVG,SUVV201404

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iNGK10..IDN201012

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D220iNGK1#,NUK1#201012-201210

main67002-0D221iNGK1#,NUK1#201211-201303

main67002-0D270iNGK1#,NUK1#..(G,STD,V)..(IND,SA); NGK10..IDN201303

main67002-0D360iNGK10,12,NUK10..SUVG,SUVV201404

67111PANEL, FRONT DOOR, OUTER RH

main67111-0D070iNGK1#,NUK1#201012-201211

main67111-0D110iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201211-201712

main67111-0D130iNGK10,12,NUK10..SUVG,SUVV201404

67112PANEL, FRONT DOOR, OUTER LH

main67112-0D070iNGK1#,NUK1#201012-201211

main67112-0D130iNGK1#,NUK1#201211-201303

main67112-0D160iNGK10,12,NUK10..SUVG,SUVV201404

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0D050iNGK1#,NUK1#..IND,SA201303

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0D050iNGK10..IDN201012

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0D090iNGK1#,NUK1#201012-201303

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0D090iNGK1#,NUK1#..IND,SA201303

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D160iNGK1#,NUK1#201012-201303

main67831-0D161iNGK1#,NUK1#..STD..(IND,SA)201303-201608

main67831-0D210iNGK1#,NUK1#..(G,SUVG,SUVV,V)..(IND,SA)201409-201608

main67831-0D240iNGK10..IDN201303

main67831-0D590iNGK10,15,NUK1#..STD..IND201609

main67831-0D600iNGK12;NGK15..SA;NGK10,15,NUK1#..(G,SUVG,SUVV,V)..IND201609

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-0D160iNGK1#,NUK1#201012-201303

main67831-0D161iNGK1#,NUK1#..(G,SUVG,SUVV,V)..(IND,SA)201303-201409

main67831-0D210iNGK1#,NUK1#..(G,SUVG,SUVV,V)..(IND,SA)201409-201608

main67831-0D240iNGK10..IDN201303

main67832-0D450iNGK10,15,NUK1#..STD..IND201609

main67832-0D460iNGK12;NGK15..SA;NGK10,15,NUK1#..(G,SUVG,SUVV,V)..IND201609

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D160iNGK1#,NUK1#..IND,SA201303

main68110-0D220iNGK10..IDN201303-201712

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D160iNGK1#,NUK1#201012-201303

main68120-0D220iNGK10..IDN201303-201712

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D140iNGK1#,NUK1#201012-201303

main68141-0D210iNGK10..IDN201303

68151CRUN, FRONT DOOR GLASS, LH

main68141-0D140iNGK1#,NUK1#..IND,SA201303

main68141-0D210iNGK10..IDN201303

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D130iNGK1#,NUK1#..IND,SA201303

main68160-0D180iNGK10..IDN201303

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D130iNGK1#,NUK1#..IND,SA201303

main68210-0D180iNGK10..IDN201303

68610CHECK ASSY, FRONT DOOR

main68610-0D080×2iNGK1#,NUK1#201012-201303

main68610-0D110×2iNGK10..IDN201303

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0D040iNGK15..SA;NGK1#,NUK1#..(G,V)..IND201012-201303

main75921-0D090iNGK10..(G,V)..IDN201303

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0D040iNGK15..SA;NGK1#,NUK1#..(G,V)..IND201012-201303

main75922-0D090iNGK10..(G,V)..IDN201303

9010908295

main90109-08295

90109T0011

main90109-T0011

9015960550

main90159-60550

9015960618

main90159-60618

90159T0010

main90159-T0010

90159T0043

main90159-T0043

9033330002

main90333-30002

9095001844

main90950-01844

9095001960

main90950-01960

90950T1007

main90950-T1007

9167380616

main91673-80616

31 parts on this diagram · 3 diagrams in section
