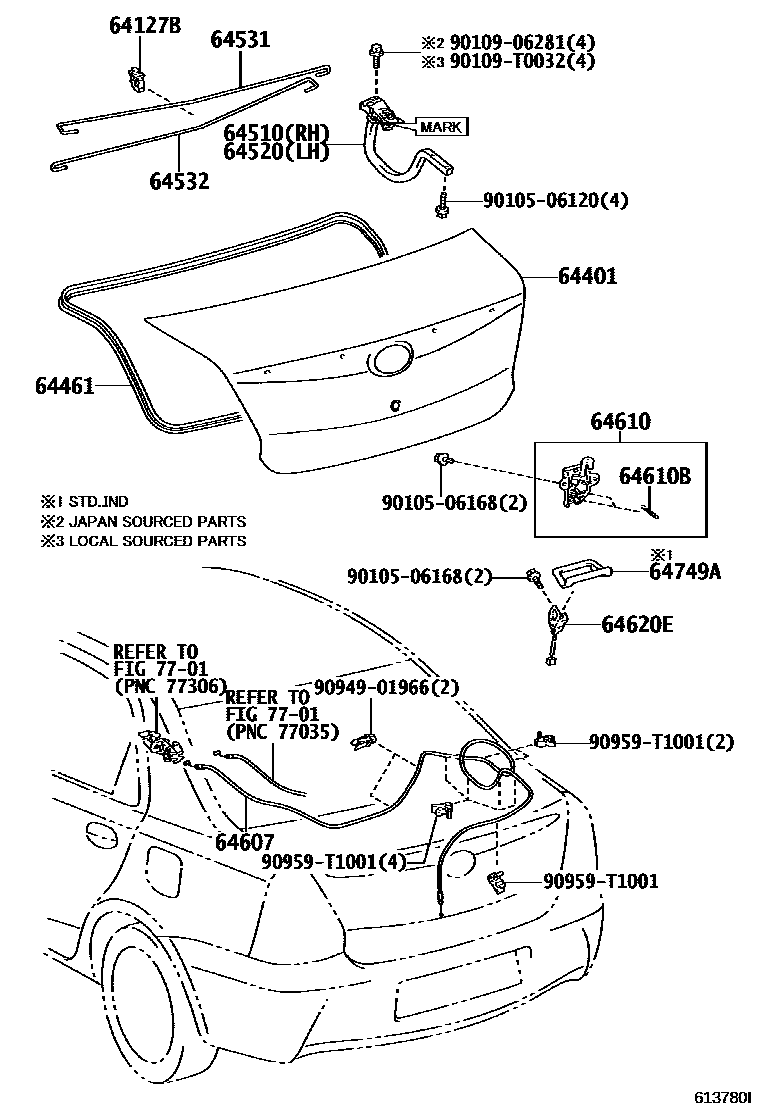

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D030iNGK15,NUK15201303

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D130iNGK15..4D..STD201012-201303

main64401-0D140iNGK15,NUK15..4D..(G,V)201012-201303

main64401-0D190iNGK15,NUK15..STD201303

main64401-0D200iNGK15,NUK15..G,V201303

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D060iNGK15,NUK15201303

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-0D010iNGK15,NUK15..4D201012-201303

MARK = 1R0

main64510-0D020iNGK15,NUK15..4D201012-201303

MARK = 1R+

main64510-0D030iNGK15,NUK15..4D201012-201303

MARK = 1R-

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-0D010iNGK15,NUK15201303

MARK = 1L0

main64520-0D020iNGK15,NUK15..4D201012-201303

MARK = 1L+

main64520-0D030iNGK15,NUK15201303

MARK = 1L-

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D140iNGK15201012-201105

main64531-0D141iNGK15,NUK15..4D201106-201303

main64531-0D200iNGK15..SA;NGK15,NUK15..(G,V)..IND201303

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D140iNGK15201012-201105

main64532-0D141iNGK15,NUK15..4D201106-201303

main64532-0D200iNGK15..SA;NGK15,NUK15..(G,V)..IND201303

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-0D120iNGK15,NUK15..4D201012-201303

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-0D050iNGK15,NUK15..4D201012-201303

64610BSPRING, TENSION(FOR LOCK)

main90506-06010×2iNGK15,NUK15..4D201012-201303

WD=0.55,CW=16.75

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-0D020iNGK15201012-201108

main64620-0D021iNGK15,NUK15..4D201108-201303

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main62671-0D020iNGK15..STD..IND201012-201303

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

90109T0032

main90109-T0032

9094901966

main90949-01966

90959T1001

main90959-T1001

19 parts on this diagram · 1 diagram in section
