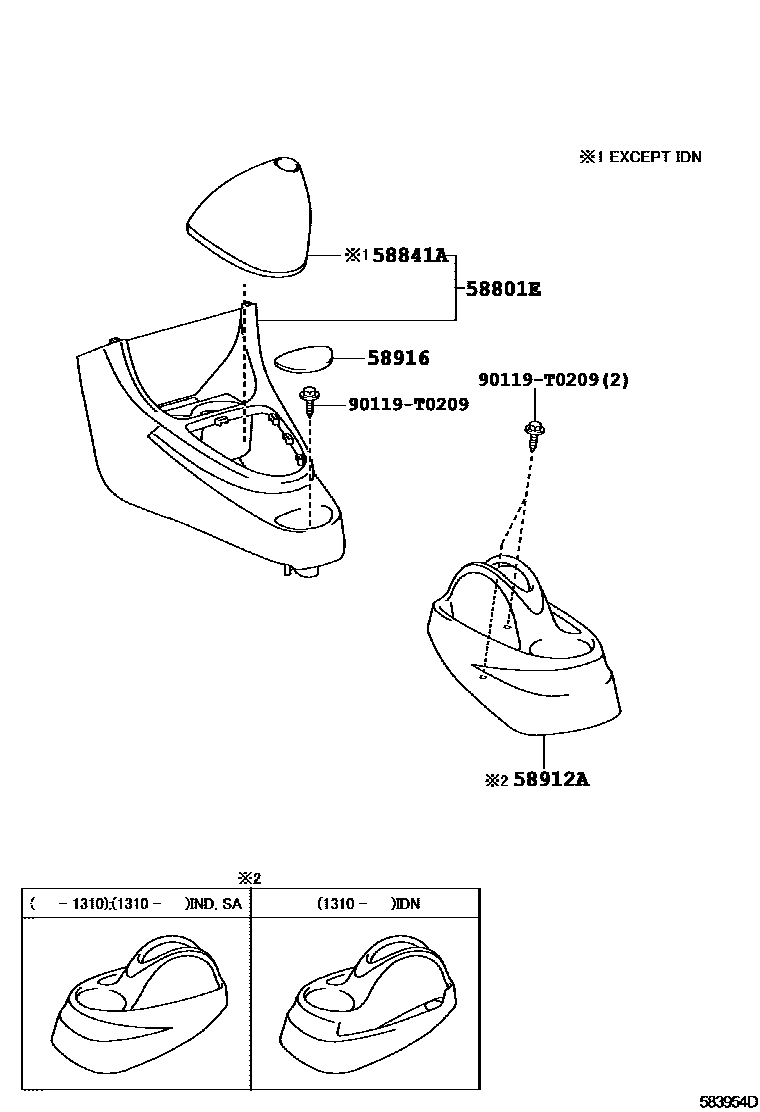

CONSOLE BOX & BRACKET

58801EBOX SUB-ASSY, CONSOLE, UPPER

main58801-0D010-C1iNGK1#..(G,V)..IND201012-201303

BLACK,TRIM1#,4#

sub58801-0D011

main58801-0D010-C1iNGK1#..STD;NGK15..G..SA201012-201303

BLACK,TRIM1#

sub58801-0D011

main58801-0D011-C1iNGK12..G,STD;NGK15..G..SA;NGK10,15..STD..(IND,SA)201303

BLACK,TRIM1#

main58801-0D011-C1iNGK10,15..V..IND201303

BLACK,TRIM0#

main58801-0D011-C1iNGK10,12..SUVG,SUVV201404

BLACK,TRIM2#

main58801-0D011-E0iNGK10,15..(G,V)..IND201303

ASH BROWN,TRIM40

main58801-0D030-C0iNUK1#201108-201303

BLACK,TRIM1#,4#

sub58801-0D031

main58801-0D031-C0iNUK15..V201303

BLACK,TRIM1#

main58801-0D031-C0iNUK1#..G201303

BLACK,TRIM0#

main58801-0D031-C0iNUK10..SUVG,SUVV201404

BLACK,TRIM2#

main58801-0D031-E0iNUK10..V201401

ASH BROWN,TRIM4#

main58801-0D031-E0iNUK10..G;NUK15..G,V201303

ASH BROWN,TRIM40

main58801-0D040-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

58841ACOVER, SHIFTING HOLE

main58841-0D120-C0iNGK10,15..G..IND201303

BLACK,TRIM0#

main58841-0D120-C0iNGK1#..(G,V)..IND201012-201303

BLACK,TRIM1#,4#

main58841-0D120-C0iNGK1#..(G,V)..IND201012-201303

BLACK,TRIM1#

main58841-0D120-C0iNGK10,12..SUVG,SUVV201404

BLACK,TRIM2#

main58841-0D120-E0iNGK10,15..(G,V)..IND201303

ASH BROWN,TRIM40

main58841-0D160-C0iNUK15..V201303

BLACK,TRIM1#

main58841-0D160-C0iNUK1#..G201303

BLACK,TRIM0#

main58841-0D160-C0iNUK10..SUVG,SUVV201404

BLACK,TRIM2#

main58841-0D160-C0iNUK1#201108-201303

BLACK,TRIM1#,4#

main58841-0D160-E0iNUK10..G;NUK15..G,V201303

ASH BROWN,TRIM40

main58841-0D160-E0iNUK10..V201401

ASH BROWN,TRIM4#

58912ABOX, REAR CONSOLE

main58911-0D150-C0iNGK12..G,STD;NGK15..G..SA;NGK10,15,NUK1#..STD..(IND,SA)201012-201303

BLACK,TRIM1#

main58911-0D150-C0iNGK1#,NUK1#..(G,V)..IND201012-201303

BLACK,TRIM1#,4#

main58911-0D150-C0iNGK10,15,NUK15..V..IND201303

BLACK,TRIM0#

main58911-0D150-C0iNGK10,12,NUK10..SUVG,SUVV201404

BLACK,TRIM1#,2#

main58911-0D150-E0iNUK10..G;NGK10,15,NUK15..(G,V)..IND201303

ASH BROWN,TRIM40

main58911-0D150-E0iNUK10..V201401

ASH BROWN,TRIM4#

main58911-0D180-C0iNGK10..IDN201303-201310

BLACK,TRIM1#

main58911-0D350-C0iNGK10..IDN201310-201712

BLACK,TRIM1#

58916MAT, BOX BOTTOM

main58916-0D010iNGK1#,NUK1#..IND,SA201012-201303

main58916-0D030iNGK10..IDN201303

90119T0209

main90119-T0209

5 parts on this diagram · 1 diagram in section
