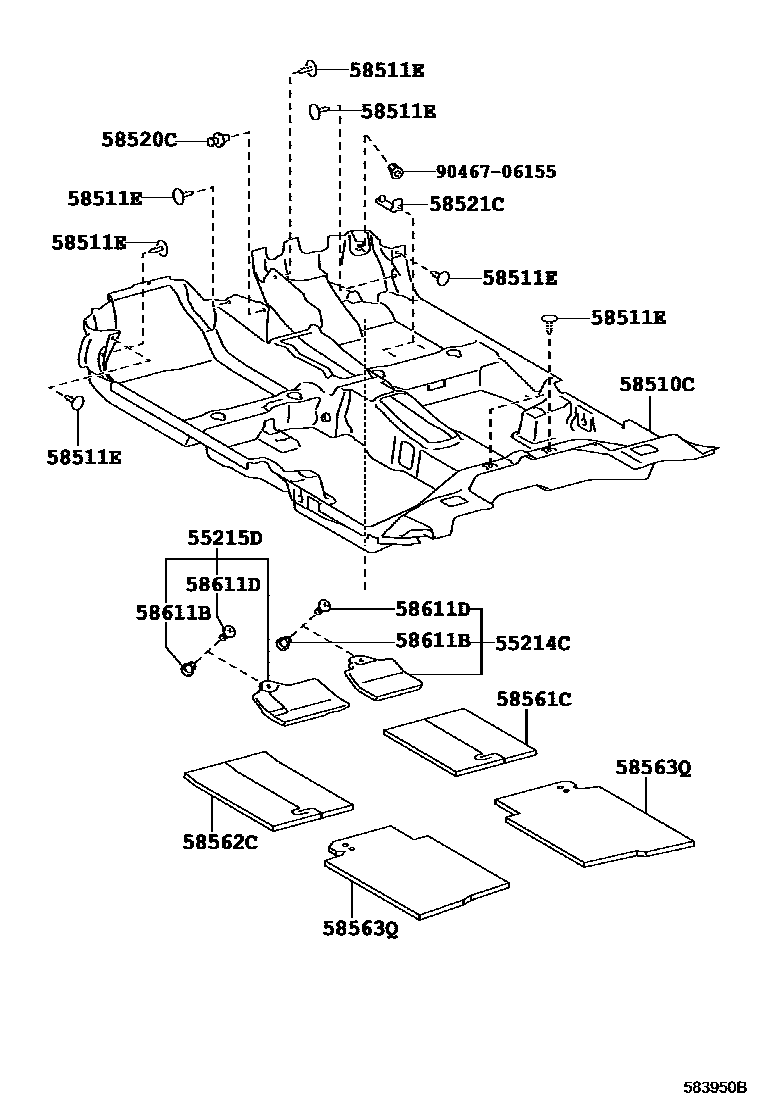

MAT & CARPET

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0D070iNGK1#,NUK1#..IND,SA201012-201303

main55214-0D150iNGK10..IDN201303-201510

sub55214-0D151

main55214-0D151iNGK10..IDN201511

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0D060iNGK1#,NUK1#201012-201303

main55215-0D130iNGK10..IDN201303-201510

sub55215-0D131

main55215-0D131iNGK10..IDN201511

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-0D670-C0iNGK15..5D;NGK10..STD201012-201303

BLACK,TRIM1#

sub58510-0D671

main58510-0D670-C0iNGK10,NUK10..G,V201012-201303

BLACK,TRIM1#,4#

sub58510-0D671

main58510-0D671-C0iNGK10,NUK10..G..IND201303-201510

BLACK,TRIM1#

sub58510-0DD80

main58510-0D671-C0iNGK10,NUK10..G..IND201303-201510

BLACK,TRIM1#,40

sub58510-0DD80

main58510-0D671-C0iNGK10,12,NUK10..(SUVG,SUVV)..IND201404-201510

BLACK,TRIM2#

sub58510-0DD80

main58510-0D671-E0iNUK10..G;NGK10..(G,V)..IND201303-201510

MD.GREGE,TRIM40

sub58510-0DD80

main58510-0D671-E0iNUK10..V201401-201510

MD.GREGE,TRIM4#

sub58510-0DD80

main58510-0D680-C0iNGK15,NUK15..(G,V)..IND201012-201303

BLACK,TRIM1#,4#

sub58510-0D681

main58510-0D680-C0iNGK15..4D..STD;NGK15..4D..G..SA201012-201303

BLACK,TRIM1#

sub58510-0D681

main58510-0D681-C0iNGK15,NUK15..STD..IND201303-201510

BLACK,TRIM1#,40

sub58510-0DD90

main58510-0D681-C0iNGK15,NUK15..G..IND201303-201510

BLACK,TRIM1#

sub58510-0DD90

main58510-0D681-E0iNGK15,NUK15..(G,V)..IND201303-201510

MD.GREGE,TRIM40

sub58510-0DD90

main58510-0DA80-C0iNGK10..IDN201303-201712

BLACK,TRIM1#

main58510-0DC80-C0iNGK12..SA201306-201311

BLACK,TRIM1#

sub58510-0DC81

main58510-0DC81-C0iNGK12..SUVG201404-201510

BLACK,TRIM2#

sub58510-0DE01

main58510-0DC81-C0iNGK12..(G,STD)..SA201312-201510

BLACK,TRIM1#

sub58510-0DE01

main58510-0DC90-C0iNGK15..SA201306-201311

BLACK,TRIM1#

sub58510-0DC91

main58510-0DC91-C0iNGK15..SA201312-201510

BLACK,TRIM1#

sub58510-0DE11

main58510-0DD80-C0iNGK12..G..IND;NGK10,NUK10..STD..IND201510

BLACK,TRIM1#

main58510-0DD80-C0iNGK12..G..IND;NGK10,NUK10..STD..IND201510

BLACK,TRIM0#

main58510-0DD80-C0iNGK12..G..IND;NGK10,NUK10..STD..IND201510

BLACK,TRIM2#

main58510-0DD80-E0iNGK10,NUK10..(G,V)..IND201510

MD.GREGE,TRIM4#

main58510-0DD90-C0iNGK15,NUK15..V201510

BLACK,TRIM0#

main58510-0DD90-C0iNGK15,NUK15..V201510

BLACK,TRIM1#

main58510-0DD90-E0iNGK15,NUK15..(G,V)..IND201510

MD.GREGE,TRIM4#

main58510-0DE01-C1iNGK12..(G,STD)..SA201510

BLACK,TRIM2#

main58510-0DE01-C1iNGK12..SUVG201510

BLACK,TRIM1#

main58510-0DE11-C1iNGK15..SA201510

BLACK,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C0iNGK12;NGK15..G..SA;NGK10,15,NUK1#..STD..(IND,SA)201303-201403

BLACK,TRIM1#,40

sub90467-05164

main90467-05164-C0iNGK12;NGK15..G..SA;NGK10,15,NUK1#..STD..(IND,SA)201012-201610

BLACK,TRIM1#

sub90467-05164

main90467-05164-C0iNGK1#,NUK1#..(G,V)..IND201012-201303

BLACK,TRIM1#,4#

sub90467-05164

main90467-05164-C7iNGK10..IDN201610-201712

BLACK,TRIM1#

sub90467-05164

main90467-05164-E2iNUK10..V201401-201403

GREGE,TRIM4#

sub90467-05164

main90467-05164-E2iNUK10..G;NGK10,15,NUK15..(G,V)..IND201303-201403

GREGE,TRIM40

sub90467-05164

main90467-T0004-C1iNGK10,12,NUK10..SUVG,SUVV201404

BLACK,TRIM0#

main90467-T0004-C1iNGK10,15,NUK1#..V..IND201404

BLACK,TRIM1#

main90467-T0004-C1iNGK10,15,NUK1#..V..IND201404

BLACK,TRIM2#

main90467-T0004-E0iNGK10,15,NUK1#..(G,V)..IND201404

GREGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07214iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201311

main90467-T0039iNGK1#,NUK1#..IND,SA201312

58521CHOOK, FLOOR CARPET NO.2

main58522-52030iNGK1#,NUK1#..IND,SA201012

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D120iNGK1#,NUK1#201012-201303

sub58561-0D121

main58561-0D121iNGK1#,NUK1#..IND,SA201303

main58561-0D200iNGK10..IDN201303

58562CSILENCER, FRONT FLOOR, NO.2

main58562-0D120iNGK10..IDN201303

main58562-0D140iNGK1#,NUK1#201012-201303

sub58562-0D141

main58562-0D141iNGK1#,NUK1#..IND,SA201303

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D140iNGK1#,NUK10..5D201012-201303

main58563-0D150iNGK15,NUK15..4D201012-201303

main58563-0D200iNGK10..IDN201303

58611BPLATE, MAT SET, NO.1

main55229-48010iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201806

58611DPLATE, MAT SET, NO.1 B

main55239-48020iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201806

9046706155

main90467-06155

12 parts on this diagram · 1 diagram in section
