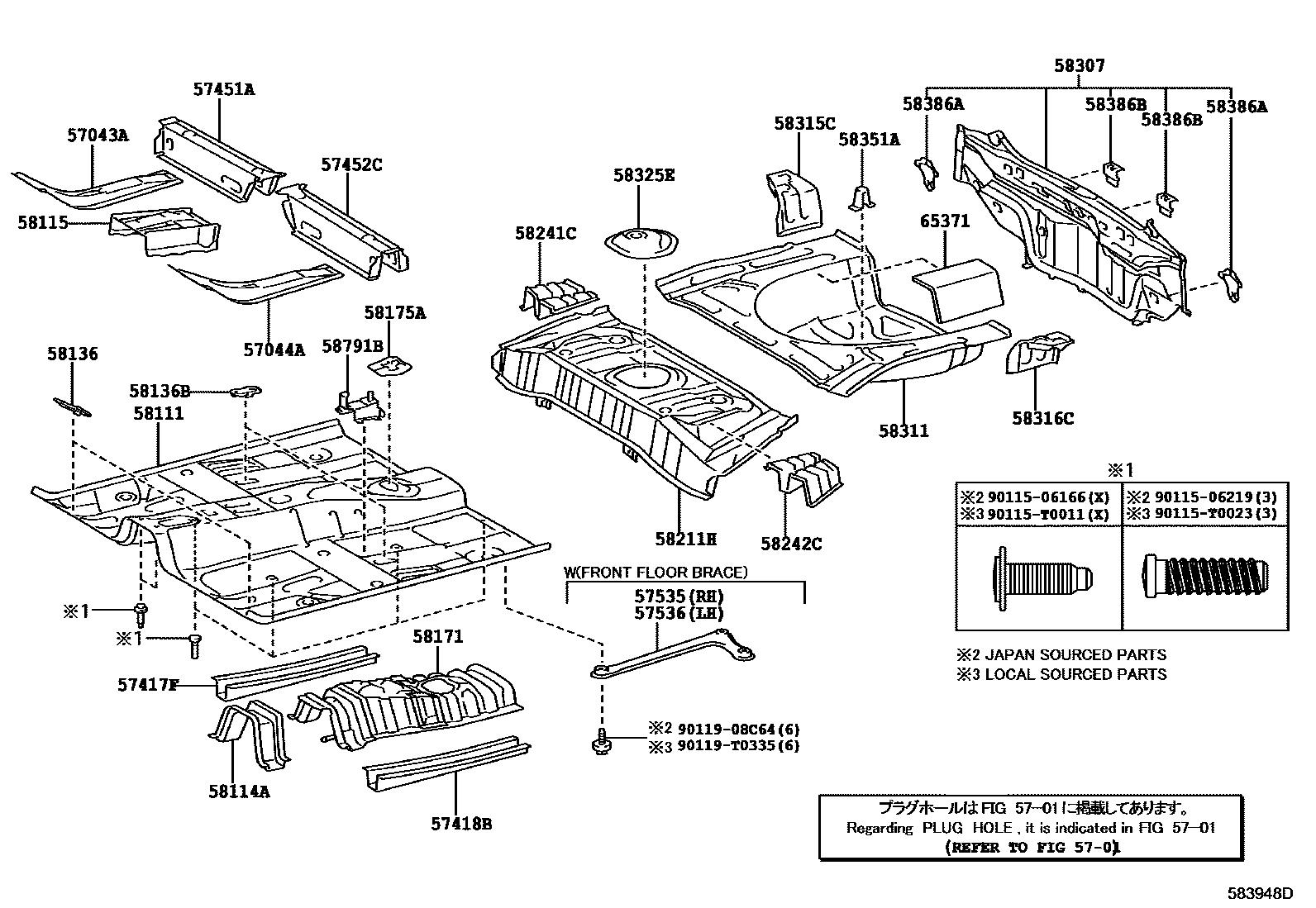

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D040iNGK1#,NUK1#201012-201303

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57146-0D040iNGK1#,NUK1#201012-201303

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57408-0D100iNGK10,12,NUK10..IND,SA201510

main57408-0D120iNGK15,NUK15201510

main57417-0D040iNGK10,NUK10201012-201109

main57417-0D041iNGK1#,NUK10..5D201110-201303

main57417-0D050iNGK15,NUK15201012-201109

main57417-0D051iNGK15,NUK15201303-201410

main57417-0D080iNGK10,12,NUK10..IND,SA201411-201510

main57417-0D090iNGK15,NUK15201411-201510

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-0D040iNGK10,NUK10201012-201109

main57417-0D041iNGK10,12,NUK10..IND,SA201303-201410

main57417-0D050iNGK15,NUK15201012-201109

main57417-0D051iNGK15,NUK15201303-201410

main57417-0D080iNGK10..IDN201303

main57417-0D090iNGK15,NUK15201411-201510

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-0D090iNGK1#,NUK1#201012-201209

main57451-0D091iNGK1#,NUK1#201210-201303

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-0D090iNGK1#,NUK1#201012-201209

main57452-0D100iNGK10..IDN201210

57535BRACE, FRONT FLOOR, RH

main57535-0D010iNGK15..SA201203-201303

main57535-0D030iNGK10..IDN201303

57536BRACE, FRONT FLOOR, LH

main57536-0D010iNGK15..SA201203-201303

main57536-0D030iNGK10..IDN201303

58111PAN, FRONT FLOOR

main58111-0D906iNGK10..IDN201012

main58111-0D907iNGK15,NUK15..4D201012-201303

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D090iNGK1#,NUK1#201012-201303

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58115-0D010iNGK10..IDN201012

58136COVER, FRONT FLOOR HOLE

main58165-0D040×2iNGK10..IDN201012

58136BCOVER, CENTER FLOOR HOLE

main58136-0D040×2iNGK1#,NUK1#201012-201303

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-0D030iNGK10..IDN201012

main58107-0D040iNGK15,NUK15..4D201012-201303

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D020iNGK1#,NUK1#201012-201303

58211HPAN, CENTER FLOOR

main58211-0D070iNGK1#,NUK1#..IND,SA201303-201410

main58211-0D130iNGK1#,NUK1#..IND,SA201411

58241CPANEL, FLOOR SIDE, RH

main58241-0D010iNGK1#,NUK1#..IND,SA201303-201410

main58241-0D020iNGK1#,NUK1#..IND,SA201411

58242CPANEL, FLOOR SIDE, LH

main58242-0D010iNGK1#,NUK1#..IND,SA201303-201410

main58242-0D020iNGK10..IDN201303

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D110iNGK10,NUK10201106-201109

main58307-0D120iNGK10201012-201106

main58307-0D130iNGK15201012-201106

main58307-0D160iNGK15,NUK15201106-201109

main58307-0D180iNGK15,NUK15201110-201203

main58307-0D181iNGK15,NUK15201303-201406

main58307-0D190iNGK10,NUK10201110-201202

main58307-0D191iNGK10..IDN201203

main58307-0D340iNGK15..SA201407

main58307-0D350iNGK15,NUK15..IND201407

main58307-0D360iNGK12..G,STD,SUVG201407

main58307-0D370iNGK12..SUVV;NGK10,NUK10..IND201407

58311PAN, REAR FLOOR

main58311-0D070iNGK10,12,NUK10..IND,SA201303

main58311-0D080iNGK15,NUK15..4D201012-201303

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-0D070iNGK10..IDN201012

main58315-0D080iNGK15,NUK15201303

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-0D070iNGK10,12,NUK10..IND,SA201303

main58316-0D080iNGK15,NUK15..4D201012-201303

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D050iNGK1#,NUK1#201012-201303

58351ABRACKET, SPARE WHEEL CARRIER

main58351-0D060iNGK1#,NUK1#201012-201303

58386AGUSSET, LOWER BACK PANEL, NO.2

main58384-0D010×2iNGK15,NUK15201012-201109

main58384-0D070×2iNGK15,NUK15201110-201203

main58384-0D071×2iNGK15,NUK15..4D201203-201303

main58384-0D080×2iNGK10,NUK10201110-201202

main58384-0D081×2iNGK1#,NUK10..5D201203-201303

main58384-0D220×2iNGK15..SA201407

main58384-0D230×2iNGK15,NUK15..IND201407

main58384-0D240×2iNGK12..G,STD,SUVG201407

main58384-0D250×2iNGK12..SUVV;NGK10,NUK10..IND201407

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0D030×2iNGK1#,NUK1#..IND,SA201303

58791BCARRIER, JACK

main58791-0D090iNGK1#,NUK1#201012-201303

main58791-0D120iNGK10..IDN201303

65371INSULATOR, REAR FLOOR

main65371-0D010iNGK1#,NUK1#201012-201303

main65371-0D050iNGK10..IDN201303

9011506166

main90115-06166

9011506219

main90115-06219

90115T0011

main90115-T0011

90115T0023

main90115-T0023

9011908C64

main90119-08C64

90119T0335

main90119-T0335

35 parts on this diagram · 2 diagrams in section
