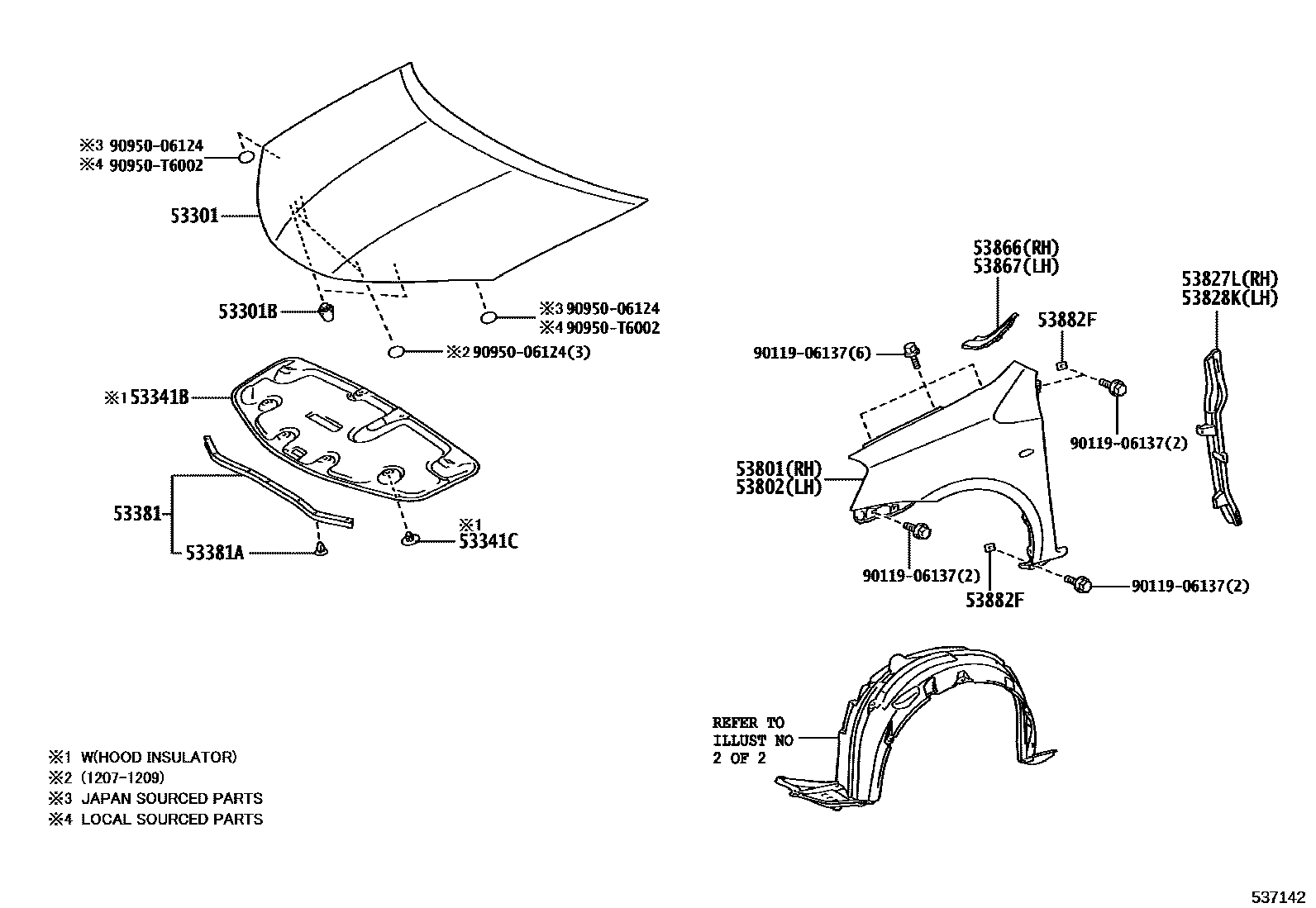

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0D120iNGK1#,NUK1#201012-201303

main53301-0D121iNGK1#,NUK1#..IND,SA201303-201306

main53301-0D122iNGK1#,NUK1#..(G,STD,V)..(IND,SA)201307

main53301-0D180iNGK10..IDN201303

main53301-0D250iNGK10,12,NUK10..SUVG,SUVV201404

53301BCUSHION, HOOD BUMPER

main90541-09115×2iNGK1#,NUK1#..IND,SA201303

53341BINSULATOR, HOOD

main53341-0D110iNUK1#;NGK1#..V;NGK15..SA201012-201303

main53341-0D170iNGK10..V..IDN201303

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iNGK15..SA;NGK12,NUK1#;NGK10,15..V..IND201303-201407

main90467-T0014×6iNGK10..V..IDN; NGK15..SA;NGK12,NUK1#;NGK10,15..V..IND201407

(L)

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0D070iNGK1#,NUK1#201012-201303

main53381-0D090iNGK10..IDN201303

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013×7iNGK1#,NUK1#201012-201303

53801FENDER SUB-ASSY, FRONT RH

main53811-0D060iNGK1#,NUK1#201012-201303

main53811-0D140iNGK10,15,NUK1#..V..IND201303

main53811-0D150iNGK10,12,NUK10..SUVG,SUVV201404

53802FENDER SUB-ASSY, FRONT LH

main53812-0D060iNGK10..IDN201012

main53812-0D140iNGK10,15,NUK15..G..IND; NGK12..G..IND201409

LUXURY PACKAGE(W(ABS & *ERCDM))

main53812-0D150iNGK10,12,NUK10..SUVG,SUVV201404

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D070iNGK10..IDN201303

main53827-0D080iNGK1#,NUK1#..IND,SA201303

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D070iNGK10..IDN201303

main53828-0D080iNGK1#,NUK1#201012-201303

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D070iNGK1#,NUK1#..IND,SA; NGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND201303-202003

MLM PACKAGE

main53866-0D100iNGK10..IDN201303

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D070iNGK1#,NUK1#..IND,SA; NGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND201303-202003

MLM PACKAGE

main53867-0D100iNGK10..IDN201303

53882FSEAL, FRONT FENDER

main53882-16030×4iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012

9011906137

main90119-06137

9095006124

main90950-06124

90950T6002

main90950-T6002

16 parts on this diagram · 2 diagrams in section
