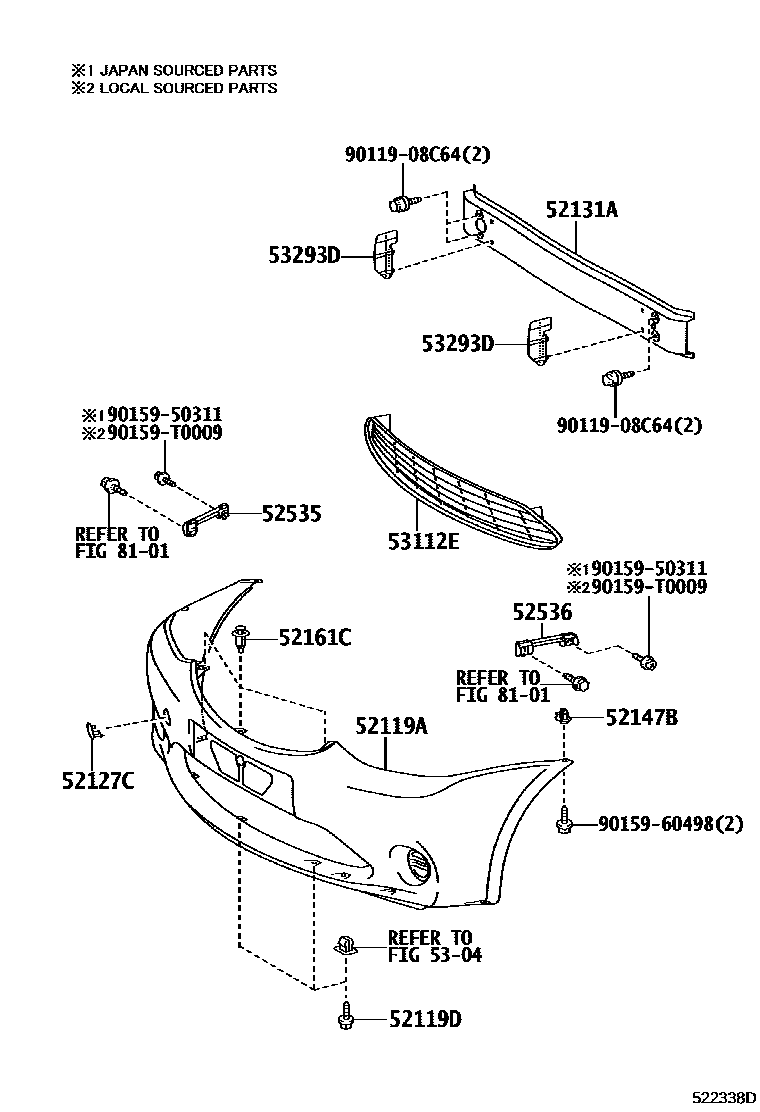

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1MLM PACKAGE

52119ACOVER, FRONT BUMPER

main52119-0D650iNGK10,12,NUK10..SUVG,SUVV201404-202003

main52119-0U902iNGK1#,NUK1#..(G,STD,V)..(IND,SA); NGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND; NUK10..G201303-202003

MLM PACKAGE; MLM PACKAGE&FRONT FOG LAMP-WITH

main52119-0U911iNGK10..IDN201303

PAINT REQ.

main52119-YP900iNGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND; NUK10..G201609-202003

MLM PACKAGE; MLM PACKAGE&FRONT FOG LAMP-WITH

52119DSCREW, NO.1

main90159-60488×2iNGK1#,NUK1#..IND,SA; NGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND; NUK10..G201303-202003

MLM PACKAGE; MLM PACKAGE&FRONT FOG LAMP-WITH

52127CCOVER, FRONT BUMPER HOLE

main52127-0D500iNGK10,12,NUK10..SUVG,SUVV201404-202003

main52127-0D914iNGK1#,NUK1#201012-201303

main52127-0D921iNGK10..IDN201303

52131AREINFORCEMENT, FRONT BUMPER

main52131-0D090iNGK1#,NUK1#201012-201303

main52131-0D130iNGK10..IDN201303

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-0D070×2iNGK1#,NUK1#201012-201303

main52147-0D100×2iNGK10..IDN201303

52161CPIECE, FRONT BUMPER

main52161-0K040×3iNGK1#,NUK1#..(G,STD,V)..(IND,SA); NGK12..G;NGK15..G..SA;NGK10,15,NUK1#..V..IND; NGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND; NUK10..G201504-202003

(L); MLM PACKAGE&FRONT FOG LAMP-WITH,(L); MLM PACKAGE,(L)

main52161-16010×3iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201604

main90467-T0041×3iNGK10..IDN201604

(L)

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D050iNGK1#,NUK1#..(G,STD,V)..(IND,SA); NGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND; NUK10..G201303-202003

MLM PACKAGE; MLM PACKAGE&FRONT FOG LAMP-WITH

main52535-0D100iNGK10..IDN201303

main52535-0D200iNGK10,12,NUK10..SUVG,SUVV201404-202003

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D050iNGK1#,NUK1#201012-201303

main52536-0D100iNGK10..IDN201303

main52536-0D200iNGK10,12,NUK10..SUVG,SUVV201404-202003

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0D180iNGK1#,NUK1#201012-201303

NO PAINT REQ.

main53112-0D260iNGK10..IDN201303

NO PAINT REQ.

main53112-0D380iNGK10,12,NUK10..SUVG,SUVV201404-202003

main53112-YP020iNGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND; NUK10..G201609-202003

MLM PACKAGE; MLM PACKAGE&FRONT FOG LAMP-WITH

53293DDEFLECTOR, RADIATOR UPPER AIR

main53293-0D020×2iNGK1#,NUK1#201012-201303

main53293-0D040×2iNGK10..IDN201303

main53293-0D060×2iNGK10,12,NUK10..SUVG,SUVV201404-202003

main53293-YP020×2iNGK15..SA;NGK12..G,STD;NGK10,15,NUK1#..(G,V)..IND201609-202003

MLM PACKAGE

8101HEADLAMP

→ Go to FIG 81-01

9011908C64

main90119-08C64

9015950311

main90159-50311

9015960498

main90159-60498

90159T0009

main90159-T0009

16 parts on this diagram · 3 diagrams in section
