43211KNUCKLE, STEERING, RH

main43211-0D210i201303

main43211-0D240i201303-201712

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-14140×2i201403-201712

OD=14,(J)

main90105-T0222×2i201403

OD=14,(L)

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-T0027×2i201303

main90179-14062×2i201012-201207

43212KNUCKLE, STEERING, LH

main43212-0D210i201012-201303

main43212-0D240i201303-201712

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-14140×2i201012-201403

OD=14

main90105-T0222×2i201403

OD=14,(L)

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-T0027×2i201303

main90179-14062×2i201012-201207

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007i201405

(J)

main90171-T0005i201405

(L)

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007i201405

(J)

main90171-T0005i201405

(L)

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-09240i201404

main48068-0D080i201303-201308

main48068-0D081i201308-201609

main48068-0D082i201609

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086i201303

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14126i201012-201108

main90119-14147i201108-201403

main90119-T0356i201403-201801

(L)

main90119-T0597i201802

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-09250i201306-201403

main48069-0D080i201012-201303

main48069-0D081i201308-201609

main48069-0D082i201609

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086i201012

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14126i201012-201108

main90119-14147i201403

(J)

main90119-T0356i201403-201801

(L)

main90119-T0597i201802

9046816022

main90468-16022

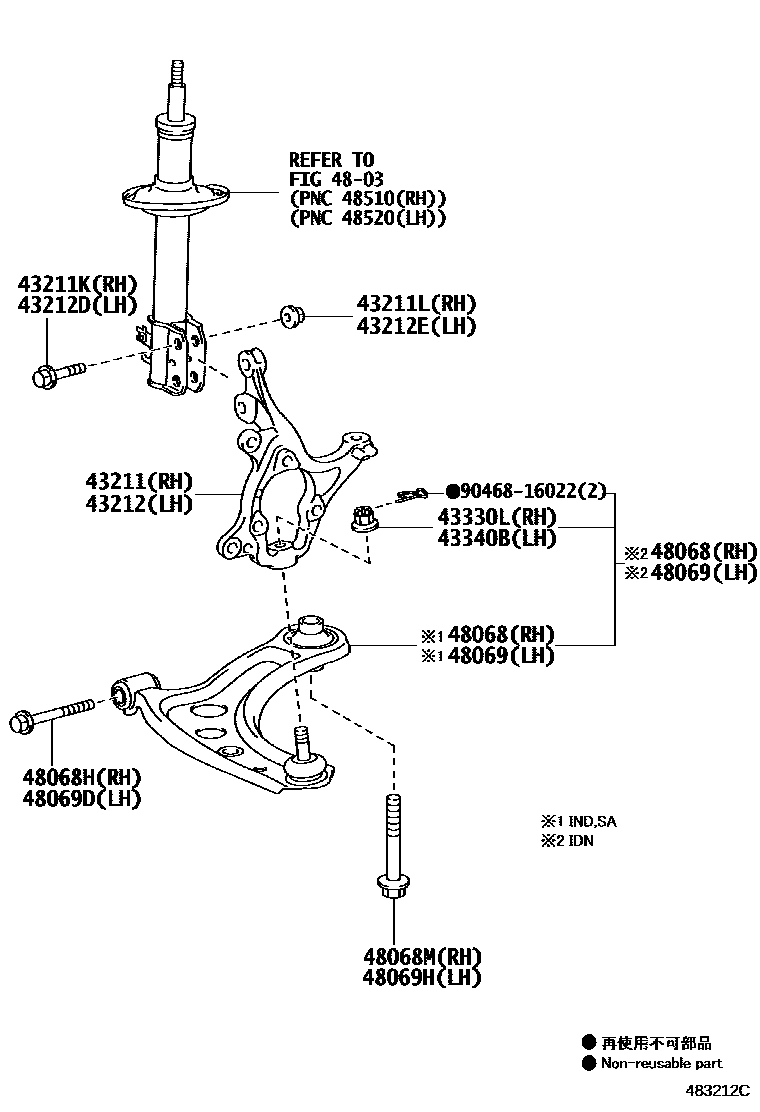

FRONT AXLE ARM & STEERING KNUCKLE
