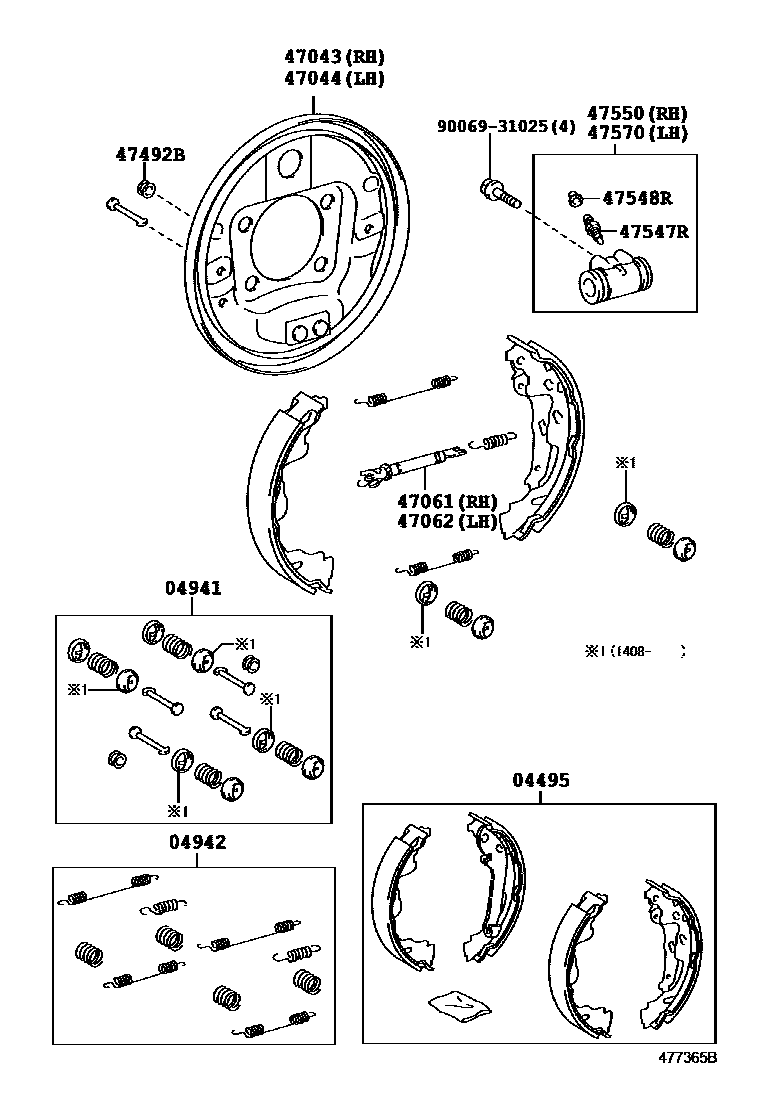

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0D080iNGK1#,NUK1#..IND,SA201303

MARK RANE LR521

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0D080iNGK1#,NUK1#..IND,SA201303-201408

main04941-0D110iNGK1#,NUK1#..IND,SA; NGK10..IDN201408

04942SPRING KIT, REAR BRAKE

main04942-0D090iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201408

main04942-0D120iNGK1#,NUK1#..IND,SA; NGK10..IDN201408

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0D080iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0D080iNGK1#,NUK1#..IND,SA201303

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-0D080iNGK1#,NUK1#..IND,SA201303

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-0D080iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-0D080×2iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main90069-39014×2iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0D060×2iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-0D020iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201603

main47550-0D021iNGK1#,NUK1#..IND,SA; NGK10..IDN201604

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-0D020iNUK10..G;NUK15..G,V;NGK10,15..G,STD,V201012-201603

main47550-0D021iNGK1#,NUK1#..IND,SA; NGK10..IDN201604

9006931025

main90069-31025

13 parts on this diagram · 1 diagram in section
