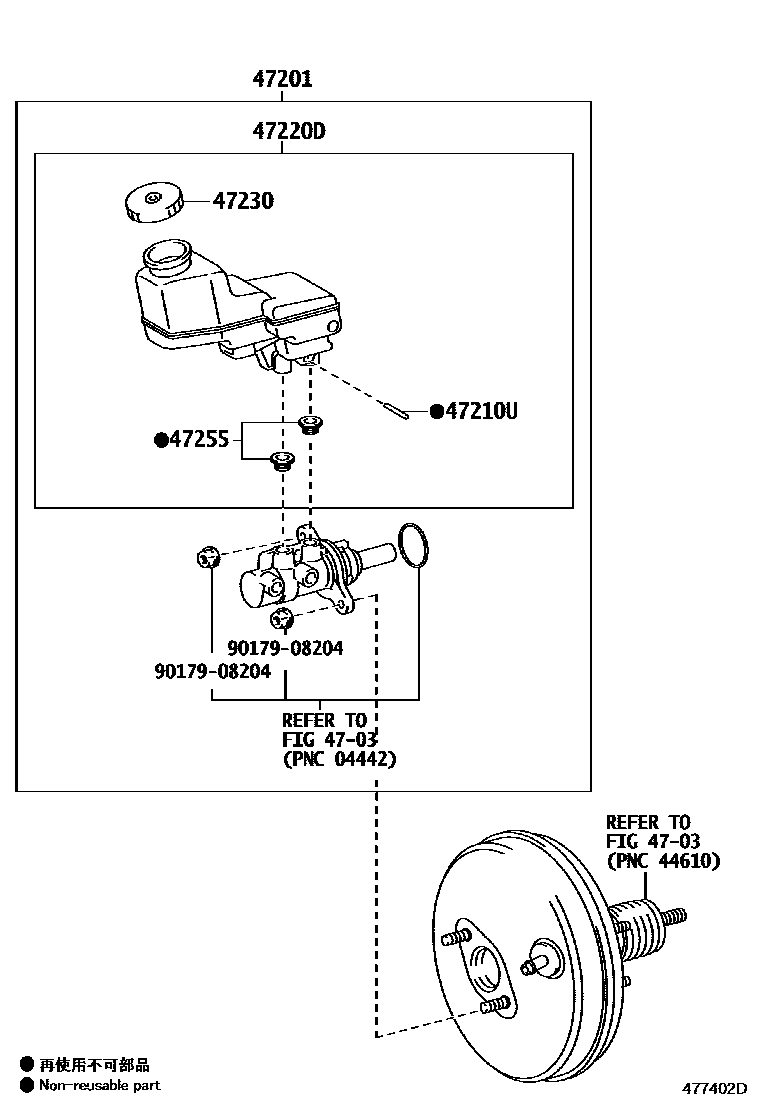

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09610iNGK1#..IND,SA201303

main47201-09620iNUK1#201303

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iNGK1#,NUK1#201012-201303

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-09140iNGK10,15..G,STD,V201012-201712

main47220-09150iNUK1#201303

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D140iNGK10..IDN201012

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09050iNGK1#,NUK1#201012-201303

9017908204

main90179-08204

7 parts on this diagram · 1 diagram in section
