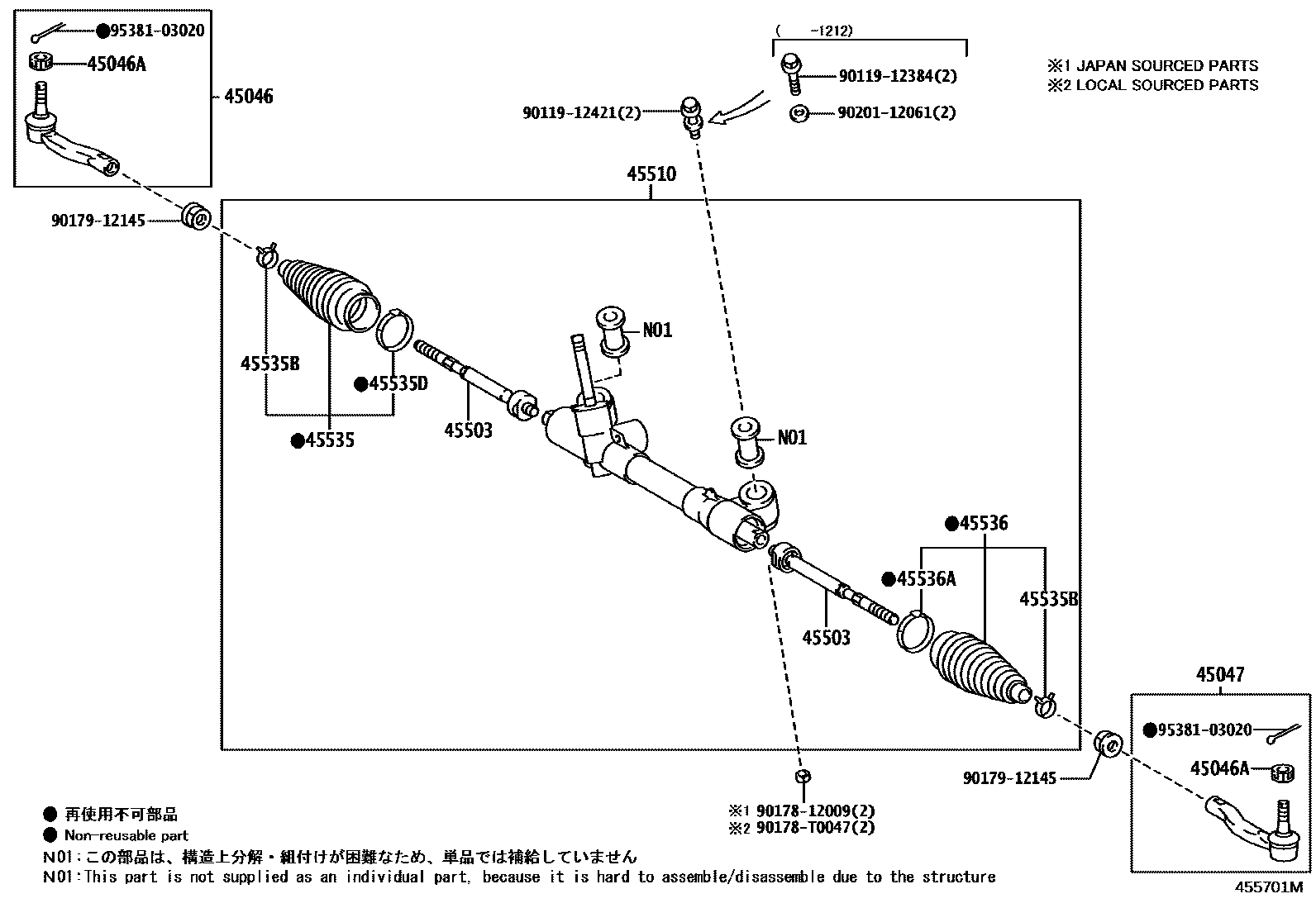

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09680iNGK1#,NUK1#201012-201303

main45046-09681iNGK1#,NUK1#..IND,SA; NGK10..IDN201303

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNGK1#,NUK1#..IND,SA; NGK10..IDN201303

(J)

main90171-T0004×2iNGK10..IDN201303

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-09340iNGK1#,NUK1#201012-201303

main45047-09341iNGK1#,NUK1#..IND,SA; NGK10..IDN201303

45503END SUB-ASSY, STEERING RACK

main45503-0D040×2iNGK1#,NUK1#201012-201303

main45503-0D041×2iNGK1#,NUK1#..IND,SA; NGK10..IDN201303

45510GEAR ASSY, STEERING

main45510-0D300iNGK1#..STD201012-201202

main45510-0D302iNGK1#..STD..IND201203-201207

main45510-0D310iNGK1#,NUK1#..G,V201012-201202

main45510-0D312iNGK15..SA;NGK1#,NUK1#..(G,V)..IND201203-201302

main45510-0D313iNGK1#,NUK1#..IND,SA; NGK10..(G,V)..IDN201303-201308

main45510-0D314iNGK1#,NUK1#..IND,SA; NGK10..(G,V)..IDN201309

45535BOOT, STEERING RACK, NO.1

main45535-09230iNGK1#,NUK1#201012-201303

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46334×2iNGK1#,NUK1#201012-201303

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D050iNGK1#,NUK1#201012-201303

45536BOOT, STEERING RACK, NO.2

main45535-09230iNGK1#,NUK1#201012-201303

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D050iNGK1#,NUK1#201012-201303

9011912384

main90119-12384

9011912421

main90119-12421

9017812009

main90178-12009

90178T0047

main90178-T0047

9017912145

main90179-12145

9020112061

main90201-12061

9538103020

main95381-03020

17 parts on this diagram · 1 diagram in section
