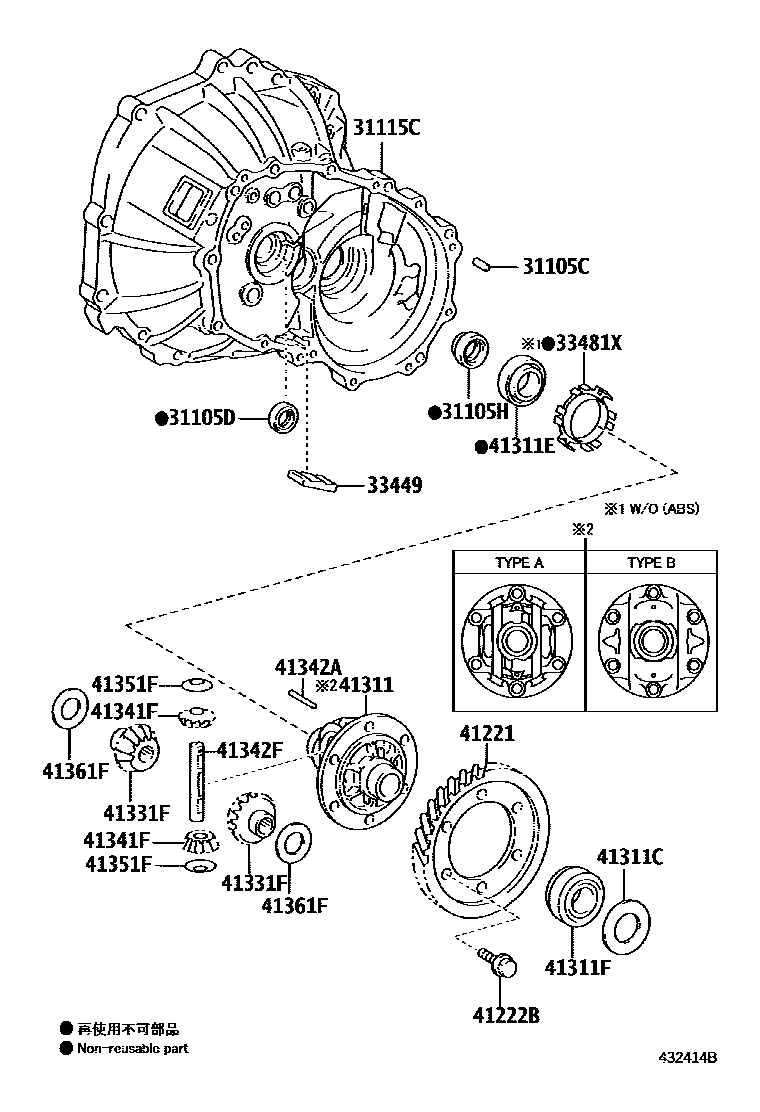

FRONT AXLE HOUSING & DIFFERENTIAL
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
(J)
*201
(L)
*434
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
(J)
*201
*434
31115CCASE, FRONT TRANSAXLE(MTM)
*434
*201
*201
(J)
SAFTY PACKAGE
SAFTY PACKAGE,(J)
33449MAGNET, TRANSMISSION
33481XGEAR, SPEEDOMETER DRIVE
(J)
41221GEAR, FRONT DIFFERENTIAL RING
(L)
(J)
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CASE, FRONT DIFFERENTIAL
TYPE B:REFER ILLUST.
SAFTY PACKAGE,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10,MARK AA
T=2.15,MARK BB
T=2.20,MARK CC
T=2.25,MARK DD
T=2.30,MARK EE
T=2.35,MARK FF
T=2.40,MARK GG
T=2.45,MARK HH
T=2.50,MARK JJ
T=2.55,MARK KK
T=2.60,MARK LL
T=2.65,MARK MM
T=2.70,MARK NN
T=2.75,MARK PP
T=2.80,MARK QQ
T=2.85,MARK RR
T=2.90,MARK SS
T=2.95,MARK TT
T=3.00,MARK UU
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
(J)
*201
(L)
*434
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
*201
(L)
*434
(J)
41331FGEAR, FRONT DIFFERENTIAL SIDE
*434
*201
41341FPINION, FRONT DIFFERENTIAL
*434
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
*201
*434
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
*434
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04,*434
T=0.95,MARK 14,*434
T=1.05,MARK 15,*201
T=1.15,MARK 16,*434
T=0.90,MARK 19,*434
T=0.50
T=0.55
T=0.60
T=0.65
T=0.70
T=0.75
T=0.80
T=0.85
T=0.90
T=0.95
18 parts on this diagram · 3 diagrams in section
