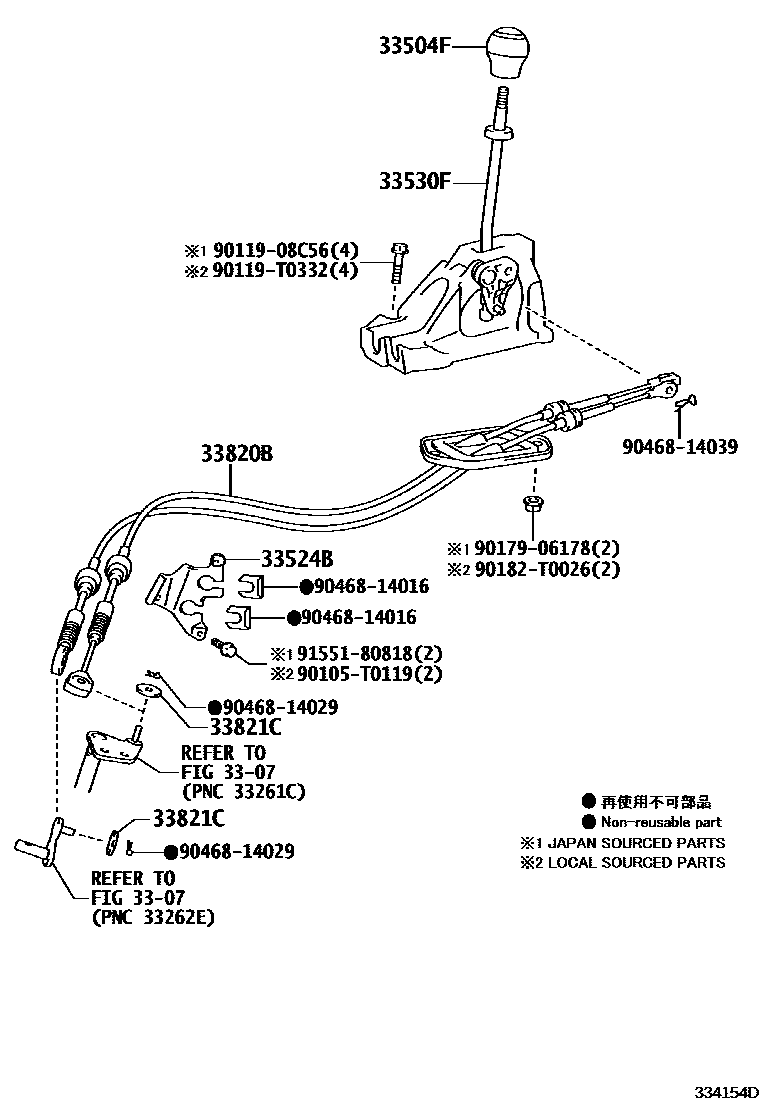

SHIFT LEVER & RETAINER

0001 1 0002 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D190-C0iNGK1#..STD..(IND,SA)201303

BLACK,TRIM1#

main33504-0D200-C0iNUK1#..G201401

BLACK,TRIM1#

main33504-0D430-C0supersedes 33504-0D190-C0iNGK12..SUVG,SUVV201404-201803

BLACK,TRIM2#

main33504-0D430-E0supersedes 33504-0D190-E0iNGK10,15..V..IND201401-201803

ASH BROWN,TRIM40

main33504-0D431-C0iNGK10,15..V; NGK12..G;NGK15..G..SA; NGK12..SUVG,SUVV201804

BLACK,TRIM0#; BLACK,TRIM1#; BLACK,TRIM2#

main33504-0D440-C0iNUK10..V201401-201803

BLACK,TRIM0#

main33504-0D440-E0supersedes 33504-0D200-E0iNUK10..V; NUK15..V201401-201803

ASH BROWN,TRIM4#; ASH BROWN,TRIM40

main33504-0D441-C0iNUK1#..V; NUK10..SUVV201804

BLACK,TRIM0#; BLACK,TRIM2#

main33504-0D460iNGK10,15..G..IND; NGK10,15..V..IND201303-201401

SAFETY PACKAGE(WITH ABS)

main33504-0D470iNUK1#..G; NUK15..V201303-201401

SAFETY PACKAGE(WITH ABS)

main33504-0D431-E0iNGK10,15..G..IND201804

LUXURY PACKAGE(W(ABS & *ERCDM)),ASH BROWN,TRIM4#

main33504-0D441-E0iNUK1#..G201804

LUXURY PACKAGE(W(ABS & *ERCDM)),ASH BROWN,TRIM4#

33524BBRACKET, CONTROL CABLE

main33524-0D050iNGK1#201012-201303

main33524-0D130iNGK10..IDN201303

main33524-0D150iNUK1#201602

*434

main33524-52110iNUK1#201303-201609

*201

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0D080iNGK1#..IND,SA201303

main33530-0D090iNUK1#..G,STD201303-201312

main33530-0D110iNUK1#..G; NUK15..V201303-201401

SAFETY PACKAGE(WITH ABS)

main33530-0D130-C0iNUK1#..G,STD; NUK1#..V201401

BLACK,TRIM0#; BLACK,TRIM1#

main33530-0D130-E0iNUK1#..G,V201401

ASH BROWN,TRIM4#

main33530-0D150iNGK10..IDN201303-201512

main33530-0D240iNGK10..IDN201601-201712

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0D300iNGK1#201012-201303

main33820-0D310iNUK1#201303

main33820-0D440iNGK10..IDN201303

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267×2iNGK1#,NUK1#..IND,SA; NGK10..IDN201303

OD=28

90105T0119

main90105-T0119

9011908C56

main90119-08C56

90119T0332

main90119-T0332

9017906178

main90179-06178

90182T0026

main90182-T0026

9046814016

main90468-14016

9046814029

main90468-14029

9046814039

main90468-14039

9155180818

main91551-80818

15 parts on this diagram · 2 diagrams in section
