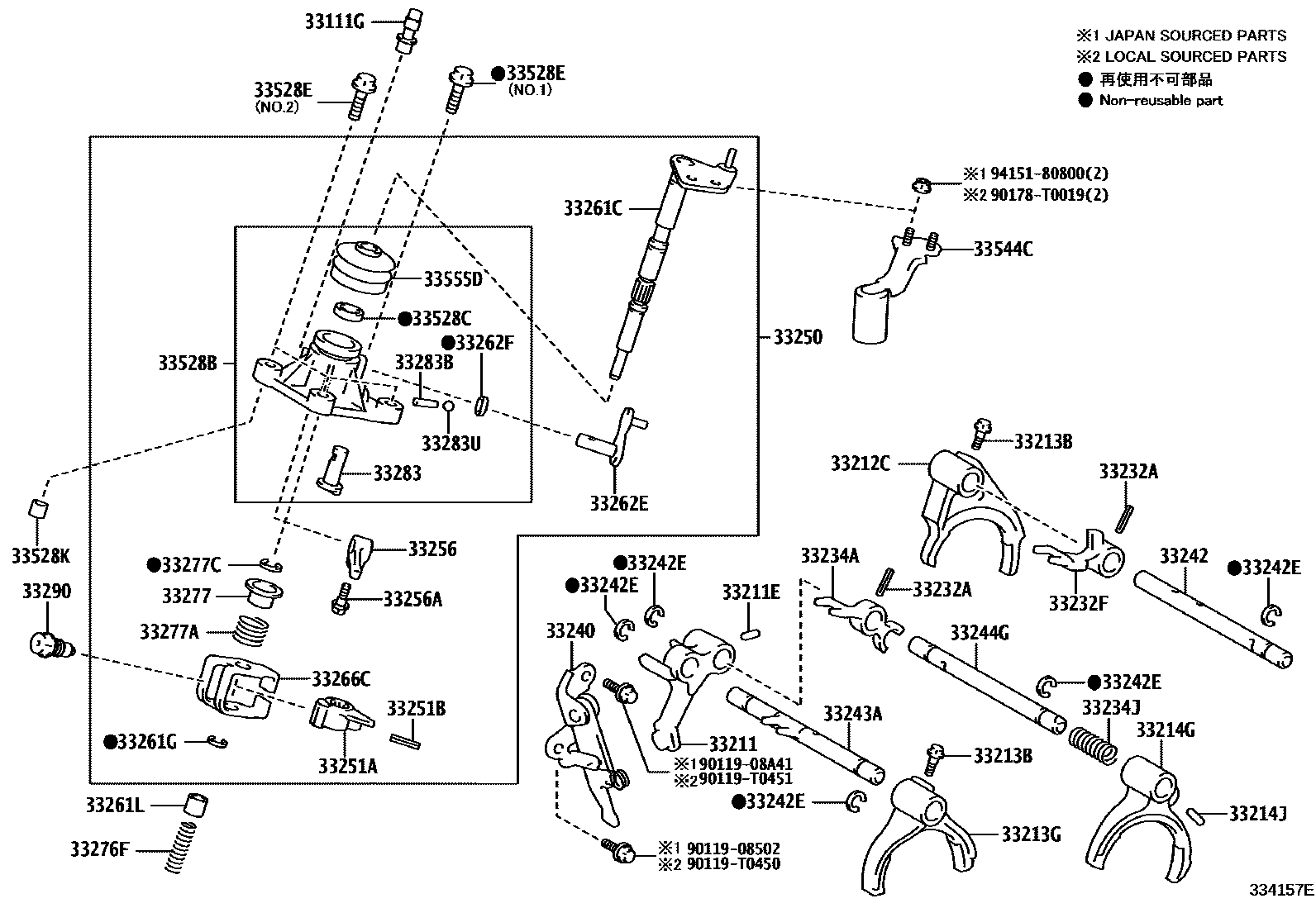

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
*434
*434
*434
33211EPIN, STRAIGHT(FOR REVERSE SHIFT FORK)
33212CFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33214JPIN, STRAIGHT(FOR 5TH SHIFT FORK)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
*434
33232FHEAD, GEAR SHIFT, NO.1
(L),*434
*434
(J),*434
33234AHEAD, GEAR SHIFT, NO.3
*434
(L),*434
(J),*434
33234JSPRING, COMPRESSION (FOR SHIFT RETURN)
(J)
(L)
33240BRACKET ASSY, REVERSE SHIFT ARM
*434
*201
*201
33242SHAFT, GEAR SHIFT FORK, NO.1
(L)
(J)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244GSHAFT, GEAR SHIFT FORK, NO.3
(L)
(J)
33250SHAFT ASSY, SHIFT & SELECT LEVER
(L)
(J)
33251ALEVER, SHIFT, INNER NO.1
(L),*434
*434
*201
(J),*434
*201
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=28.0
L=28.0,*434
L=28.0,*201
L=25.5
33256LEVER, SELECT INNER
(L)
(L),*434
*434
*201
(J),*434
(J)
33256ABOLT, SET (FOR SELECT INNER LEVER)
(J)
(L)
*201
*434
33261CSHAFT, SHIFT & SELECT LEVER
*434
*201
33261GRING, SNAP (FOR SHIFT & SELECT LEVER SHAFT)
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
NO.1
*201,NO.1
(J)
NO.2
*201,NO.2
(L)
*434,NO.2
*434,NO.1
33262ESHAFT, SELECT LEVER
33262FSEAL, OIL (FOR SELECT LEVER SHAFT)
(J)
(L)
33266CPLATE, SHIFT INTERLOCK
*201
*434
*201
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
(J)
(L)
33277SEAT, SELECT SPRING, NO.2
(L)
(J)
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
(J)
(L)
33277CRING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)
33283PIN, REVERSE RESTRICT, NO.1
33283BPIN, STRAIGHT (FOR REVERSE RESTRICT PIN)
33283UBALL, REVERSE RESTRICT PIN
33290BALL ASSY, LOCK, NO.1
*434
*201
*201
33528BCOVER, CONTROL SHAFT
(L)
(J)
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
(L)
(J)
33528EBOLT (FOR CONTROL SHAFT COVER)
*8-1.25X35-30,NO.1
*8-1.25X35-30,(J),NO.1
*8-1.25X35-30,(L),NO.1
*8-1.25X35-30,(L),NO.2
*8-1.25PX35-30,(J),NO.2
*8-1.25PX35-30,NO.2
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
33555DBOOT, SHIFT LEVER
(L)
(J)
9011908502
main90119-08502
9011908A41
main90119-08A41
90119T0450
main90119-T0450
90119T0451
main90119-T0451
90178T0019
main90178-T0019
9415180800
main94151-80800
48 parts on this diagram · 3 diagrams in section
