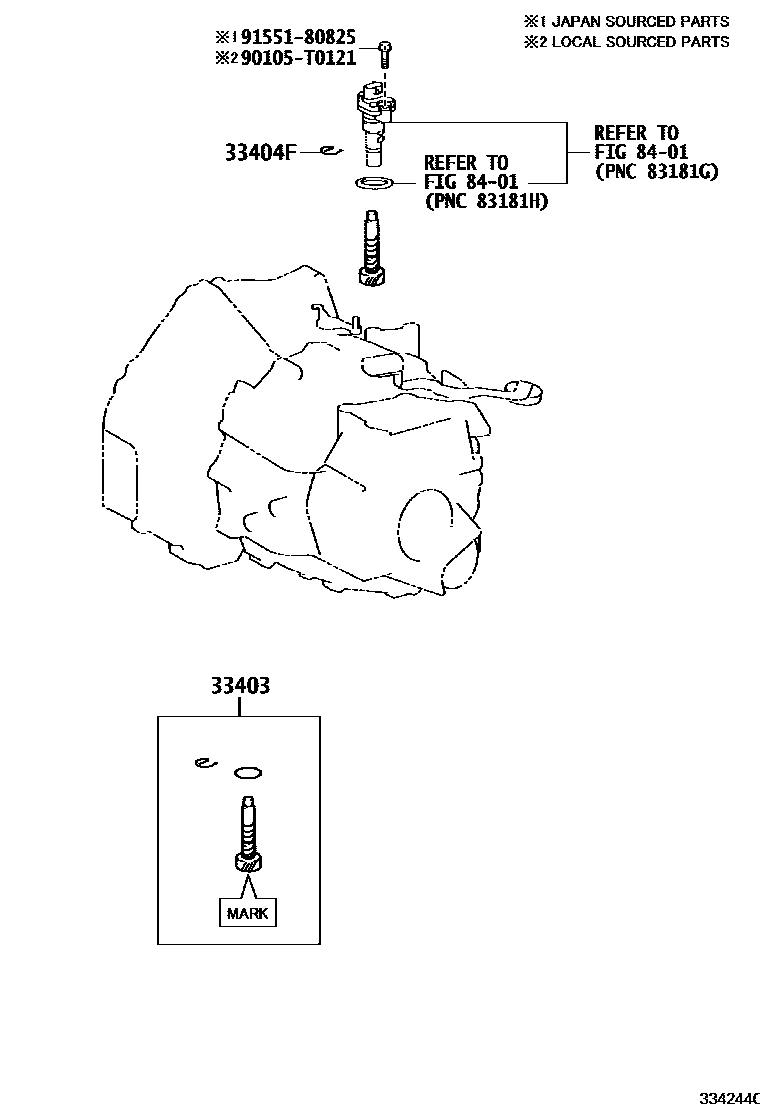

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19455iNUK15..G,STD201510-201609

N=30,MARK 30:35

main33403-19465iNUK15..G201108-201303

N=31,MARK 31:35

main33403-29395iNUK15..V201303-201504

N=29,MARK 29:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iNUK15..G201108-201303

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0121

main90105-T0121

9155180825

main91551-80825

5 parts on this diagram · 1 diagram in section
