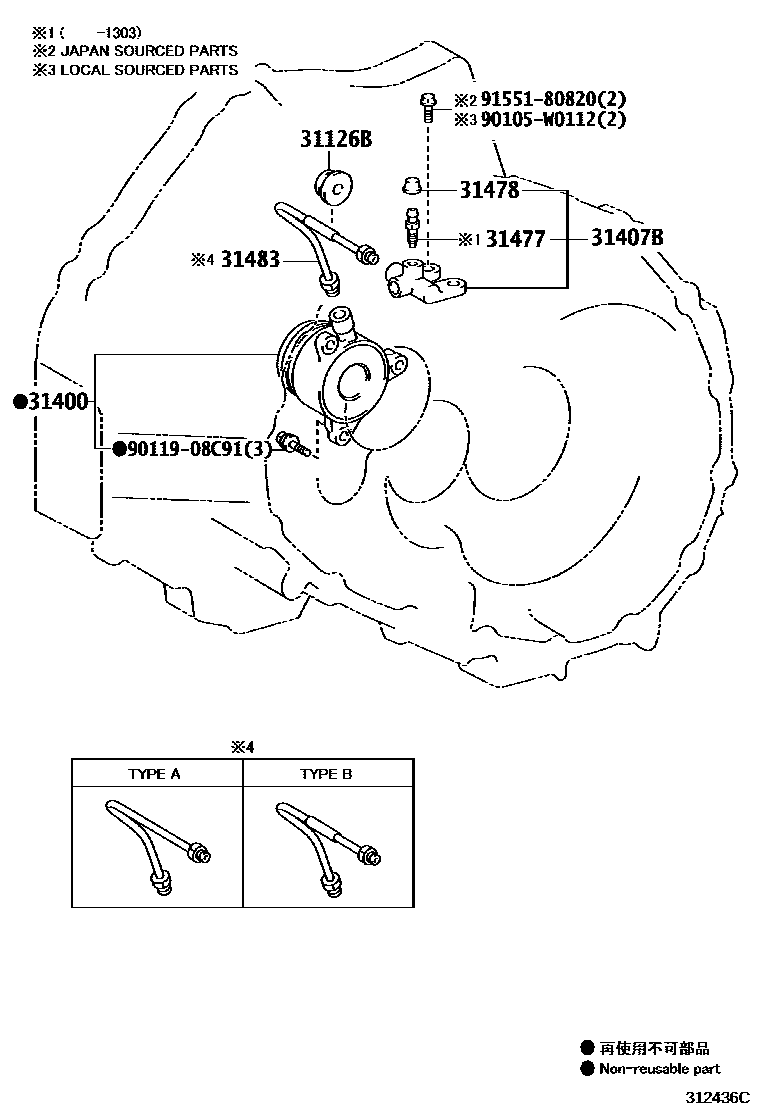

CLUTCH RELEASE CYLINDER

31126BBOOT, CLUTCH TUBE

main31126-0D080iNUK1#201602

*434

main31126-20090iNUK1#201303-201609

*201

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-09010iNUK1#201712

*434

main31400-59015iNUK1#201303-201509

*201

main31400-59025iNUK1#201509-201609

*201

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-52010iNUK1#201602

*434

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12130iNUK1#201108-201303

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNUK1#201108-201303

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-0D320iNUK1#201608

*434

main31482-52090iNUK1#201602-201608

*434,TYPE B:REF ILL.

90105W0112

main90105-W0112

9011908C91

main90119-08C91

9155180820

main91551-80820

9 parts on this diagram · 1 diagram in section
