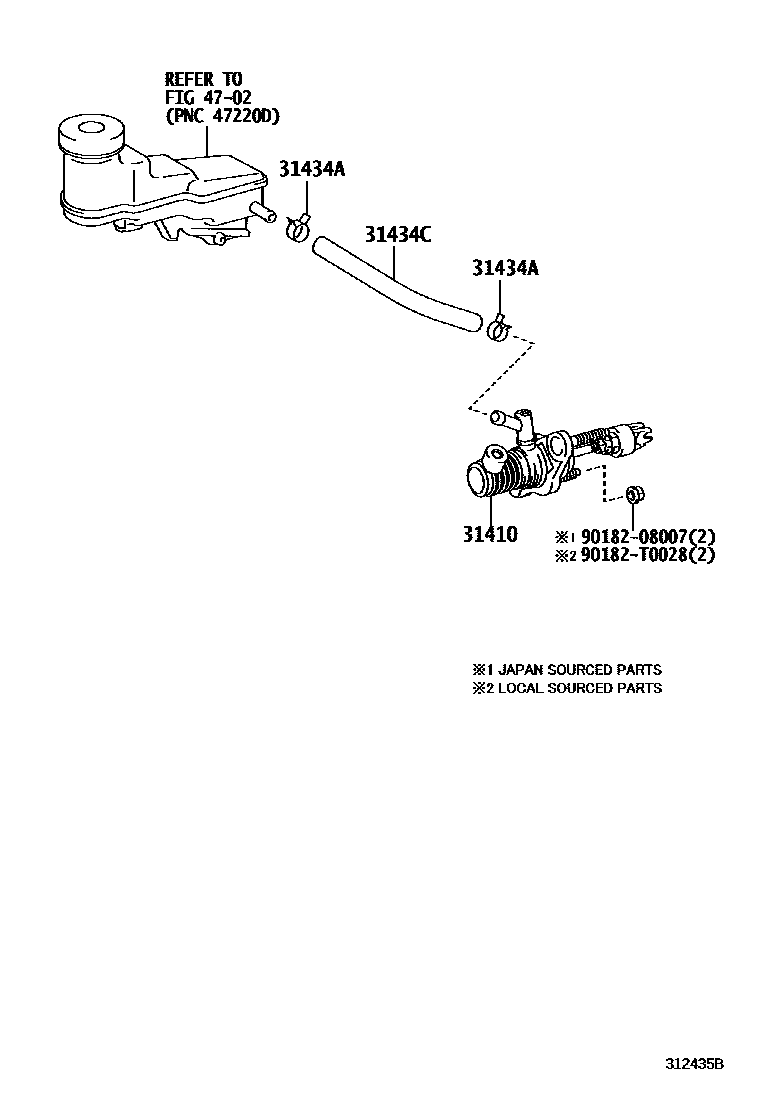

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12030iNUK1#201108-201303

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0052×2iNUK1#201808

main96136-41801×2iNUK1#201303-201808

31434CTUBE, CLUTCH RESERVOIR

main31434-0D010iNUK1#201108-201303

(L)

main31434-52140iNUK1#201108-201303

(J)

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9018208007

main90182-08007

90182T0028

main90182-T0028

6 parts on this diagram · 1 diagram in section
