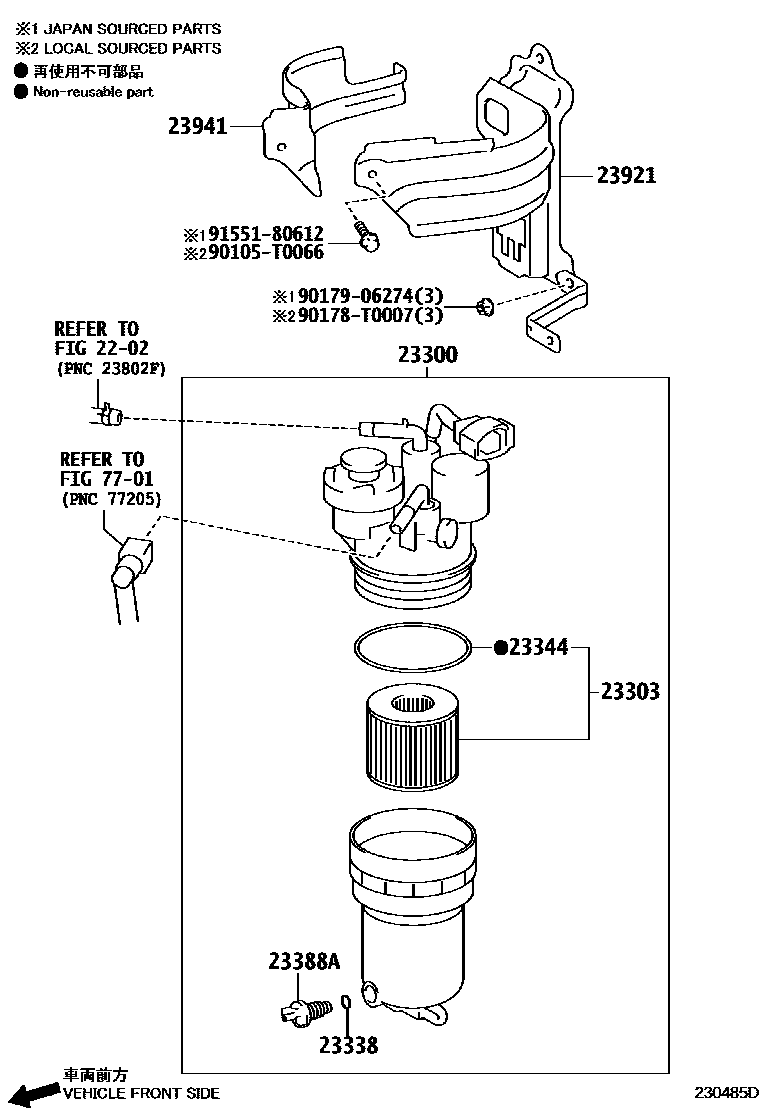

FUEL FILTER

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23300FILTER ASSY, FUEL

main23300-0N090i1NDTV..NUK1#201108-201110

main23300-0N091i1NDTV..NUK1#201110-201303

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-0N090i1NDTV..NUK1#201108-201303

23338GASKET(FOR WARNING SWITCH)

main23344-0L041i1NDTV..NUK1#201108-201303

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0N090i1NDTV..NUK1#201108-201303

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i1NDTV..NUK1#201108-201303

23921SUPPORT, FUEL FILTER

main23921-0N030i1NDTV..NUK1#201108-201303

23941PROTECTOR, FUEL FILTER, NO.1

main23941-0N010i1NDTV..NUK1#201108-201303

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90105T0066

main90105-T0066

90178T0007

main90178-T0007

9017906274

main90179-06274

9155180612

main91551-80612

13 parts on this diagram · 1 diagram in section
