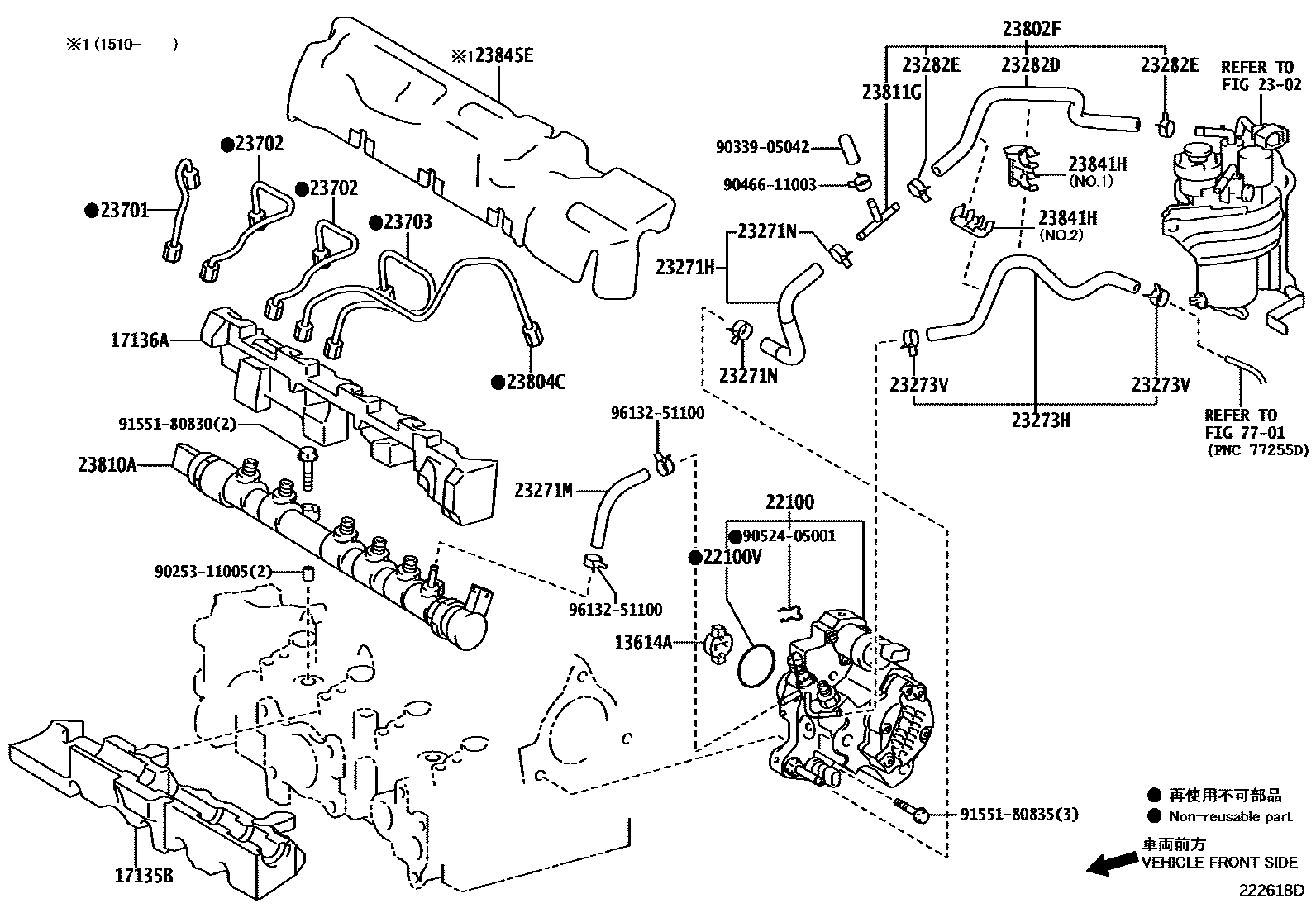

INJECTION PUMP ASSEMBLY
13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1
17135BINSULATOR, INTAKE MANIFOLD, NO.1
17136AINSULATOR, INTAKE MANIFOLD, NO.2
22100PUMP ASSY, INJECTION OR SUPPLY
(L)
(J)
22100VRING, O(FOR INJECTION PUMP)
2302FUEL FILTER
23271HHOSE, FUEL, NO.1
23271MHOSE, FUEL
23271NCLIP, HOSE
23273HHOSE, FUEL, NO.2
23273VCLIP(FOR FUEL HOSE NO.2)
23282DHOSE, FUEL, NO.4
23282ECLIP(FOR FUEL HOSE NO.4)
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23802FHOSE, FUEL
23804CPIPE SUB-ASSY, FUEL INLET
23811GPIPE, FUEL, NO.1
23841HCLAMP, FUEL HOSE
(L),NO.2
(L),NO.1
NO.1
NO.2
23845EINSULATOR, FUEL PIPE
7701FUEL TANK & TUBE
9025311005
main90253-11005
9033905042
main90339-05042
9046611003
main90466-11003
9052405001
main90524-05001
9155180830
main91551-80830
9155180835
main91551-80835
9613251100
main96132-51100
30 parts on this diagram · 1 diagram in section
