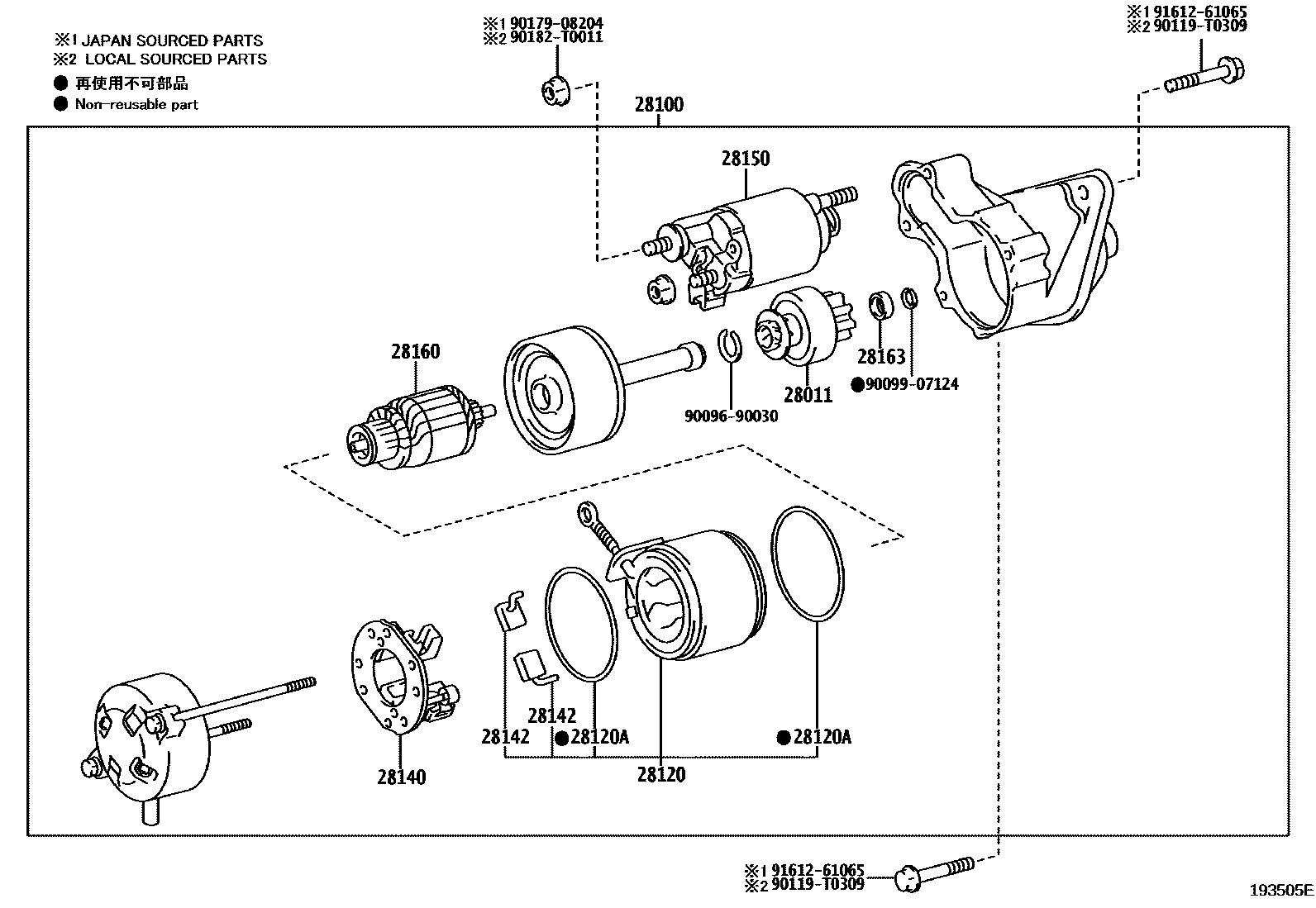

STARTER

0001 112V 0.8KW 0002 112V 0.8KW 0003 112V 1.3KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0Y050i2NRFE..NGK15201012-201303

main28011-0Y060i3NRFE..NGK10..IND201303-201401

main28011-10020i3NRFE..NGK10..IDN; 3NRFE..NGK10..IND201401

main28011-70020i2NRFE..NGK12,15201309

28100STARTER ASSY

main28100-0N080i1NDTV..NUK1#201108-201303

12V 1.3KW

main28100-0Y050i2NRFE..NGK15201012-201303

12V 0.8KW

main28100-0Y060i3NRFE..NGK10..IDN201012

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-0N080i1NDTV..NUK1#201108-201303

main28120-0Y060i3NRFE..NGK10201012-201401

main28120-40120i3NRFE..NGK10..IDN; 3NRFE..NGK10..IND201401

main28120-47120i2NRFE..NGK15201012-201303

28120ARING, O(FOR STARTER YOKE)

main90099-07124i1NDTV..NUK1#201108-201303

main90099-14092×2i2NRFE..NGK15201012-201303

28140HOLDER ASSY, STARTER BRUSH

main28140-0C070i2NRFE..NGK15201012-201303

main28140-37050i1NDTV..NUK1#201303

main28140-70020i2NRFE..NGK12,15201309

28142BRUSH, STARTER

main28142-70020×2i2NRFE..NGK15201012-201303

28150SWITCH ASSY, MAGNET STARTER

main28150-0N080i1NDTV..NUK1#201108-201303

main28150-0Y050i2NRFE..NGK12,15;3NRFE..NGK10..SUVG201309

main28150-0Y060i3NRFE..NGK10..IND201303-201401

28160ARMATURE ASSY, STARTER

main28160-0Y060i3NRFE..NGK10201012-201401

main28160-10020i3NRFE..NGK10..IDN; 3NRFE..NGK10..IND201401

main28160-31090i1NDTV..NUK1#201503

main28160-37060i1NDTV..NUK1#201303-201503

main28160-70021i2NRFE..NGK15201012-201303

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-0Y050i2NRFE..NGK12,15201303-201309

main28163-0Y060i3NRFE..NGK10..IND201303-201401

main28163-10021i3NRFE..NGK10..IDN; 3NRFE..NGK10..IND201401

main28163-33110i1NDTV..NUK1#201303

main28163-70020i2NRFE..NGK12,15201309

9009690030

main90096-90030

9009907124

main90099-07124

90119T0309

main90119-T0309

9017908204

main90179-08204

90182T0011

main90182-T0011

9161261065

main91612-61065

15 parts on this diagram · 3 diagrams in section
