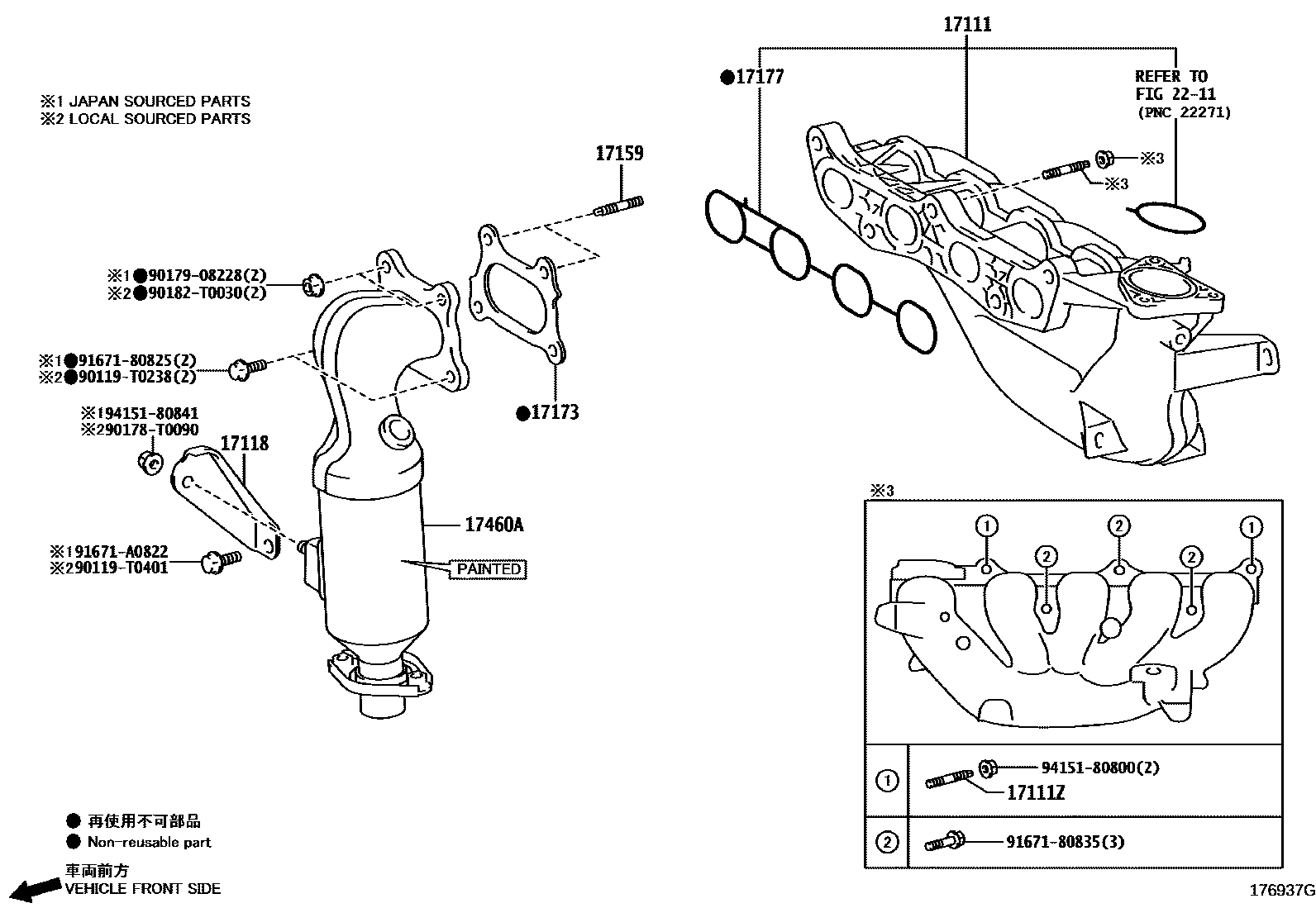

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17120-0Y010i2NRFE,3NRFE..NGK1#201209-201303

*289

main17120-47040i2NRFE,3NRFE..NGK1#201012-201202

*288

main17120-47070i2NRFE,3NRFE..NGK10,15..G,STD,V201202-201712

*288

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08060×2i2NRFE,3NRFE..NGK1#201209-201303

*289

17118STAY, MANIFOLD

main17118-33060i1NDTV..NUK1#201303

main17568-0Y020i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×2i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

*288

main90126-10033×8i1NDTV..NUK1#201108-201303

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Y010i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

main17173-33030i1NDTV..NUK1#201108-201303

main17173-33031i1NDTV..NUK1#201407

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-47030i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

*288

17460ACONVERTER ASSY, CATALYTIC W/PIPE

main17400-0Y010i3NRFE..NGK10..IDN201303-201402

PAINTED=RED

main17400-0Y070i2NRFE,3NRFE..NGK1#..IND,SA201303

main17400-0Y080i3NRFE..NGK10..IDN201303-201402

W/O(PAINTED)

main17400-0Y090i3NRFE..NGK10..IDN201402

NO PAINTED

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

90119T0238

main90119-T0238

90119T0401

main90119-T0401

90178T0090

main90178-T0090

9017908228

main90179-08228

90182T0030

main90182-T0030

9167180825

main91671-80825

9167180835

main91671-80835

91671A0822

main91671-A0822

9415180800

main94151-80800

9415180841

main94151-80841

18 parts on this diagram · 2 diagrams in section
