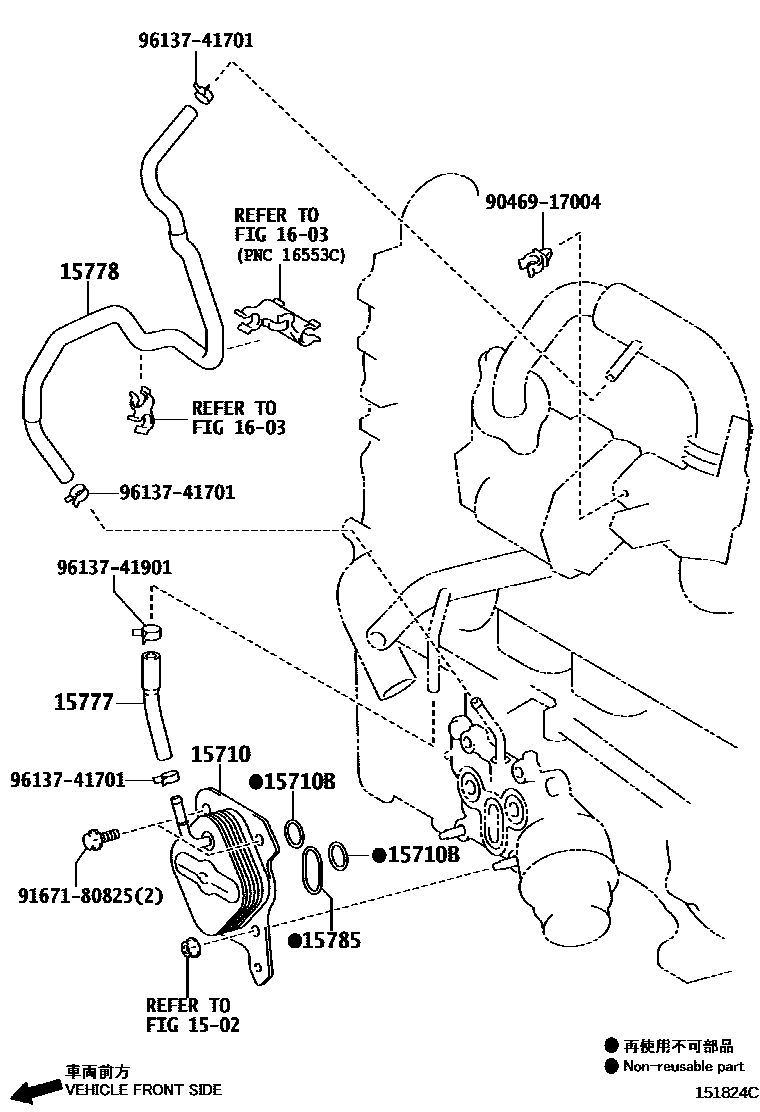

ENGINE OIL COOLER

1502OIL FILTER

→ Go to FIG 15-02

15710COOLER ASSY, OIL

main15710-33050i1NDTV..NUK1#201108-201303

15710BRING, O(FOR OIL COOLER)

main96723-35024×2i1NDTV..NUK1#201108-201303

15777HOSE, OIL COOLER

main15777-33010i1NDTV..NUK1#201108-201303

15778HOSE, OIL COOLER, NO.2

main15778-33040i1NDTV..NUK1#201108-201303

15785GASKET, OIL COOLER

main15785-33010i1NDTV..NUK1#201108-201303

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9046917004

main90469-17004

9167180825

main91671-80825

9613741701

main96137-41701

9613741901

main96137-41901

11 parts on this diagram · 1 diagram in section
