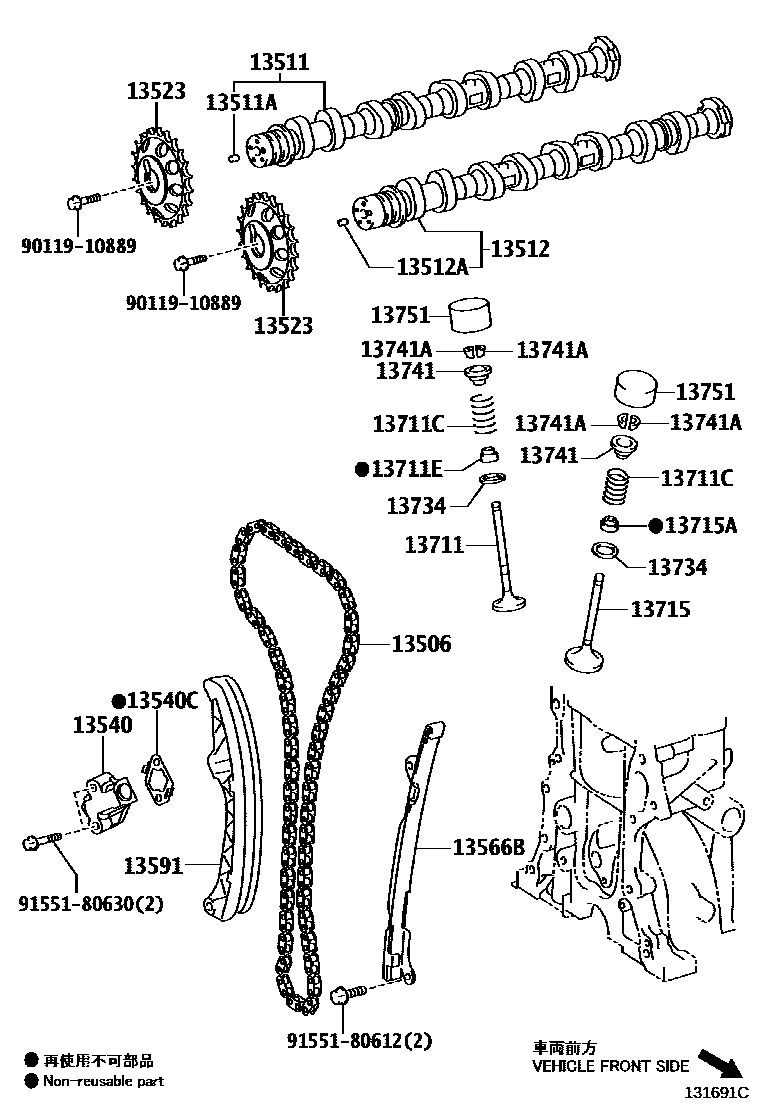

CAMSHAFT & VALVE

0001 1 0002 1

13506CHAIN SUB-ASSY

main13506-0Y010i2NRFE,3NRFE..NGK1#201209-201303

*289

main13506-33030i1NDTV..NUK1#201108-201303

main13506-47020i3NRFE..NGK10..IDN201303

*288

13511CAMSHAFT

main13501-33041i1NDTV..NUK1#201108-201112

main13501-33042i1NDTV..NUK1#201112-201303

main13501-47030i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

*288

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05027i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

L=8,OD=5; L=8,OD=5,*288

13512CAMSHAFT, NO.2

main13502-47020i2NRFE,3NRFE..NGK1#201012-201303

*288

13512APIN, STRAIGHT NO.2(FOR CAMSHAFT KNOCK)

main90250-05027i2NRFE,3NRFE..NGK1#201012-201303

L=8,OD=5,*288

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020×2i2NRFE,3NRFE..NGK1#201012-201303

*288

main13523-33030i1NDTV..NUK1#201303

13540TENSIONER ASSY, CHAIN, NO.1

main13540-33030i1NDTV..NUK1#201108-201303

main13540-47030i2NRFE,3NRFE..NGK1#..IND,SA201303-201510

main13540-47031i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201511

*288

13540CGASKET(FOR CHAIN TENSIONER)

main13552-0Y010i2NRFE,3NRFE..NGK1#..IND,SA201303

main13552-47020i3NRFE..NGK10..IDN201303

*288

13566BGUIDE, TIMING CHAIN

main13566-0W010i2NRFE,3NRFE..NGK1#201012-201303

*288

13591ARM, TIMING CHAIN TENSION

main13591-0W010i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

*288

13711VALVE, INTAKE

main13711-33031×4i1NDTV..NUK1#201303

main13711-47020×8i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

*288

main13711-47030×8i2NRFE..NGK15..IND201410

ENGINE-2NR-FE(HI DURABILITY)

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-25063×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

*288

main90501-32060×8i1NDTV..NUK1#201108-201303

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101×8i2NRFE,3NRFE..NGK1#201012-201303

*288

13715VALVE, EXHAUST

main13715-33041×4i1NDTV..NUK1#201303

main13715-47020×8i2NRFE,3NRFE..NGK1#201012-201303

*288

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112×8i2NRFE,3NRFE..NGK1#201012-201303

*288

13734SEAT, VALVE SPRING

main13734-33020×16i2NRFE,3NRFE..NGK1#201012-201303

*288

13741RETAINER, VALVE SPRING

main13741-22021×16i2NRFE,3NRFE..NGK1#201012-201303

*288

main13741-33020×8i1NDTV..NUK1#201108-201303

13741ALOCK, VALVE SPRING RETAINER

main90913-03021×16i1NDTV..NUK1#201303

main90913-03028×32i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

*288

13751LIFTER, VALVE

main13751-23030×16i2NRFE,3NRFE..NGK1#201209-201303

T=5.12,*289

main13751-23040×16i2NRFE,3NRFE..NGK1#201209-201303

T=5.14,*289

main13751-23050×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.16; T=5.16,*288

main13751-23060×16i2NRFE,3NRFE..NGK1#201012-201303

T=5.18,*288

main13751-23070×16i2NRFE,3NRFE..NGK1#201209-201303

T=5.20,*289

main13751-23080×16i2NRFE,3NRFE..NGK1#201209-201303

T=5.22,*289

main13751-23090×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.24; T=5.24,*288

main13751-23100×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.26; T=5.26,*288

main13751-23110×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.28; T=5.28,*288

main13751-23120×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.30; T=5.30,*288

main13751-23130×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.32; T=5.32,*288

main13751-23140×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.34; T=5.34,*288

main13751-23150×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.36; T=5.36,*288

main13751-23160×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.38; T=5.38,*288

main13751-23170×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.40; T=5.40,*288

main13751-23180×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.42; T=5.42,*288

main13751-23190×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.44; T=5.44,*288

main13751-23200×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.46; T=5.46,*288

main13751-23210×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.48; T=5.48,*288

main13751-23220×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.50; T=5.50,*288

main13751-23230×16i2NRFE,3NRFE..NGK1#201209-201303

T=5.52,*289

main13751-23240×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.54; T=5.54,*288

main13751-23250×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.56; T=5.56,*288

main13751-23260×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.58; T=5.58,*288

main13751-23270×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.60; T=5.60,*288

main13751-23280×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.62; T=5.62,*288

main13751-23290×16i2NRFE,3NRFE..NGK1#201012-201303

T=5.64,*288

main13751-23300×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.66; T=5.66,*288

main13751-23310×16i2NRFE,3NRFE..NGK1#..IND,SA; 3NRFE..NGK10..IDN201303

T=5.68; T=5.68,*288

9011910889

main90119-10889

9155180612

main91551-80612

9155180630

main91551-80630

22 parts on this diagram · 2 diagrams in section
