VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
*289
*288
*288
12204AGROMMET(FOR VENTILATION SYSTEM)
*288
*289
12261HOSE, VENTILATION
*289
*288
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
*288
*289
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
*288
*289
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12262DCLIP(FOR VENTILATION HOSE NO.2)

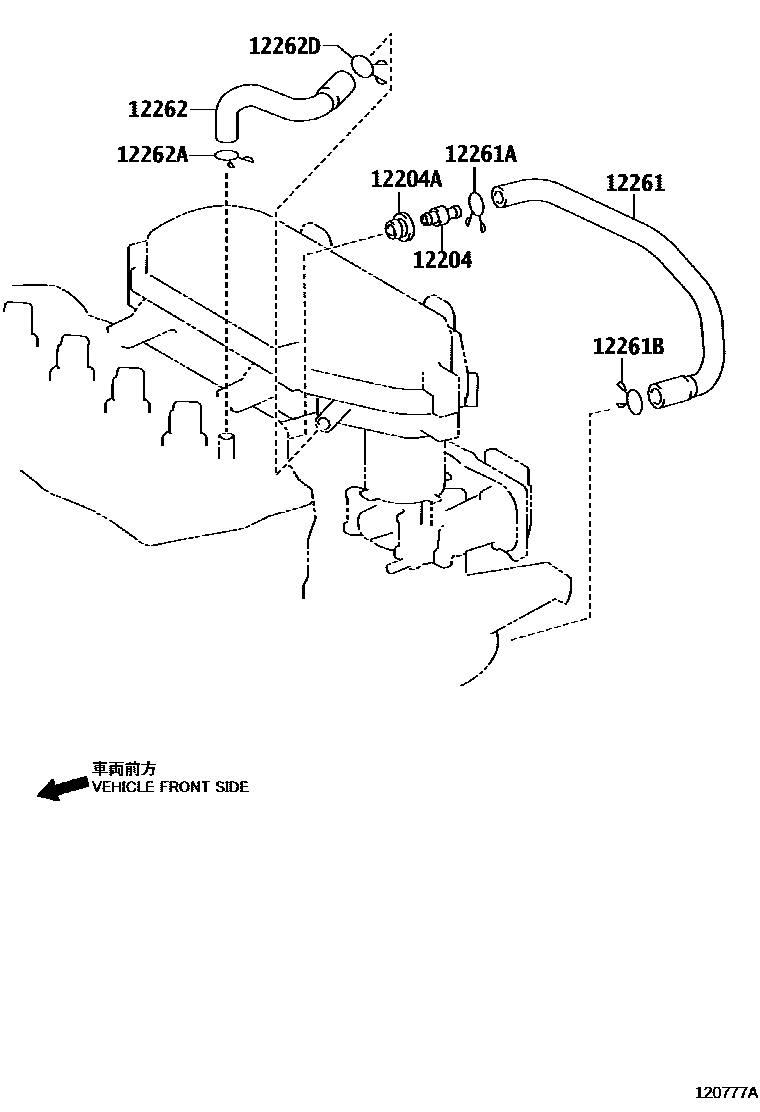

8 parts on this diagram · 2 diagrams in section
