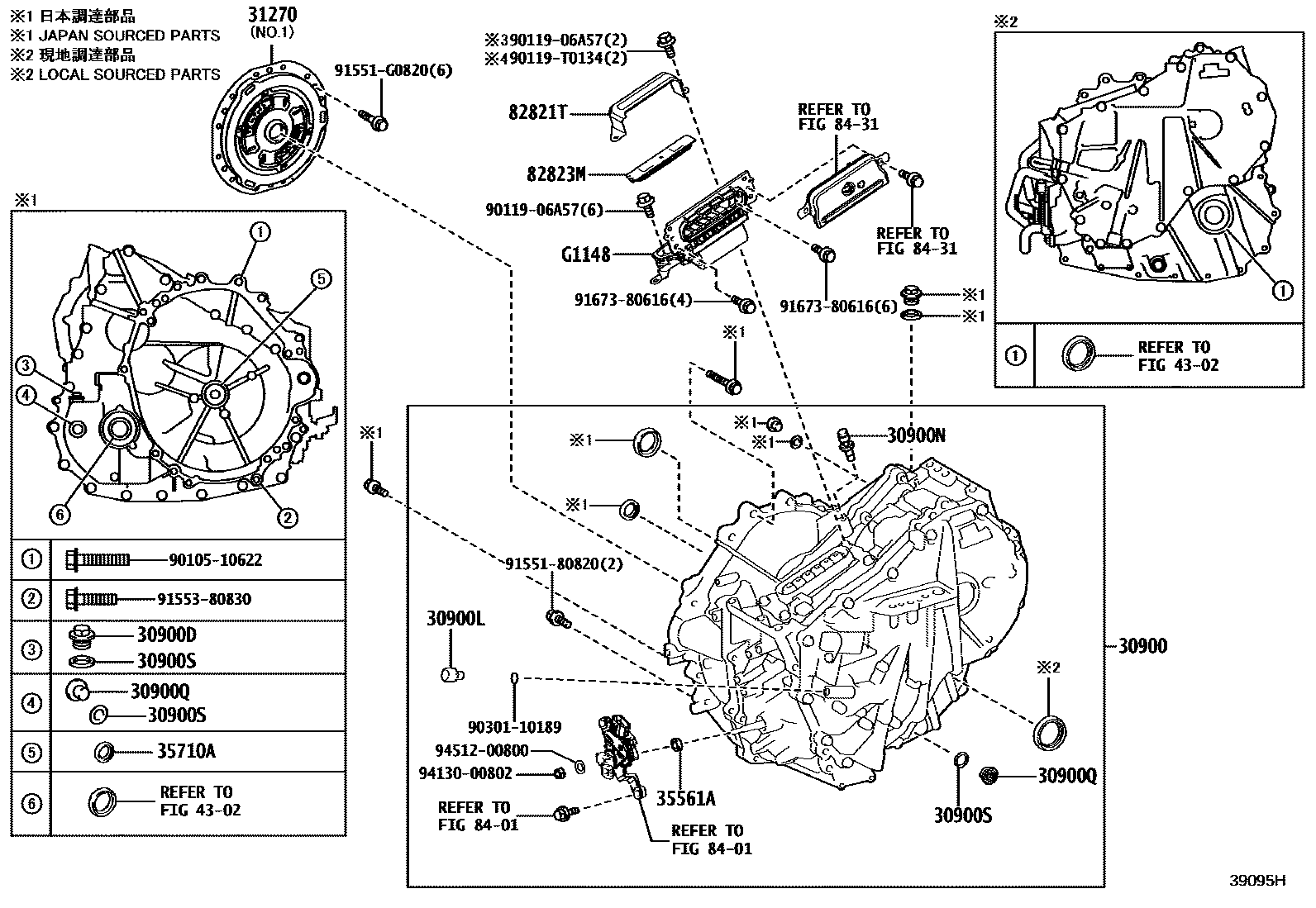

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
main90430-18008
main30900-0J010
main90341-18016
main90404-16031
main90341-18060
main90930-03201
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900LUNION(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900QPLUG, FILLER(HEV)
30900SGASKET, FILLER PLUG(HEV)
35561ASEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
9010510622
main90105-10622
9011906A57
main90119-06A57
90119T0134
main90119-T0134
9030110189
main90301-10189
9155180820
main91551-80820
91551G0820
main91551-G0820
9155380830
main91553-80830
9167380616
main91673-80616
9413000802
main94130-00802
9451200800
main94512-00800
22 parts on this diagram · 3 diagrams in section
