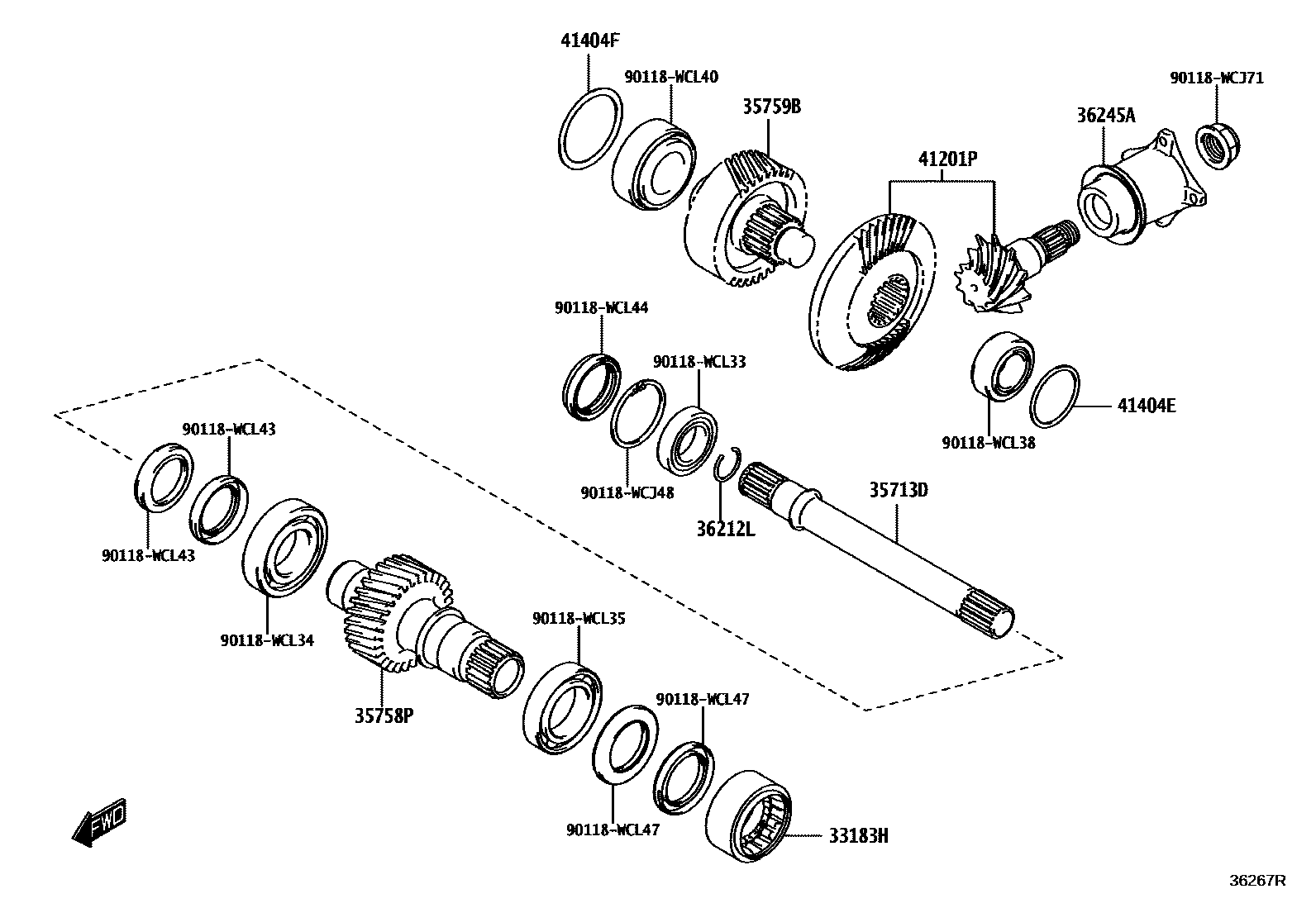

TRANSFER GEAR
33183HDAMPER, TRANSFER GEAR
POS.82
35713DSHAFT, INTERMEDIATE
POS.82
35758PGEAR, REDUCTION DRIVE
POS.82
35759BGEAR, REDUCTION DRIVEN
POS.82
36212LRING, SHAFT SNAP
POS.82
36245AFLANGE, TRANSFER OUTPUT SHAFT
POS.82
41201PGEAR KIT, TRANSFER
POS.82
41404ESHIM, TRANSFER INPUT, NO.1
POS.82,T=1.00
POS.82,T=1.05
POS.82,T=1.10
POS.82,T=1.15
POS.82,T=1.20
POS.82,T=1.25
POS.82,T=1.30
POS.82,T=1.35
POS.82,T=1.40
POS.82,T=1.45
41404FSHIM, TRANSFER INPUT, NO.2
POS.82,T=0.60
POS.82,T=0.65
POS.82,T=0.70
POS.82,T=0.75
POS.82,T=0.80
POS.82,T=0.85
POS.82,T=0.90
POS.82,T=0.95
POS.82,T=1.00
POS.82,T=1.05
90118WCJ48
main90118-WCJ48
90118WCJ71
main90118-WCJ71
90118WCL33
main90118-WCL33
90118WCL34
main90118-WCL34
90118WCL35
main90118-WCL35
90118WCL38
main90118-WCL38
90118WCL40
main90118-WCL40
90118WCL43
main90118-WCL43
90118WCL44
main90118-WCL44
90118WCL47
main90118-WCL47
19 parts on this diagram · 2 diagrams in section
