GEAR SHIFT FORK & LEVER SHAFT (MTM)

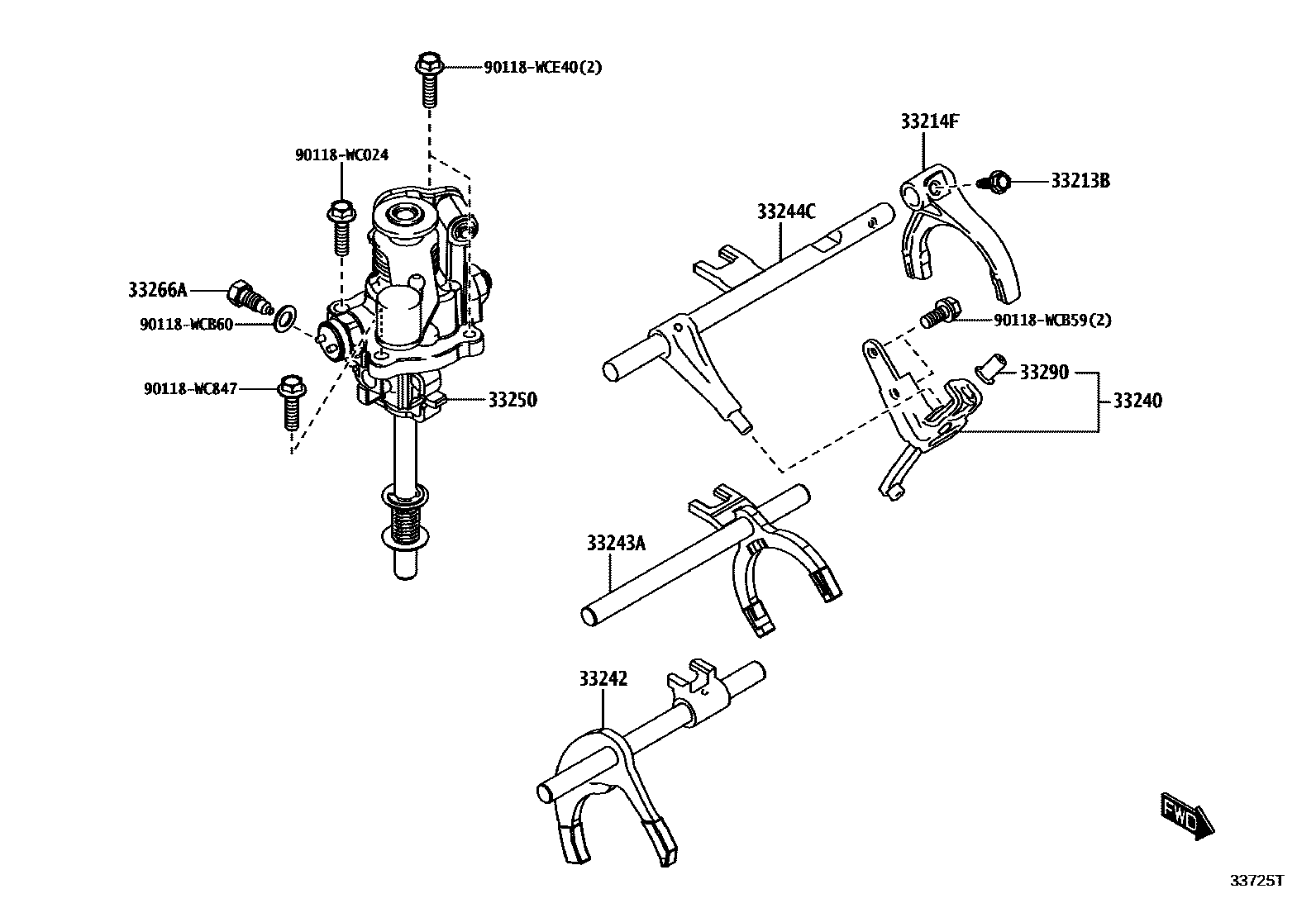

Parts diagram
33213BBOLT(FOR SHIFT FORK SET)
main90118-WCC03i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33214FFORK, 5TH SHIFT
main33214-WC001i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33240BRACKET ASSY, REVERSE SHIFT ARM
main33221-WC002i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33242SHAFT, GEAR SHIFT FORK, NO.1
main33205-WC003i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33243ASHAFT, GEAR SHIFT FORK, NO.2
main33243-WC002i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33244CSHAFT, REVERSE & 5TH SHIFT FORK
main33244-WC002i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33250SHAFT ASSY, SHIFT & SELECT LEVER
main33250-WC007i202401
POS.71; POS.73; POS.79; POS.80; POS.82
main33250-WC009i202401
POS.75; POS.83
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
main90118-WCC04i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33290BALL ASSY, LOCK, NO.1
main33223-WC001i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
90118WC024
90118WC847
90118WCB59
90118WCB60
90118WCE40

14 parts on this diagram · 1 diagram in section
