TRANSMISSION GEAR (MTM)

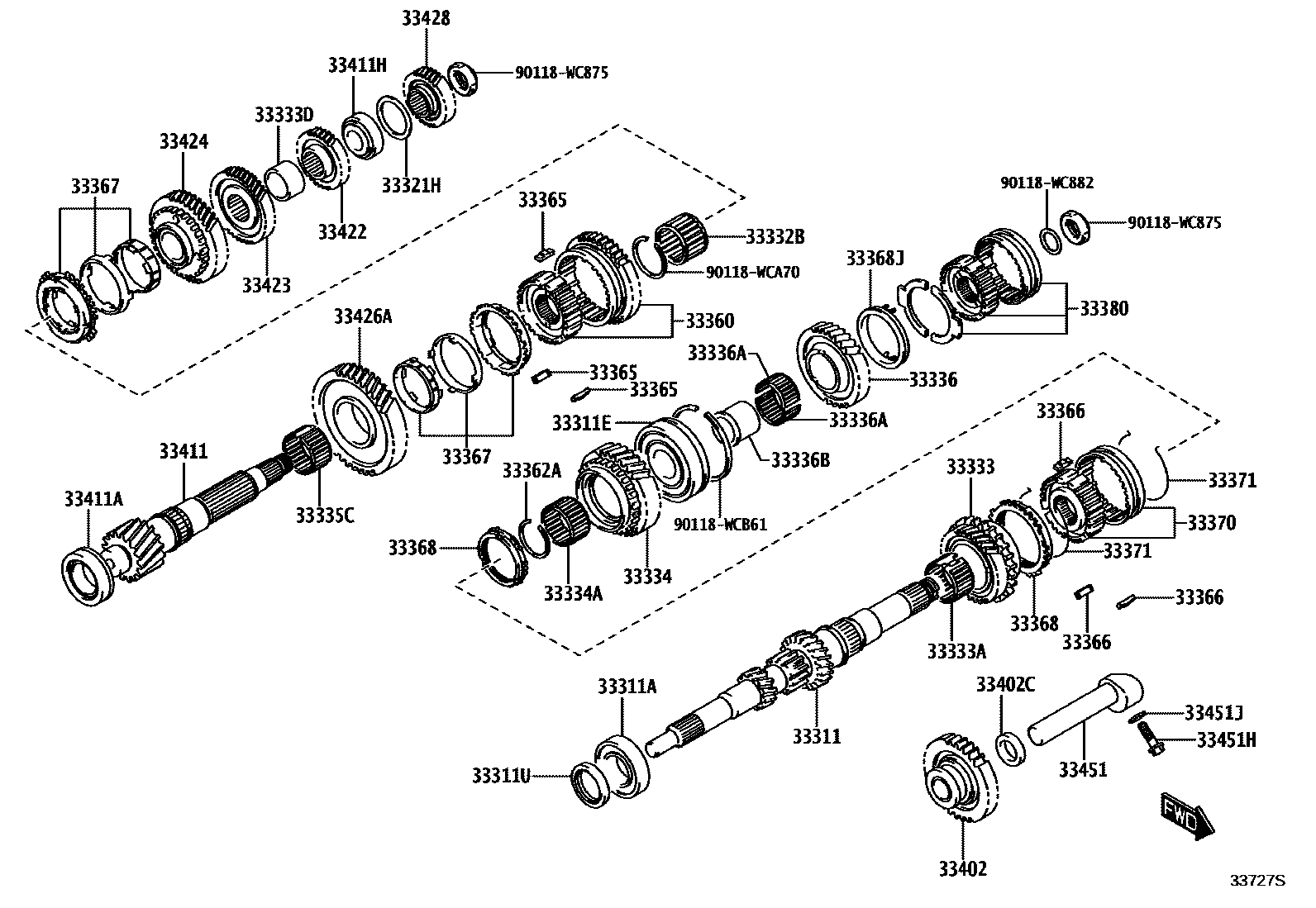

Parts diagram
33311SHAFT, INPUT
main33311-WC003i202401
POS.82
main33311-WC006i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33311ABEARING (FOR INPUT SHAFT FRONT)
main90118-WCA59i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
main90118-WCA60i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33311USEAL, OIL (FOR INPUT SHAFT)
main90118-WCA58i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
main90118-WC894i202401
T=0.65,POS.71; T=0.65,POS.73; T=0.65,POS.75; T=0.65,POS.79; T=0.65,POS.80; T=0.65,POS.82; T=0.65,POS.83
main90118-WC895i202401
T=0.70,POS.71; T=0.70,POS.73; T=0.70,POS.75; T=0.70,POS.79; T=0.70,POS.80; T=0.70,POS.82; T=0.70,POS.83
main90118-WC896i202401
T=0.75,POS.71; T=0.75,POS.73; T=0.75,POS.75; T=0.75,POS.79; T=0.75,POS.80; T=0.75,POS.82; T=0.75,POS.83
main90118-WC897i202401
T=0.80,POS.71; T=0.80,POS.73; T=0.80,POS.75; T=0.80,POS.79; T=0.80,POS.80; T=0.80,POS.82; T=0.80,POS.83
main90118-WC898i202401
T=0.85,POS.71; T=0.85,POS.73; T=0.85,POS.75; T=0.85,POS.79; T=0.85,POS.80; T=0.85,POS.82; T=0.85,POS.83
main90118-WC899i202401
T=0.90,POS.71; T=0.90,POS.73; T=0.90,POS.75; T=0.90,POS.79; T=0.90,POS.80; T=0.90,POS.82; T=0.90,POS.83
main90118-WCA00i202401
T=0.95,POS.71; T=0.95,POS.73; T=0.95,POS.75; T=0.95,POS.79; T=0.95,POS.80; T=0.95,POS.82; T=0.95,POS.83
main90118-WCA01i202401
T=1.00,POS.71; T=1.00,POS.73; T=1.00,POS.75; T=1.00,POS.79; T=1.00,POS.80; T=1.00,POS.82; T=1.00,POS.83
main90118-WCA02i202401
T=1.05,POS.71; T=1.05,POS.73; T=1.05,POS.75; T=1.05,POS.79; T=1.05,POS.80; T=1.05,POS.82; T=1.05,POS.83
main90118-WCA03i202401
T=1.10,POS.71; T=1.10,POS.73; T=1.10,POS.75; T=1.10,POS.79; T=1.10,POS.80; T=1.10,POS.82; T=1.10,POS.83
main90118-WCA04i202401
T=1.15,POS.71; T=1.15,POS.73; T=1.15,POS.75; T=1.15,POS.79; T=1.15,POS.80; T=1.15,POS.82; T=1.15,POS.83
main90118-WCA05i202401
T=1.20,POS.71; T=1.20,POS.73; T=1.20,POS.75; T=1.20,POS.79; T=1.20,POS.80; T=1.20,POS.82; T=1.20,POS.83
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90118-WCA66i202401
POS.82
main90118-WCA67i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33333GEAR, 3RD
main33034-WC002i202401
POS.82
main33034-WC005i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90118-WCA63i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33333DSPACER (FOR 3RD GEAR)
main33431-WC003i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33334GEAR, 4TH
main33035-WC003i202401
POS.82
main33035-WC006i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
main90118-WCB67i202401
POS.82
main90118-WCK56i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90118-WCA68i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33336GEAR, 5TH
main33036-WC003i202401
POS.82
main33036-WC008i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
main90118-WCA65×2i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33336BSPACER (FOR 5TH GEAR BEARING)
main90118-WCB66i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
main90118-WCK54i202401
POS.82
33360HUB ASSY, SYNCHRONIZER, NO.1
main33360-WC001i202401
POS.82
main33360-WC002i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
main90118-WCA71i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-WC002×3i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33394-WC001×3i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33367RING, SYNCHRONIZER, NO.1
main33367-WC003×2i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33368RING, SYNCHRONIZER, NO.2
main33368-WC002×2i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
main33369-WC004i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33370HUB ASSY, SYNCHRONIZER, NO.2
main33370-WC001i202401
POS.82
main33370-WC002i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-WC001×2i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33380HUB ASSY, SYNCHRONIZER, NO.3
main33380-WC001i202401
POS.82
main33380-WC002i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-WC002i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33402CWASHER, PLATE (FOR REVERSE IDLER)
main90118-WC891i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33411COUNTERSHAFT
main33321-WC006i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
main33321-WC007i202401
POS.82
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90118-WCA61i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
main90118-WCA62i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33422GEAR, COUNTERSHAFT 4TH SPEED
main33422-WC003i202401
POS.82
main33422-WC006i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33423GEAR, COUNTERSHAFT 3RD SPEED
main33423-WC002i202401
POS.82
main33423-WC006i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33424GEAR, COUNTERSHAFT 2ND SPEED
main33332-WC002i202401
POS.82
main33332-WC004i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33426AGEAR, COUNTERSHAFT, 1ST SPEED
main33335-WC002i202401
POS.82
main33335-WC004i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33428GEAR, COUNTERSHAFT 5TH
main33428-WC003i202401
POS.82
main33428-WC007i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.83
33451SHAFT, REVERSE IDLER GEAR
main33451-WC003i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
main90118-WC393i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
main90118-WC183i202401
POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83
90118WC875
main90118-WC875
90118WC882
main90118-WC882
90118WCA70
main90118-WCA70
90118WCB61
main90118-WCB61

42 parts on this diagram · 1 diagram in section
