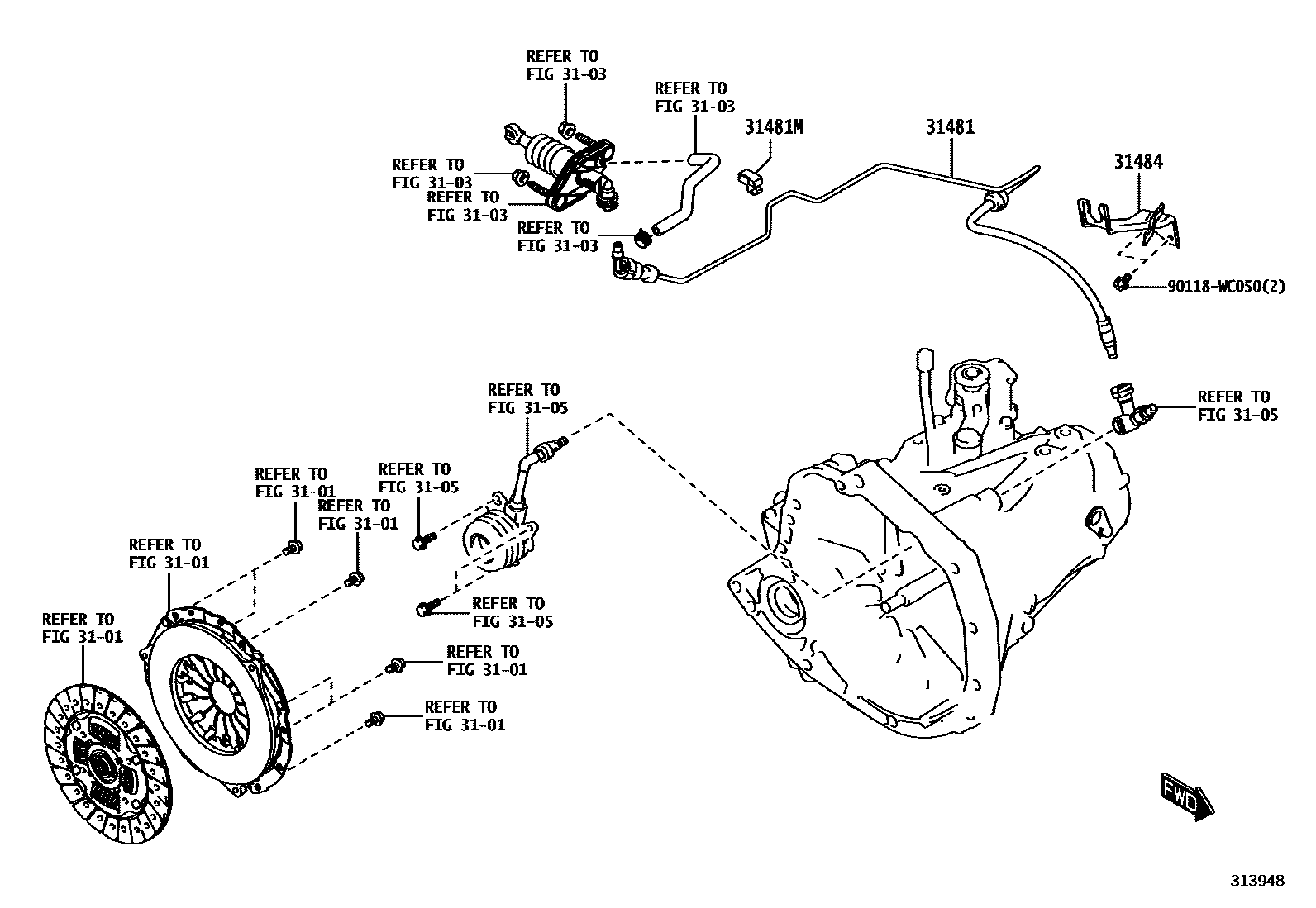

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3103CLUTCH MASTER CYLINDER

→ Go to FIG 31-03

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-WC014iFG23121; FG2312A; FG2312D; FG23224; FG232L4; FG43121; FG4312D202401

POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83

31481MCLAMP(FOR CLUTCH MASTER CYLINDER TUBE)

main90118-WCD28iFG23121; FG2312A; FG2312D; FG23224; FG232L4; FG43121; FG4312D202401

POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-WC003iFG23121; FG2312A; FG2312D; FG23224; FG232L4; FG43121; FG4312D202401

POS.71; POS.73; POS.75; POS.79; POS.80; POS.82; POS.83

90118WC050

main90118-WC050

7 parts on this diagram · 2 diagrams in section
