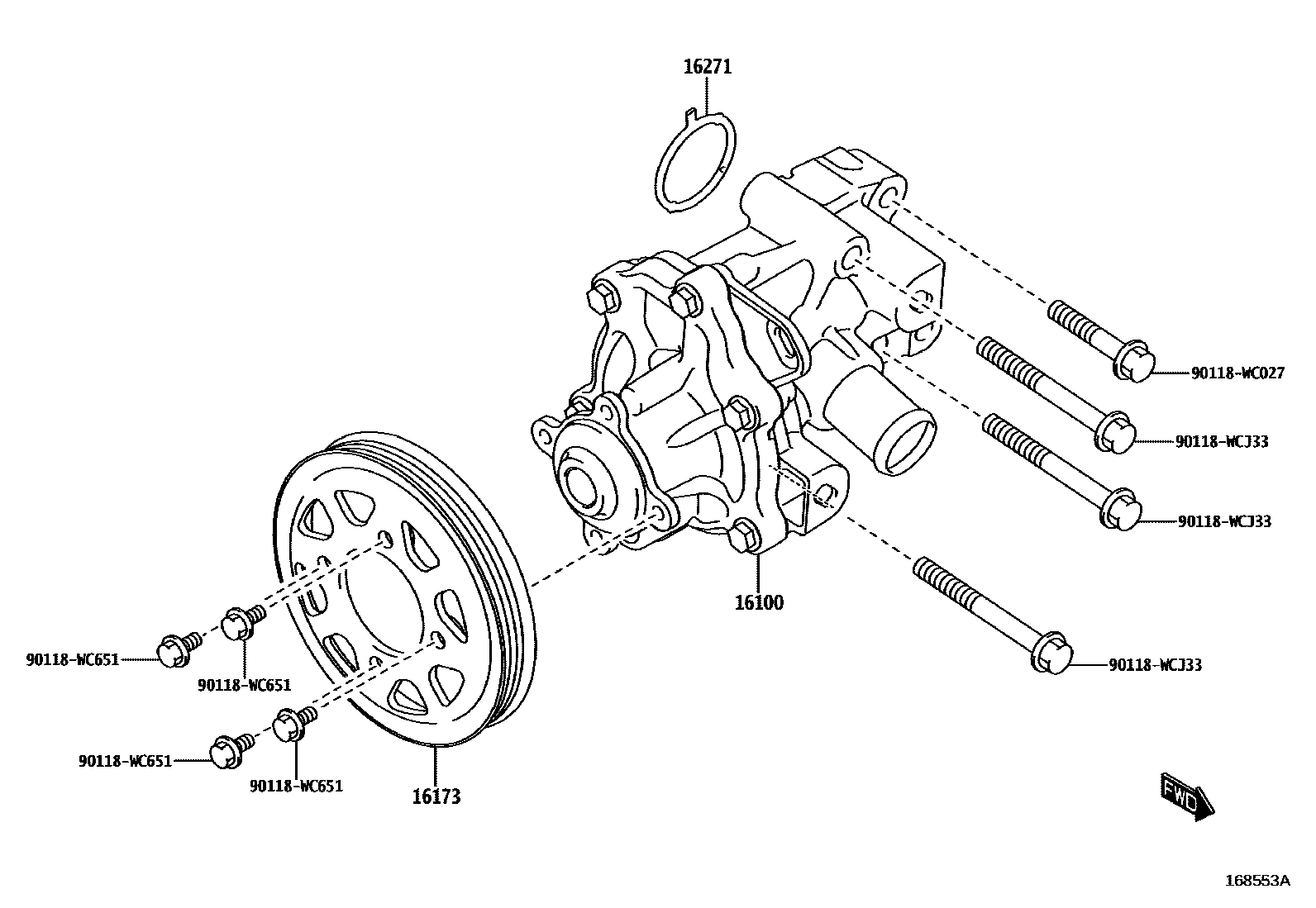

WATER PUMP

16100PUMP ASSY, ENGINE WATER

POS.71; POS.72; POS.73; POS.74; POS.75; POS.79; POS.80; POS.81; POS.82; POS.83

16173PULLEY, WATER PUMP

POS.71; POS.72; POS.73; POS.74; POS.75; POS.79; POS.80; POS.81; POS.82; POS.83

16271GASKET, WATER PUMP

POS.71; POS.72; POS.73; POS.74; POS.75; POS.79; POS.80; POS.81; POS.82; POS.83

90118WC027

90118WC651

90118WCJ33

6 parts on this diagram · 3 diagrams in section
