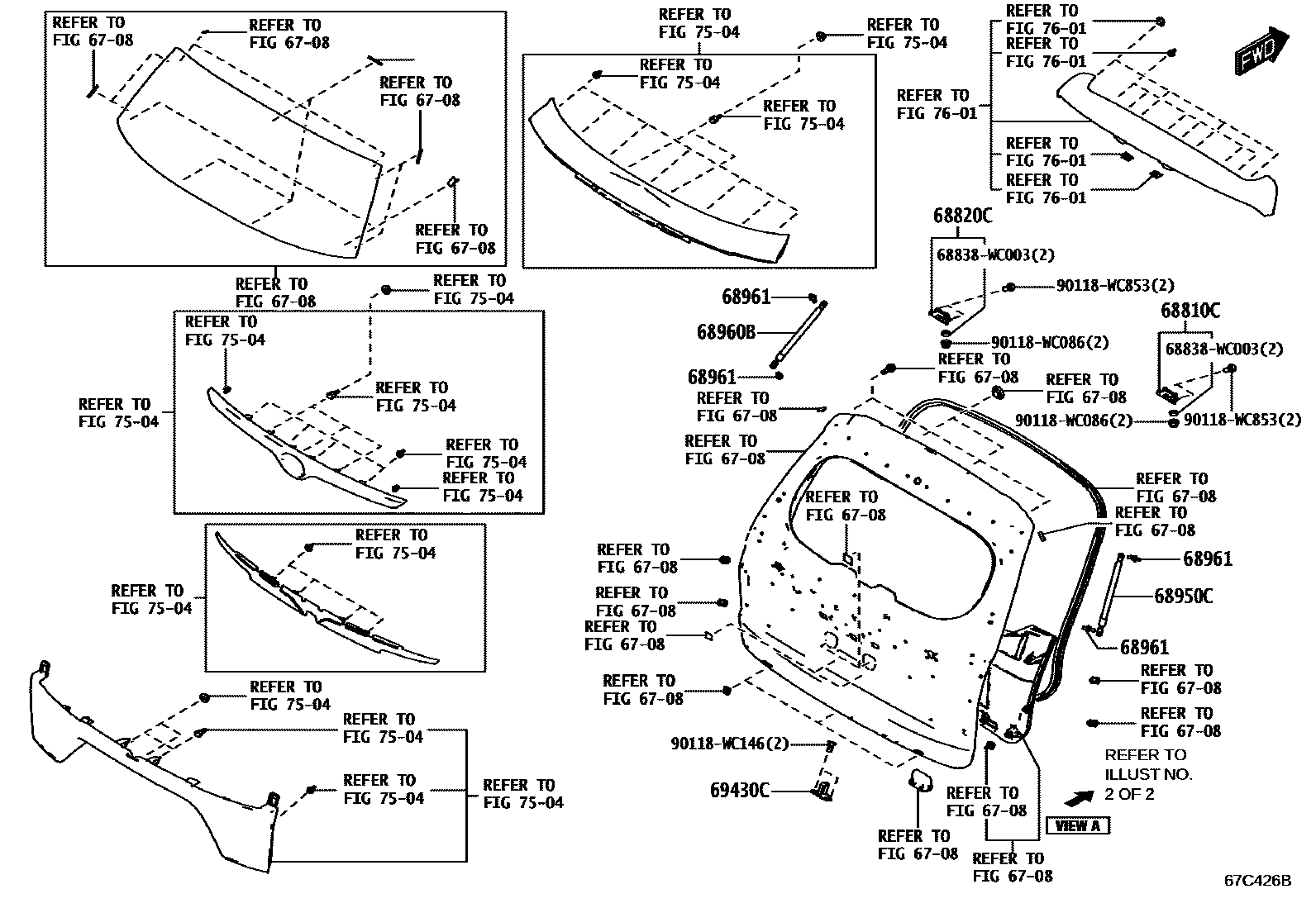

BACK DOOR LOCK & HANDLE
6708BACK DOOR PANEL & GLASS
68810CHINGE ASSY, BACK DOOR, RH
main68801-WC004iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
68820CHINGE ASSY, BACK DOOR, LH
main68801-WC004iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
68950CSTAY ASSY, BACK DOOR, RH
main68950-WC005iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
68960BSTAY ASSY, BACK DOOR, LH
main68960-WC004iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
68961BOLT, BACK DOOR STAY
main68961-WC003×4iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-WC004iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
7504REAR MOULDING
7601MUDGUARD & SPOILER
68838WC003PAD, BACK DOOR HINGE, NO.1
main68838-WC003
90118WC086
main90118-WC086
90118WC146
main90118-WC146
90118WC853
main90118-WC853
13 parts on this diagram · 3 diagrams in section
