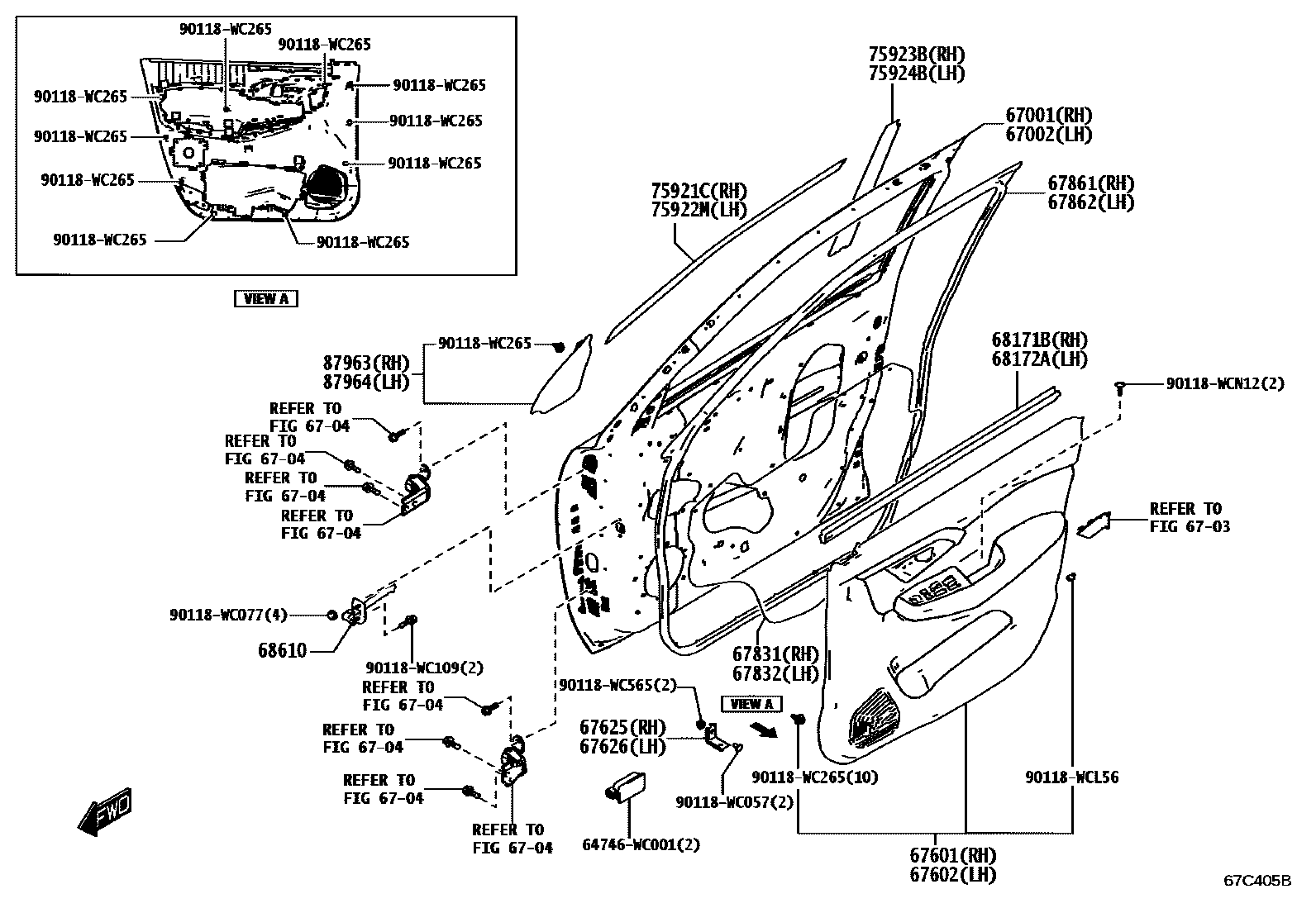

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-WC013iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-WC013iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
6703FRONT DOOR LOCK & HANDLE
6704FRONT DOOR WINDOW REGULATOR & HINGE
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
POS.35; POS.36; POS.37; POS.38; POS.40; POS.57; POS.58; POS.70
POS.56; POS.62
main67610-WC025iFG22121; FG2212Q; FG221X1; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212Q202304
POS.39; POS.42; POS.43; POS.46; POS.47; POS.59; POS.60; POS.61; POS.63; POS.64; POS.65; POS.66
POS.44; POS.45; POS.48; POS.49
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
POS.44; POS.45; POS.48; POS.49
POS.35; POS.36; POS.37; POS.38; POS.40; POS.57; POS.58; POS.70
POS.56; POS.62
main67620-WC026iFG22121; FG2212Q; FG221X1; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212Q202304
POS.39; POS.42; POS.43; POS.46; POS.47; POS.59; POS.60; POS.61; POS.63; POS.64; POS.65; POS.66
67625BRACKET, FRONT DOOR TRIM, RH
main90118-WCF61iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
67626BRACKET, FRONT DOOR TRIM, LH
main90118-WCF61iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-WC006iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67831-WC006iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-WC006iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-WC006iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68160-WC016iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68210-WC016iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
68610CHECK ASSY, FRONT DOOR
main68610-WC017×2iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
75921CTAPE, BLACK OUT, NO.1 RH
main90118-WCL26iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.36,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.37,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.38,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.39,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.40,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.42,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.43,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.44,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.45,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.46,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.47,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.48,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.49,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.56,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.57,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.58,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.59,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.60,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.61,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.62,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.63,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.64,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.65,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.66,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.70,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD
75922MTAPE, BLACK OUT, NO.1 LH
main75986-WC006iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.36,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.37,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.38,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.39,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.40,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.42,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.43,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.44,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.45,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.46,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.47,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.48,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.49,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.56,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.57,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.58,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.59,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.60,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.61,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.62,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.63,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.64,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.65,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.66,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.70,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD
75923BTAPE, BLACK OUT, NO.2 RH
main75921-WC014iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.36,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.37,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.38,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.39,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.40,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.42,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.43,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.44,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.45,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.46,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.47,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.48,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.49,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.56,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.57,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.58,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.59,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.60,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.61,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.62,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.63,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.64,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.65,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.66,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.70,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD
75924BTAPE, BLACK OUT, NO.2 LH
main75922-WC014iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.36,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.37,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.38,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.39,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.40,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.42,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.43,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.44,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.45,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.46,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.47,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.48,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.49,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.56,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.57,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.58,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.59,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.60,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.61,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.62,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.63,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.64,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.65,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.66,TRIM01,02,03,05,06,07,09,10,11,12&C9J ,ERD ,ESL ,ESY ,WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD; POS.70,TRIM01,02,03,05,06,07&WAJ ,WBE ,WBF ,WBG ,ZHJ ,ZQD
87963COVER, OUTER MIRROR INSTALL HOLE, RH
main87963-WC009iFG2212A; FG2212B; FG2212D; FG2212N; FG221XD; FG221XN; FG4212D; FG4212N; FGB219D; FGB219P202304
POS.35; POS.36; POS.37; POS.38; POS.40; POS.56; POS.57; POS.58; POS.62; POS.70
main87963-WC010iFG22121; FG2212Q; FG221X1; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212Q; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.39; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.59; POS.60; POS.61; POS.63; POS.64; POS.65; POS.66
87964COVER, OUTER MIRROR INSTALL HOLE, LH
main87964-WC009iFG2212A; FG2212B; FG2212D; FG2212N; FG221XD; FG221XN; FG4212D; FG4212N; FGB219D; FGB219P202304
POS.35; POS.36; POS.37; POS.38; POS.40; POS.56; POS.57; POS.58; POS.62; POS.70
main87964-WC010iFG22121; FG2212Q; FG221X1; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212Q; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.39; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.59; POS.60; POS.61; POS.63; POS.64; POS.65; POS.66
64746WC001COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-WC001
90118WC057
main90118-WC057
90118WC077
main90118-WC077
90118WC109
main90118-WC109
90118WC265
main90118-WC265
90118WC565
main90118-WC565
90118WCL56
main90118-WCL56
90118WCN12
main90118-WCN12
29 parts on this diagram · 5 diagrams in section
