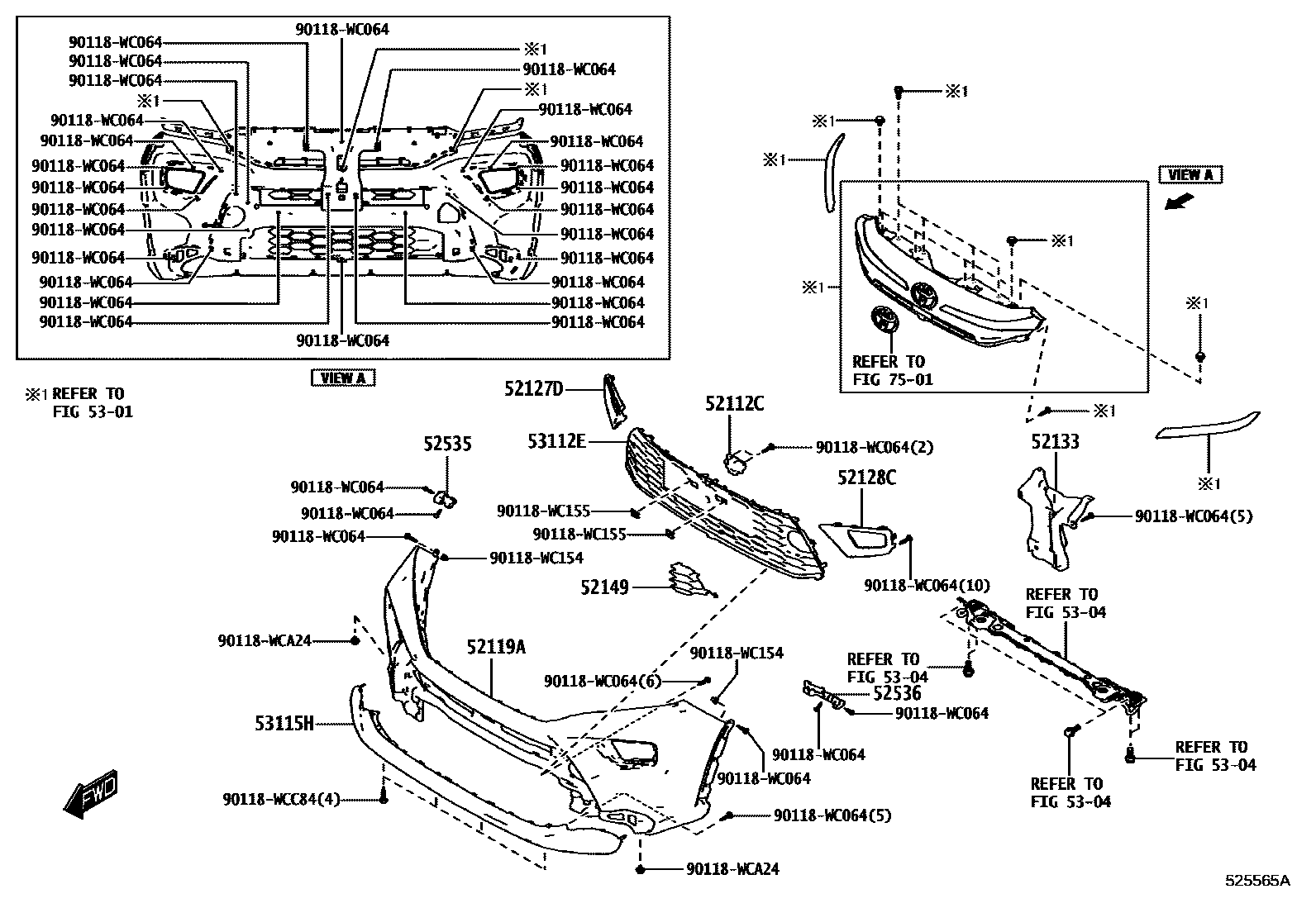

FRONT BUMPER & BUMPER STAY
52112CEXTENSION, FRONT BUMPER
main52113-WC002iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R202304
POS.35; POS.36; POS.37; POS.38; POS.40; POS.42; POS.44; POS.46; POS.48; POS.56; POS.57; POS.58; POS.59; POS.61; POS.62; POS.63; POS.66; POS.70
POS.39; POS.43; POS.45; POS.47; POS.49; POS.60; POS.64; POS.65
52119ACOVER, FRONT BUMPER
main52119-WC009iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
52127DCOVER, FRONT BUMPER HOLE, RH
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
main81481-WC012iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.63; POS.64; POS.65; POS.66; POS.70
52128CCOVER, FRONT BUMPER HOLE, LH
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
main81482-WC011iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.63; POS.64; POS.65; POS.66; POS.70
52133REINFORCEMENT, FRONT BUMPER
main52133-WC004iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
52149BRACKET, FRONT BUMPER, INNER
main53128-WC001iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
52535RETAINER, FRONT BUMPER SIDE, RH
main52535-WC009iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
52536RETAINER, FRONT BUMPER SIDE, LH
main52536-WC009iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
5301RADIATOR GRILLE
5304FRONT FENDER APRON & DASH PANEL
53112EGRILLE, RADIATOR, LOWER NO.1
main53112-WC005iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
53115HBRACKET, RADIATOR GRILLE
main52129-WC002iFG22121; FG2212A; FG2212B; FG2212D; FG2212N; FG2212Q; FG221X1; FG221XD; FG221XN; FG221XQ; FG22224; FG2222S; FG222L4; FG222LS; FG222X4; FG222XS; FG42121; FG4212D; FG4212N; FG4212Q; FGB219D; FGB219P; FGB2292; FGB229R; FGB229T; FGB229U202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.70
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
90118WC064
main90118-WC064
90118WC154
main90118-WC154
90118WC155
main90118-WC155
90118WCA24
main90118-WCA24
90118WCC84
main90118-WCC84
18 parts on this diagram · 12 diagrams in section
