OIL COOLER & TUBE (HEV OR BEV OR FCEV)

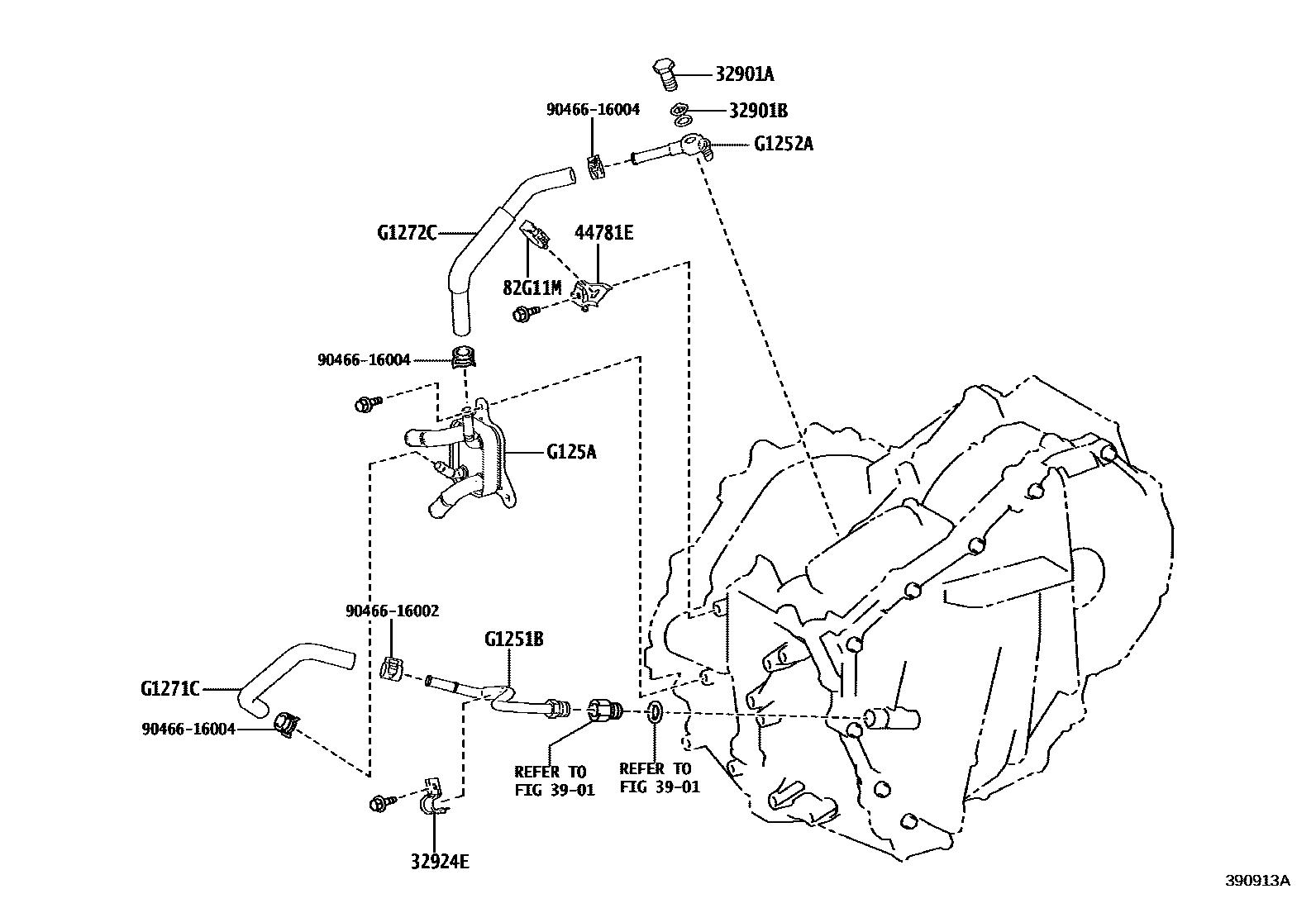

Parts diagram
32901ABOLT, UNION(FOR OIL COOLER)
main90401-12039i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
32901BGASKET(FOR OIL COOLER UNION)
main90430-12037i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
32924ECLAMP, OIL COOLER TUBE, NO.2
main32924-48010i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)
→ Go to FIG 39-01
44781EBRACKET, HOSE
main44781-0J010i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
82G11MCLAMP, WIRING HARNESS
main82711-51020i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
G1251BPIPE, MOTOR COOLING, NO.1
mainG1251K0010i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
G1252APIPE, MOTOR COOLING, NO.2
mainG12520J010i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
G125ACOOLER, MOTOR COOLING
mainG125A0D010i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
G1271CHOSE, MOTOR COOLING, NO.1
mainG1271K0010i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
G1272CHOSE, MOTOR COOLING, NO.2
mainG12720J010i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
9046616002
main90466-16002
9046616004
main90466-16004

13 parts on this diagram · 1 diagram in section
