SHIFT LEVER & RETAINER

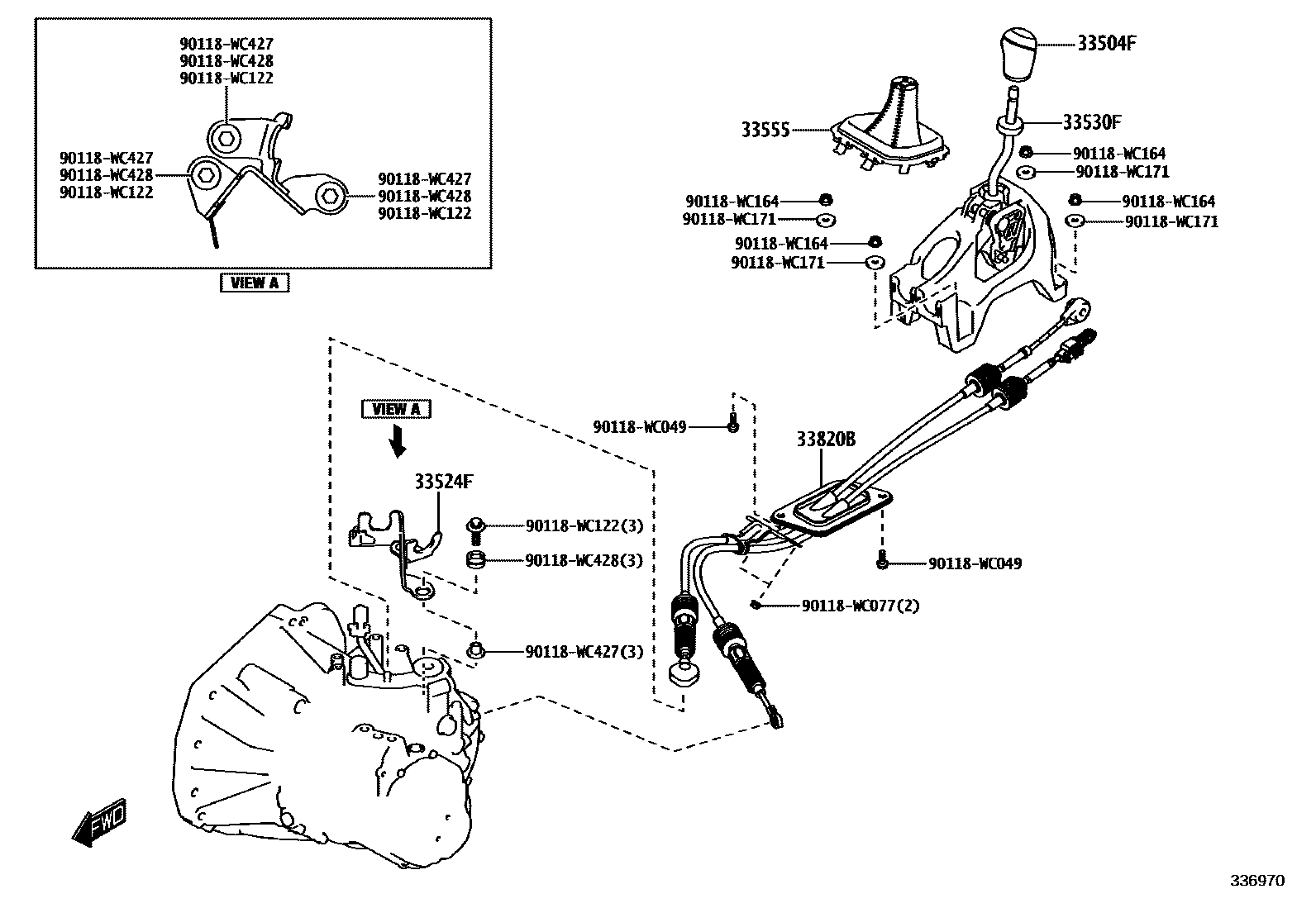

Parts diagram
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-WC014i202304
POS.39; POS.46; POS.47; POS.59; POS.60; POS.61; POS.65; POS.66
main33504-WC015i202304
POS.35; POS.36; POS.38; POS.57; POS.58; POS.70
main33504-WC017i202304
POS.37; POS.40; POS.42; POS.43; POS.44; POS.45; POS.48; POS.49; POS.56; POS.62; POS.63; POS.64
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
main33524-WC002i202304
POS.35; POS.36; POS.38; POS.39; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.65; POS.66; POS.70
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
main33530-WC029i202304
POS.35; POS.36; POS.38; POS.39; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.65; POS.66; POS.70
main33530-WC038i202307
POS.50; POS.51; POS.67; POS.68; POS.69
main33530-WC041i202304
POS.37; POS.40; POS.42; POS.43; POS.63; POS.64
33555BOOT, SHIFT LEVER
main58808-WC014i202304
POS.35; POS.36; POS.38; POS.39; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.65; POS.66; POS.70
main58808-WC015i202304
POS.37; POS.40; POS.42; POS.43; POS.44; POS.45; POS.48; POS.49; POS.56; POS.62; POS.63; POS.64
33820BCABLE ASSY, TRANSMISSION CONTROL
main33820-WC011i202304
POS.37; POS.40; POS.42; POS.43; POS.63; POS.64
main33820-WC012i202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
main33820-WC013i202304
POS.35; POS.36; POS.38; POS.39; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.65; POS.66; POS.70
90118WC049
90118WC077
90118WC122
90118WC164
90118WC171
90118WC427
90118WC428

12 parts on this diagram · 4 diagrams in section
