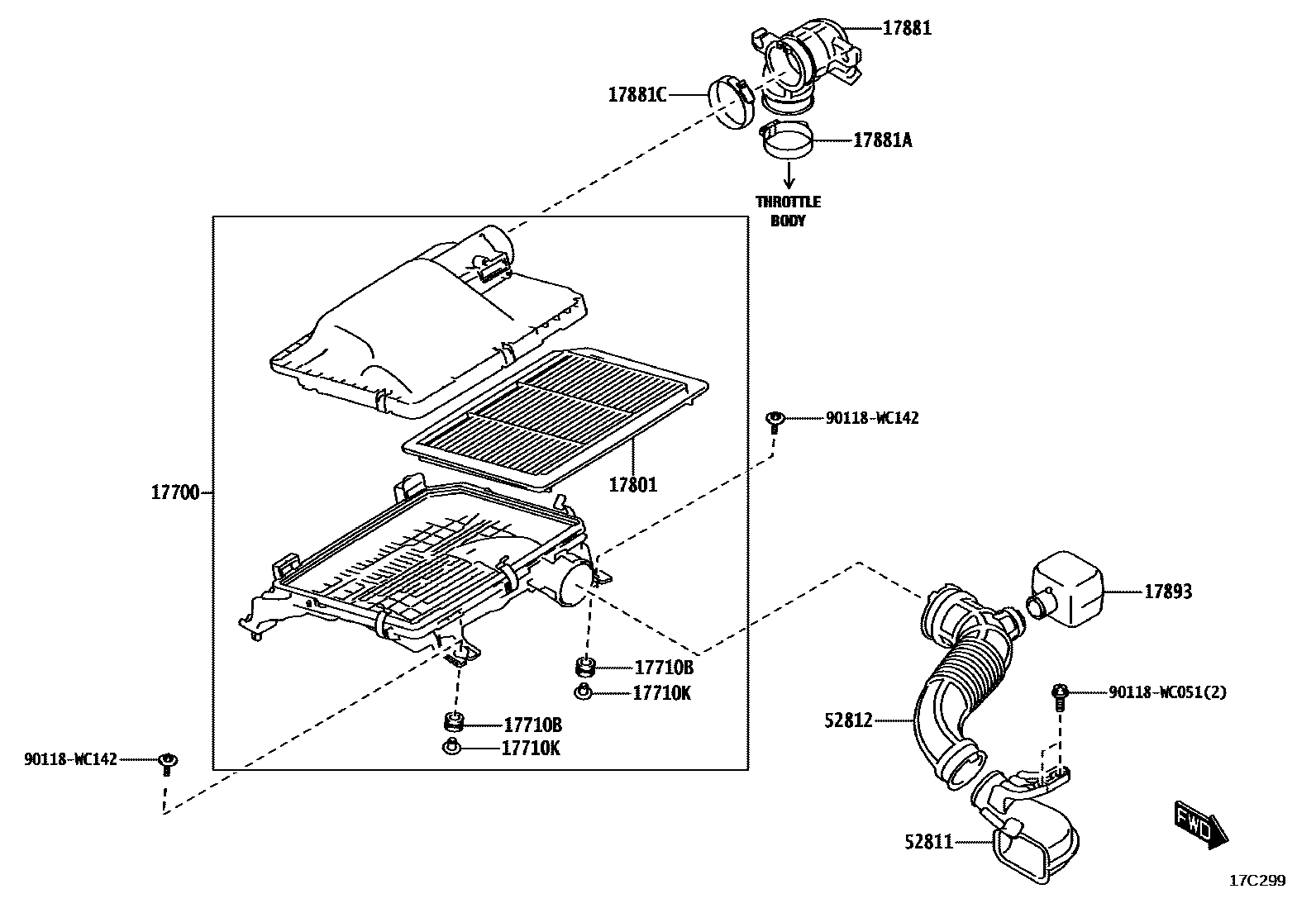

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17700CLEANER ASSY, AIR

main17700-WC005

main17700-WC006

17710BGROMMET

17710KCOLLAR(FOR AIR CLEANER)

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-WC004

main17801-WC005

17881HOSE, AIR CLEANER, NO.1

main17881-WC004

main17881-WC005

main90118-WC325

main90118-WC814

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

17893RESONATOR, INTAKE AIR

main17893-WC001

main17893-WC002

52811DUCT, COOL AIR INTAKE, NO.1

main52811-WC008

main52811-WC009

52812DUCT, COOL AIR INTAKE, NO.2

main52812-WC007

main52812-WC008

90118WC051

main90118-WC051

90118WC142

main90118-WC142

12 parts on this diagram · 6 diagrams in section
