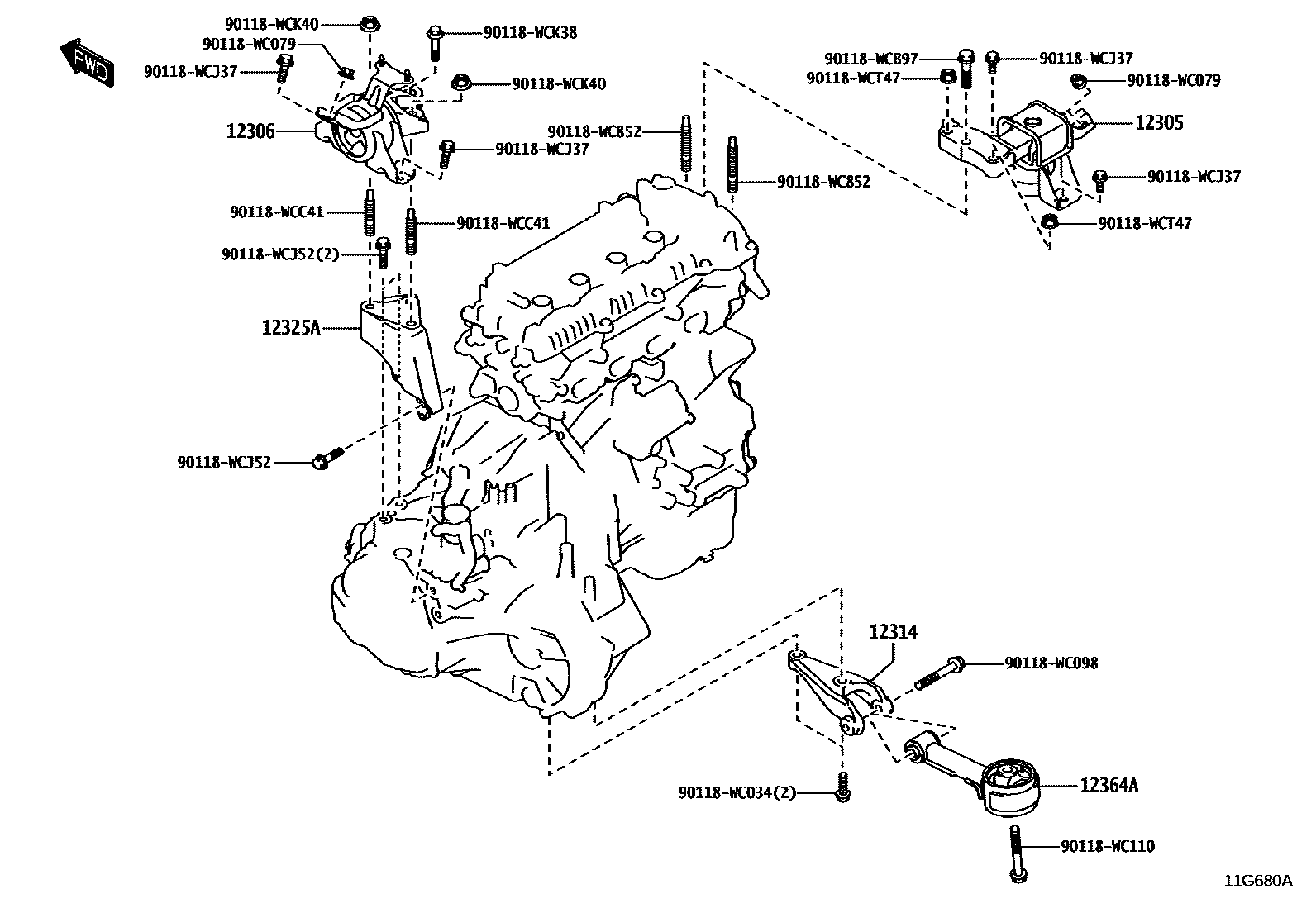

MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
main12305-WC008iK15CC..FG42121; K15CC..FG4212D; K15CC..FG4212N; K15CC..FG4212Q; K15CM..FG22121; K15CM..FG2212A; K15CM..FG2212B; K15CM..FG2212D; K15CM..FG2212N; K15CM..FG2212Q; K15CM..FG221X1; K15CM..FG221XD; K15CM..FG221XN; K15CM..FG221XQ; K15CM..FG22224; K15CM..FG2222S; K15CM..FG222L4; K15CM..FG222LS; K15CM..FG222X4; K15CM..FG222XS202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.63; POS.64; POS.65; POS.66; POS.70
main12305-WC009iM15D..FGB219D; M15D..FGB219P; M15D..FGB2292; M15D..FGB229R; M15D..FGB229T; M15D..FGB229U202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
main12306-WC010iK15CC..FG42121; K15CC..FG4212D; K15CC..FG4212N; K15CC..FG4212Q; K15CM..FG22121; K15CM..FG2212A; K15CM..FG2212B; K15CM..FG2212D; K15CM..FG2212N; K15CM..FG2212Q; K15CM..FG221X1; K15CM..FG221XD; K15CM..FG221XN; K15CM..FG221XQ; K15CM..FG22224; K15CM..FG2222S; K15CM..FG222L4; K15CM..FG222LS; K15CM..FG222X4; K15CM..FG222XS202304
POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.42; POS.43; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.63; POS.64; POS.65; POS.66; POS.70
main12306-WC011iM15D..FGB219D; M15D..FGB219P; M15D..FGB2292; M15D..FGB229R; M15D..FGB229T; M15D..FGB229U202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
12314BRACKET, ENGINE LATERAL CONTROL ROD
main12313-WC008iK15CC..FG42121; K15CC..FG4212D; K15CC..FG4212N; K15CC..FG4212Q; K15CM..FG22121; K15CM..FG2212A; K15CM..FG2212B; K15CM..FG2212D; K15CM..FG2212N; K15CM..FG2212Q; K15CM..FG22224; K15CM..FG2222S; K15CM..FG222L4; K15CM..FG222LS202304
POS.35; POS.36; POS.38; POS.39; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.65; POS.66; POS.70
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
main12325-WC002iK15CC..FG42121; K15CC..FG4212D; K15CC..FG4212N; K15CC..FG4212Q; K15CM..FG22121; K15CM..FG2212A; K15CM..FG2212B; K15CM..FG2212D; K15CM..FG2212N; K15CM..FG2212Q; K15CM..FG22224; K15CM..FG2222S; K15CM..FG222L4; K15CM..FG222LS202304
POS.35; POS.36; POS.38; POS.39; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.65; POS.66; POS.70
main12325-WC008iK15CM..FG221X1; K15CM..FG221XD; K15CM..FG221XN; K15CM..FG221XQ; K15CM..FG222X4; K15CM..FG222XS202304
POS.37; POS.40; POS.42; POS.43; POS.63; POS.64
12364AROD, ENGINE LATERAL CONTROL
main12363-WC007iK15CC..FG42121; K15CC..FG4212D; K15CC..FG4212N; K15CC..FG4212Q; K15CM..FG22121; K15CM..FG2212A; K15CM..FG2212B; K15CM..FG2212D; K15CM..FG2212N; K15CM..FG2212Q; K15CM..FG22224; K15CM..FG2222S; K15CM..FG222L4; K15CM..FG222LS202304
POS.35; POS.36; POS.38; POS.39; POS.46; POS.47; POS.57; POS.58; POS.59; POS.60; POS.61; POS.65; POS.66; POS.70
main12363-WC008iK15CM..FG221X1; K15CM..FG221XD; K15CM..FG221XN; K15CM..FG221XQ; K15CM..FG222X4; K15CM..FG222XS202304
POS.37; POS.40; POS.42; POS.43; POS.63; POS.64
main12363-WC009iM15D..FGB219D; M15D..FGB219P; M15D..FGB2292; M15D..FGB229R; M15D..FGB229T; M15D..FGB229U202304
POS.44; POS.45; POS.48; POS.49; POS.56; POS.62
90118WC034
main90118-WC034
90118WC079
main90118-WC079
90118WC098
main90118-WC098
90118WC110
main90118-WC110
90118WC852
main90118-WC852
90118WCB97
main90118-WCB97
90118WCC41
main90118-WCC41
90118WCJ37
main90118-WCJ37
90118WCJ52
main90118-WCJ52
90118WCK38
main90118-WCK38
90118WCK40
main90118-WCK40
90118WCT47
main90118-WCT47
17 parts on this diagram · 4 diagrams in section
